Home >> Chevrolet >> 2004 >> Aveo L4-1.6L VIN 6 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Backfire

Backfire

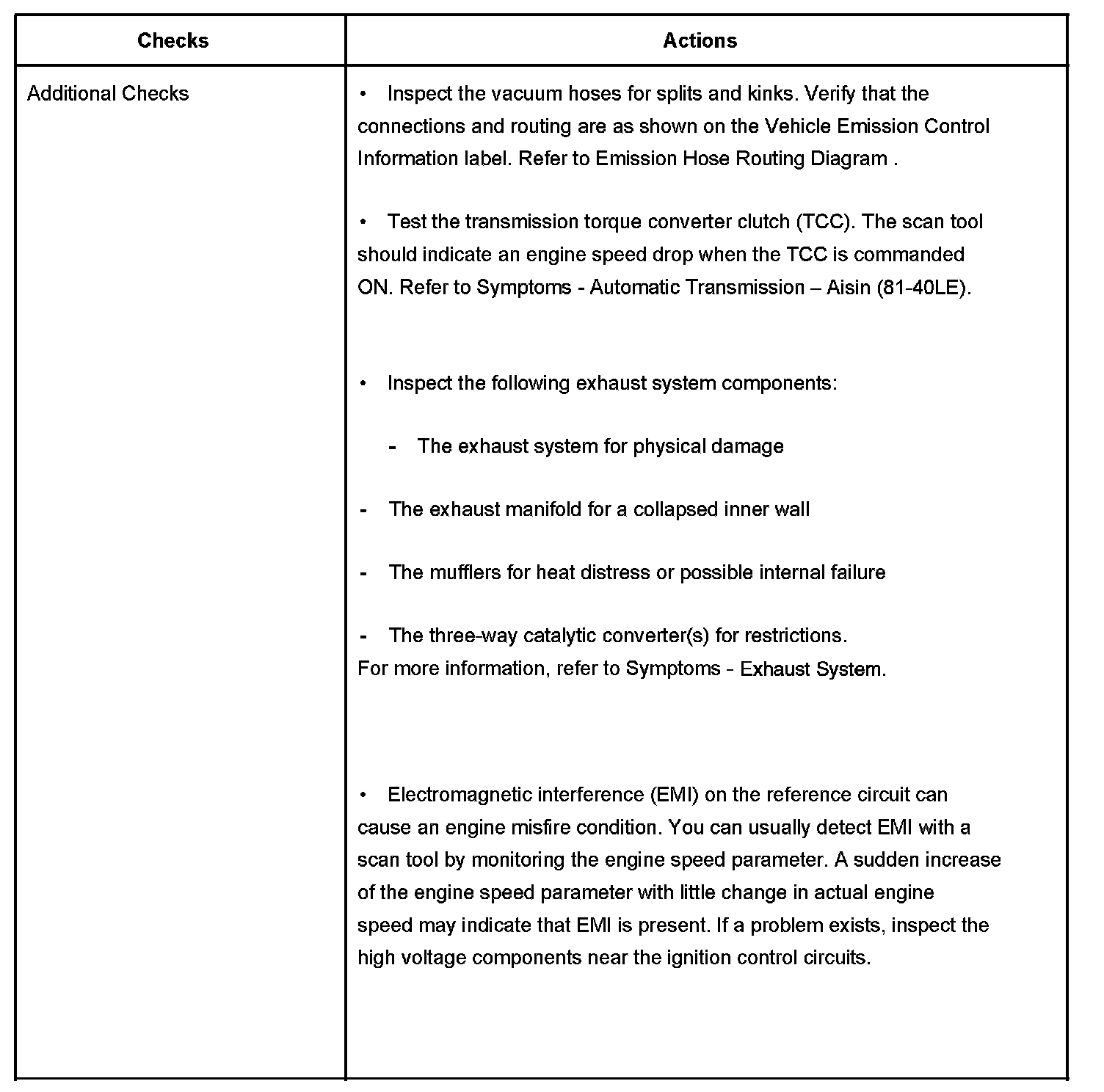

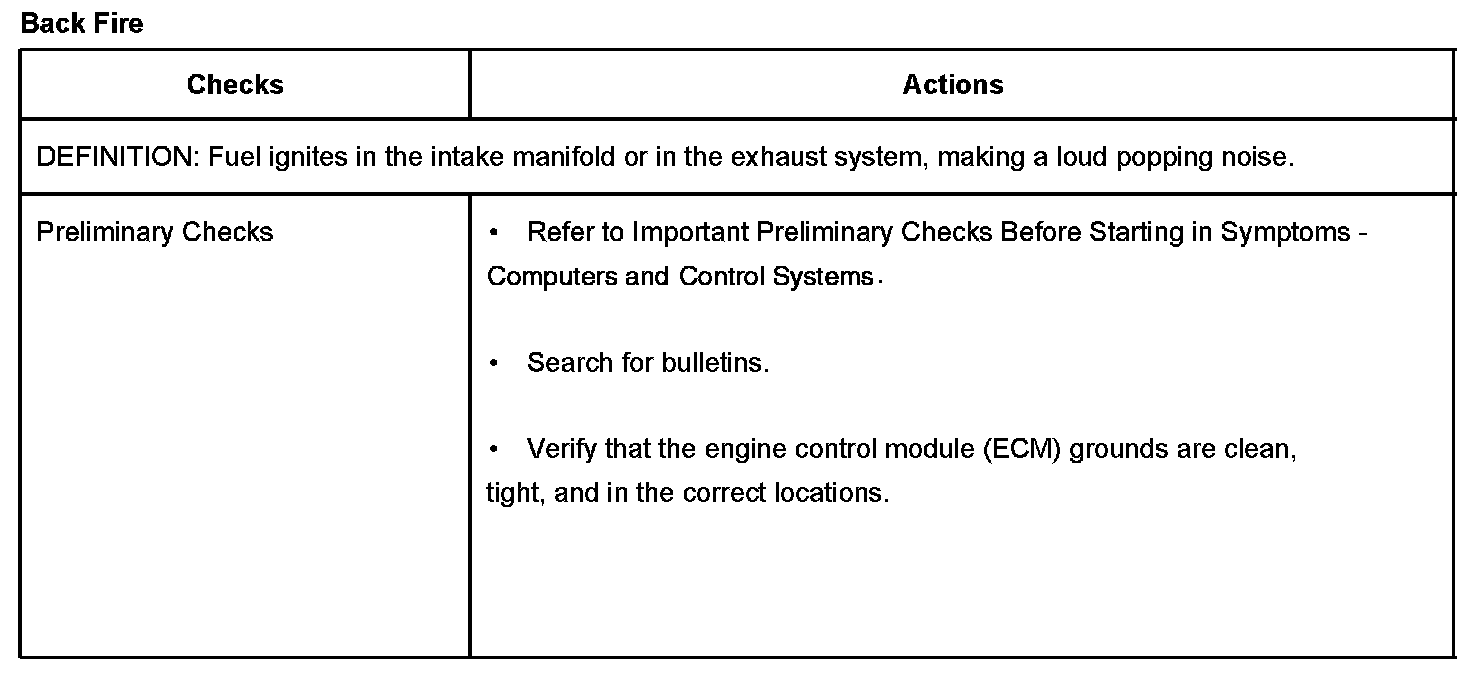

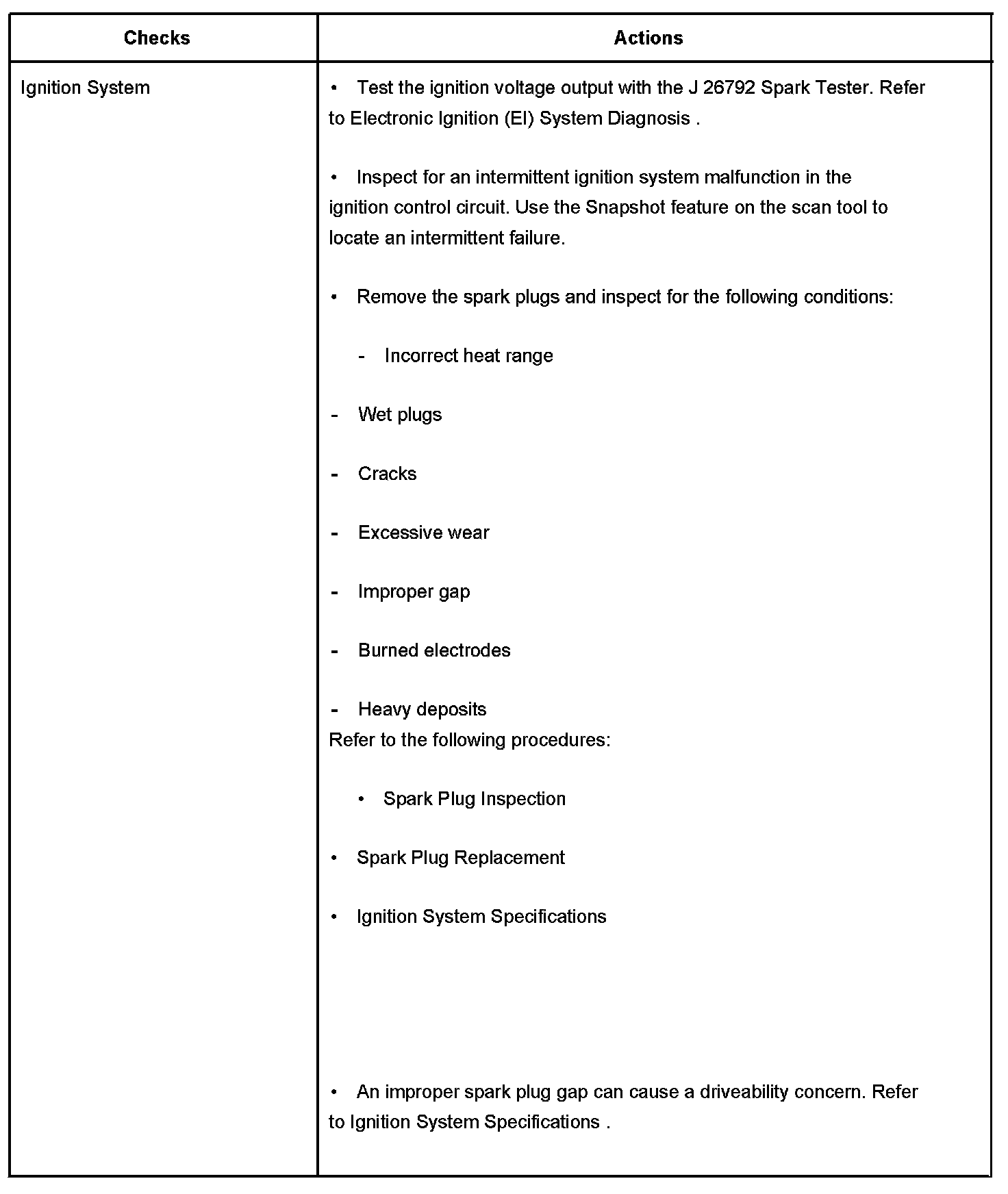

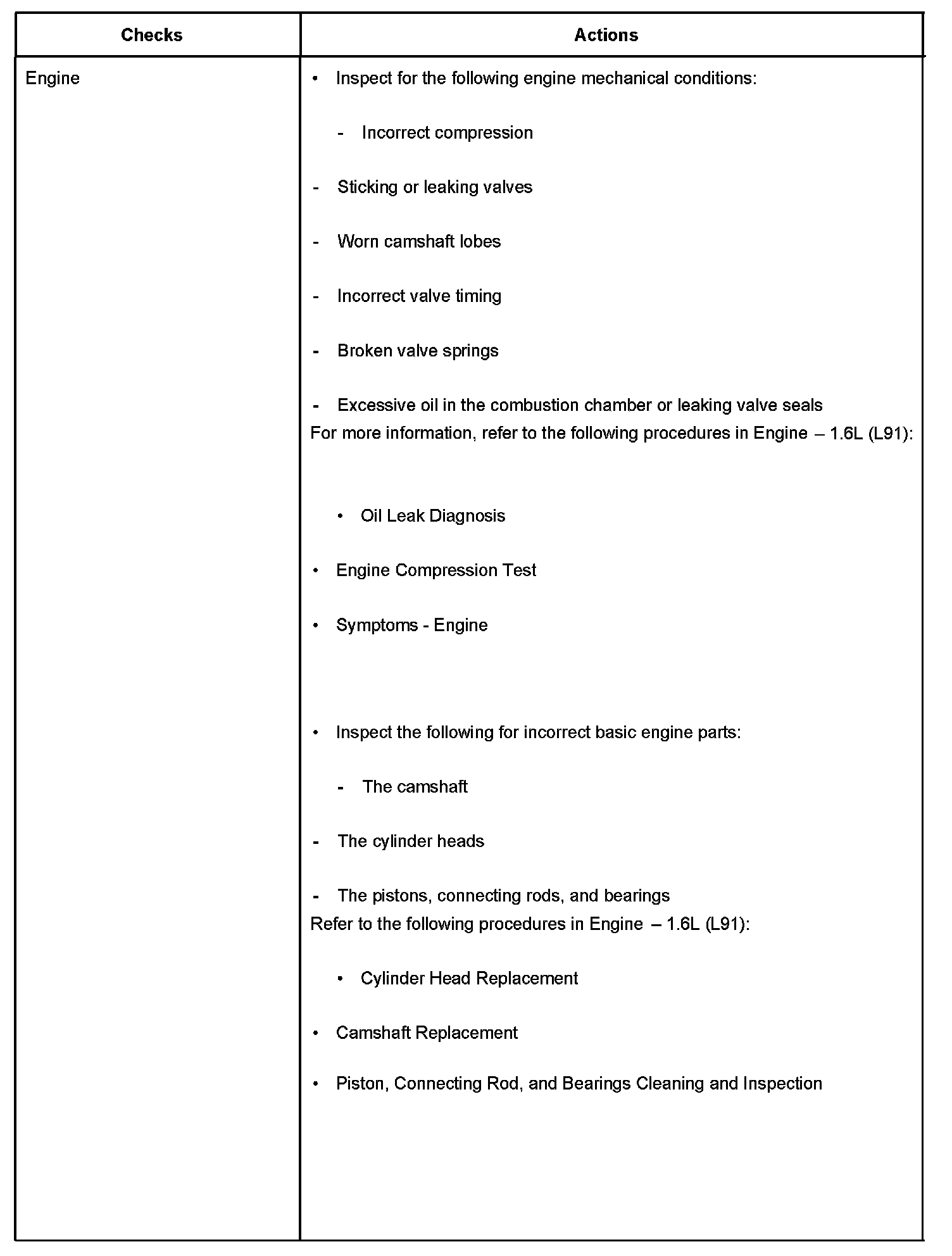

Back Fire Part 1:




Back Fire Part 2:




Back Fire Part 3:




Back Fire Part 4:




Back Fire Part 5:




Back Fire Part 6:
