Fuel Filter: Locations

FUEL FILTER

The fuel filter is contained in the fuel sender assembly inside the fuel tank.

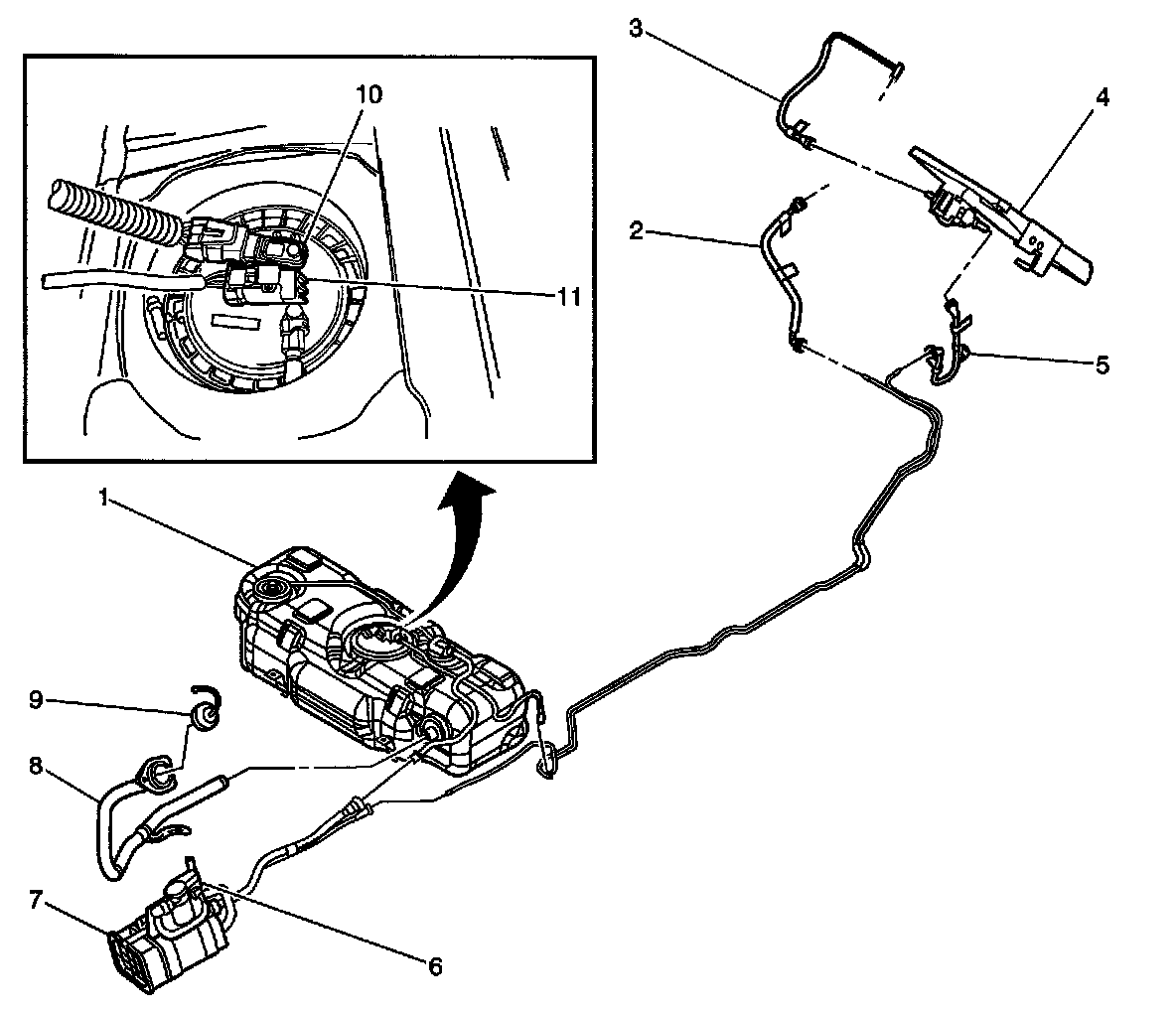

Fuel Hose/Pipes Routing Diagram:

(1) Fuel Tank
(2) Fuel Line to Fuel Rail
(3) EVAP Canister Purge Vacuum Line to Intake Manifold
(4) EVAP Canister Purge Solenoid Valve
(5) EVAP Service Port
(6) EVAP Canister Vent Solenoid Valve
(7) EVAP Canister
(8) Fuel Fill Tube
(9) Fuel Filler Cap
(10) Fuel Tank Pressure Sensor (FTP)
(11) Fuel Sender Assembly
