Heating and Air Conditioning: Locations

HVAC Component View 3:

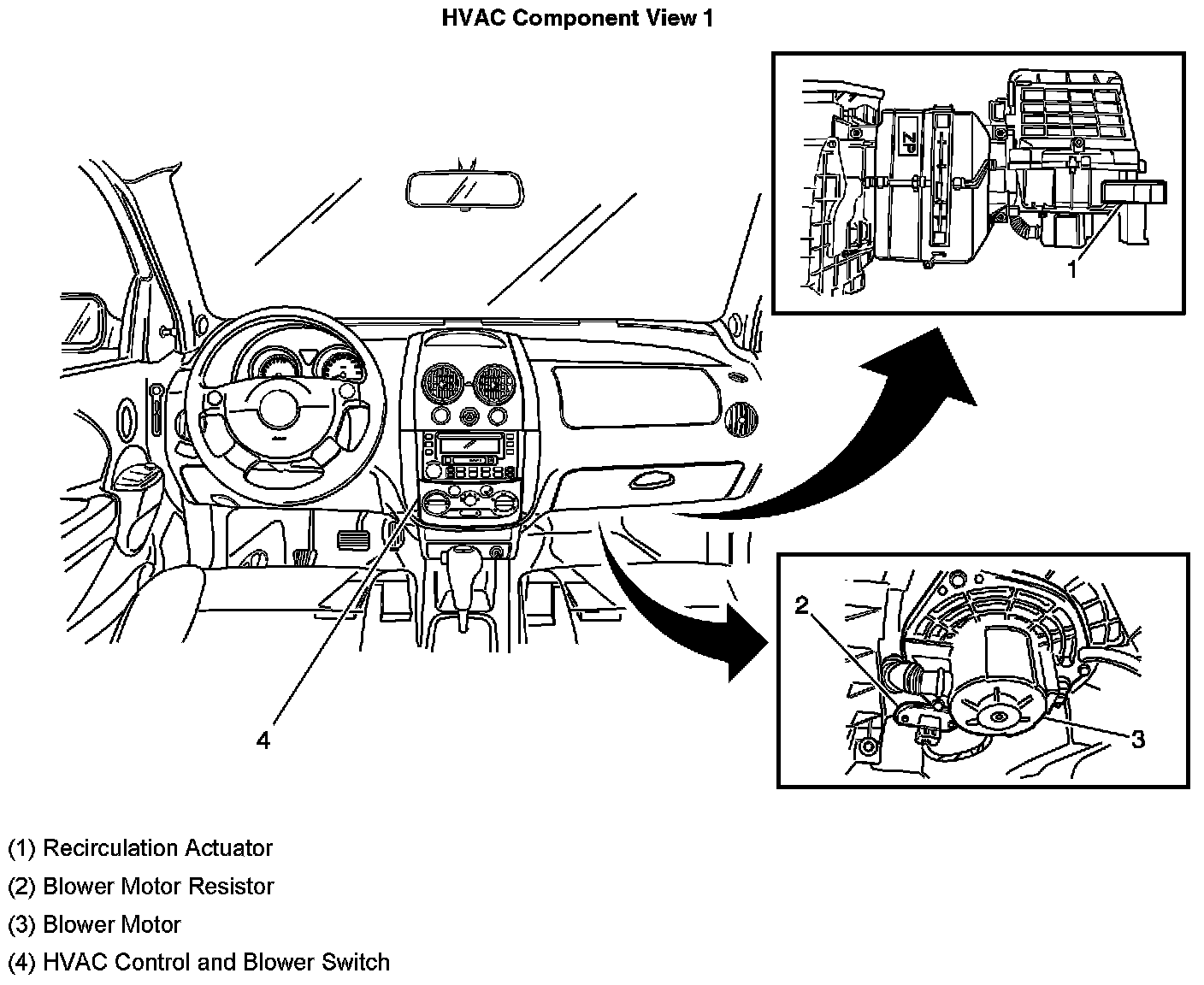

HVAC Component View 1:

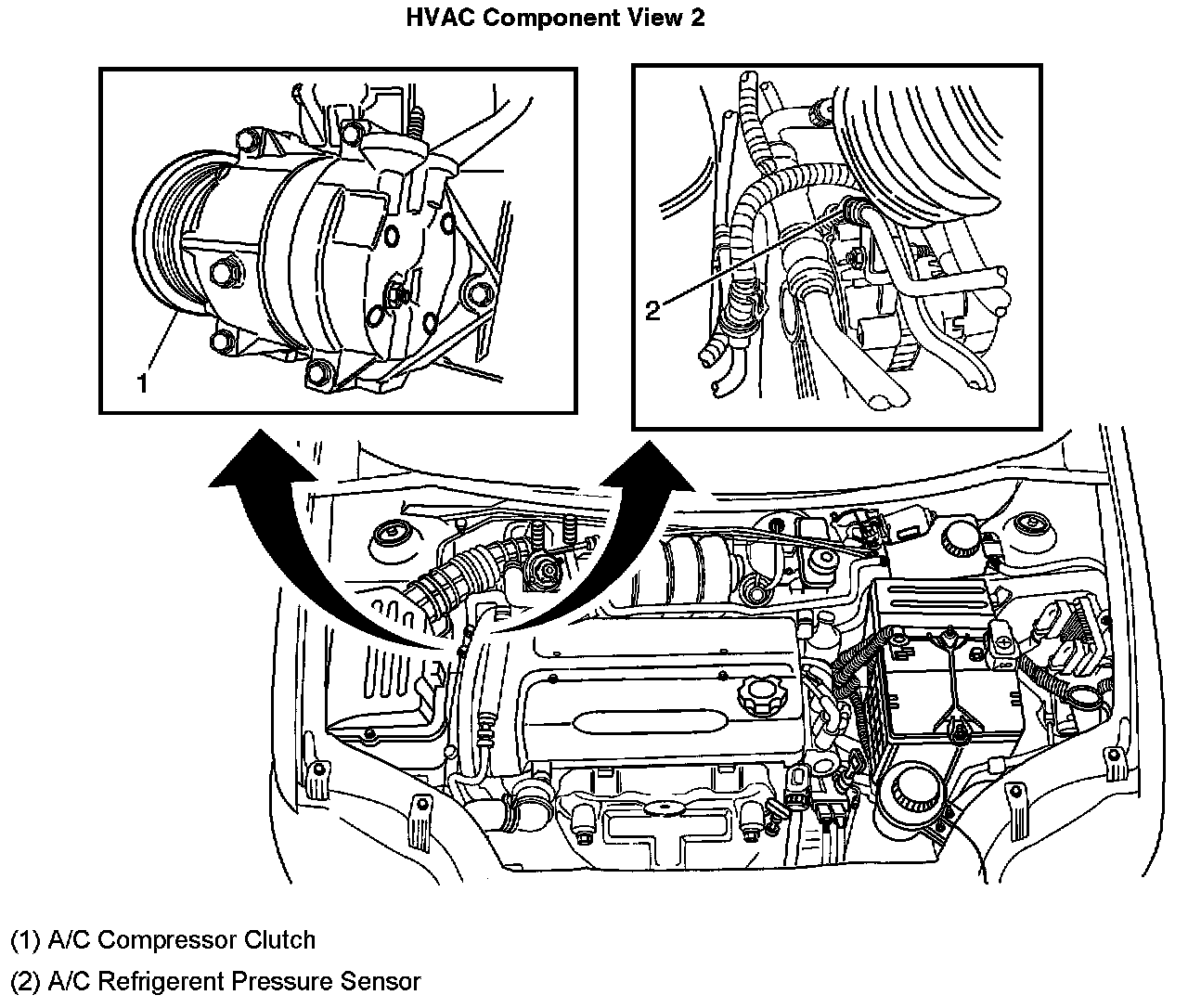

HVAC Component View 2:



HVAC Component View 4:
