HVAC Control Lamp Replacement

HVAC CONTROL LAMP REPLACEMENT

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.







1. Disconnect the negative battery cable.
2. Remove the HVAC control assembly.

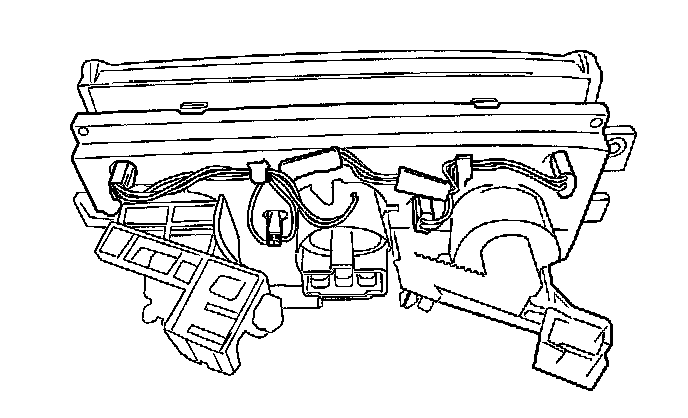

3. Turn the bulb holder to the left and pullout the bulb.



INSTALLATION PROCEDURE

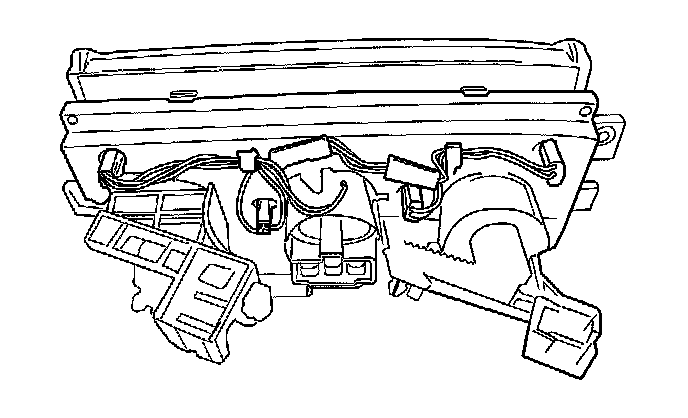

1. Install the bulb into the holder and turn the bulb to the right.
2. Install the control assembly.
3. Connect the negative battery cable.
4. Check knob lighting for proper operation.
