DRL Control Module (North America)

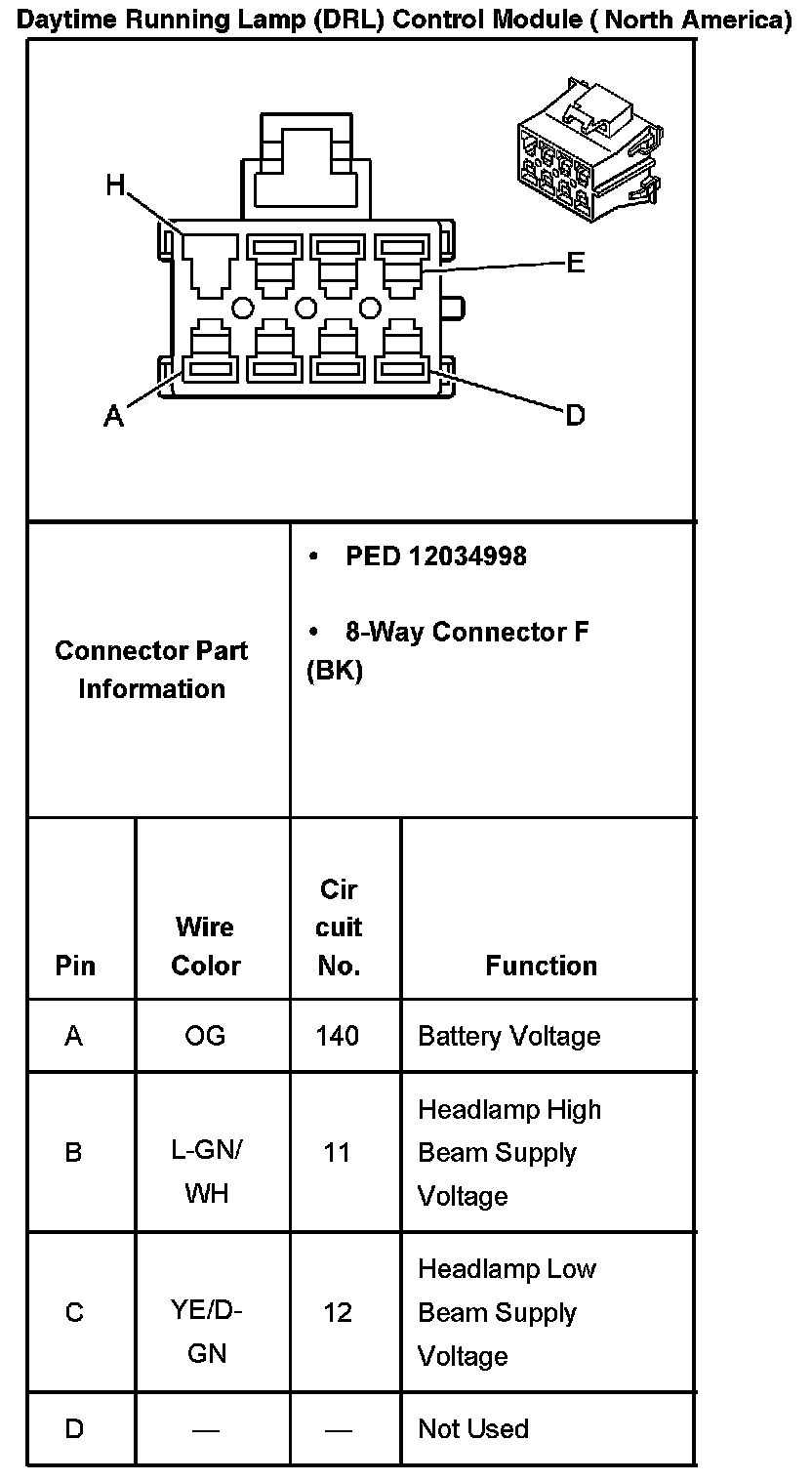

Daytime Running Lamp (DRL) Control Module (North America) Part 1:



Daytime Running Lamp (DRL) Control Module (North America) Part 2:
