Power Window Switch
Power Window Switch

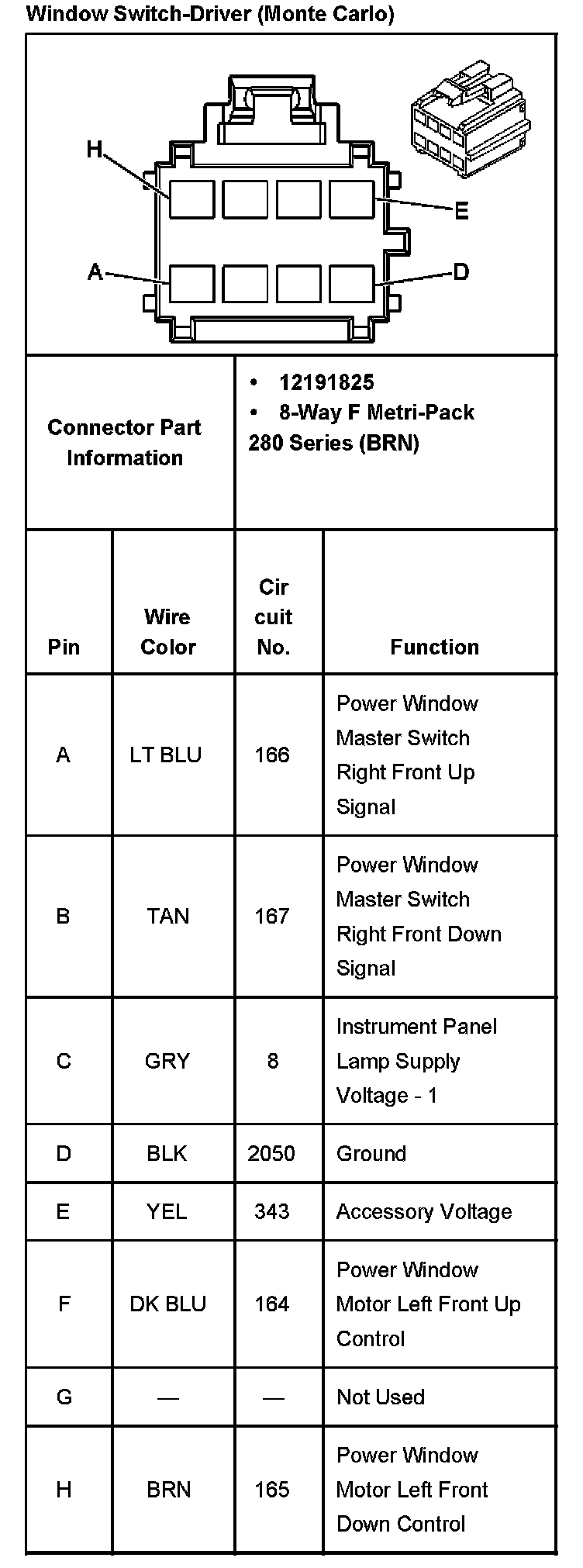

Window Switch-Driver:

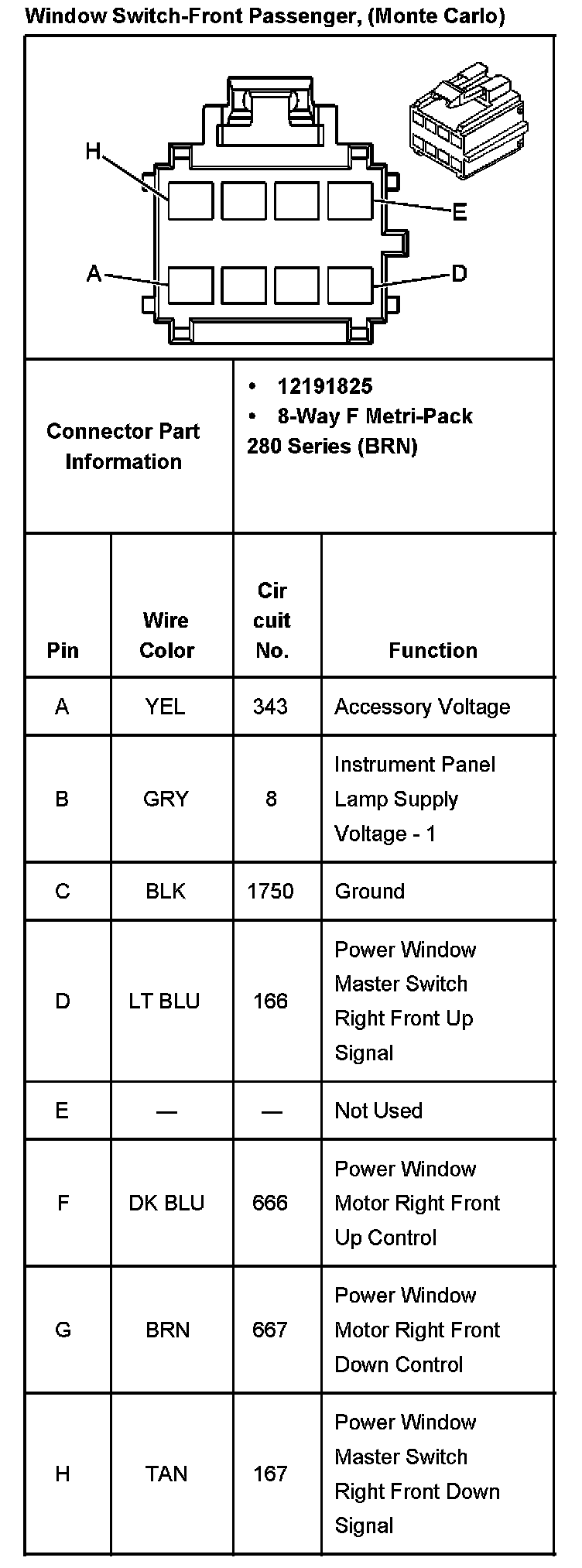

Window Switch-Front Passenger:
Window Switch-LR:
Window Switch-RR:
