Home >> Chevrolet >> 2002 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> Ignition Controls >> Ignition System 2,4,6,8

Ignition System 2,4,6,8

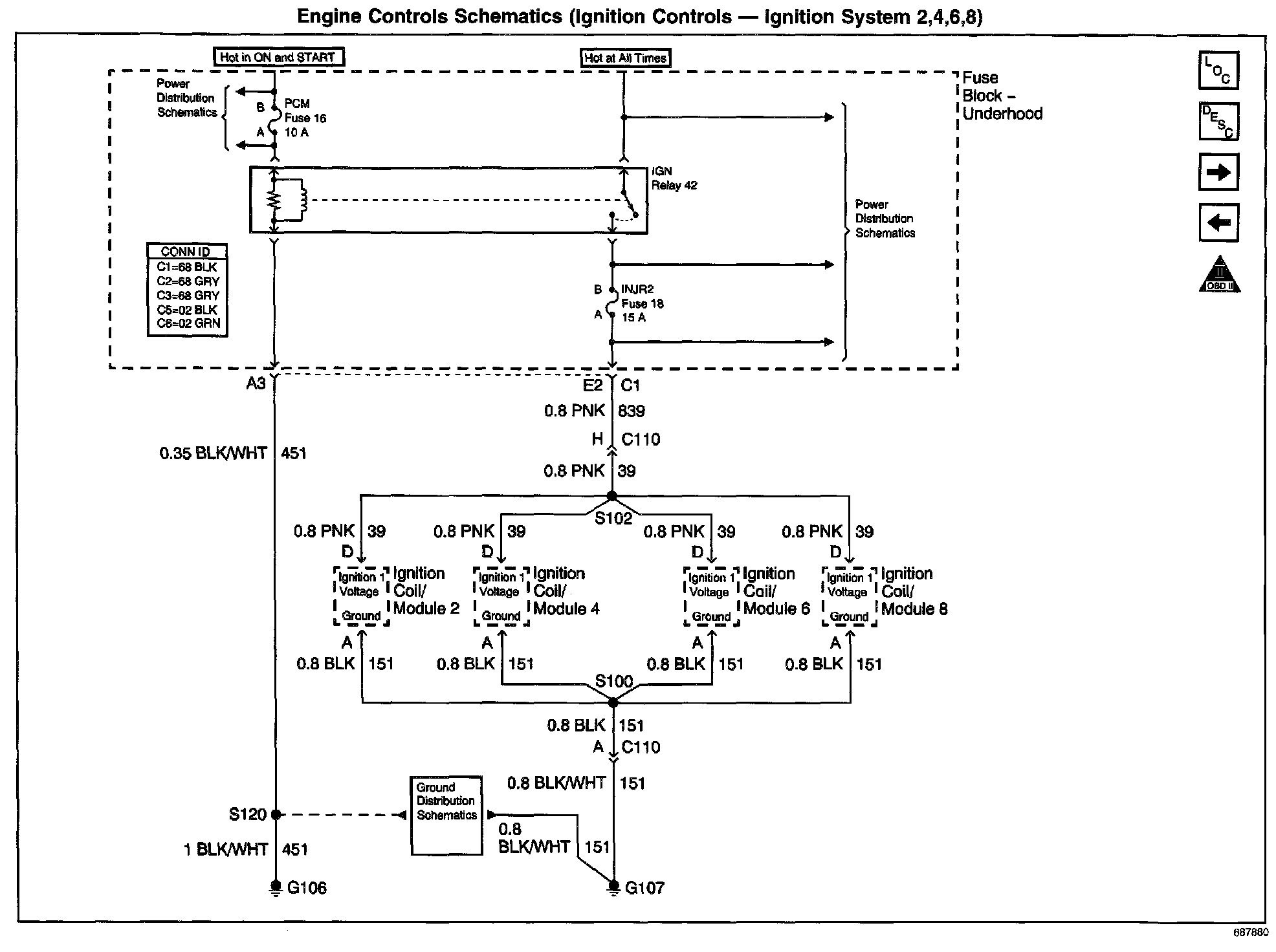

Engine Controls Schematics: Ignition Controls - Ignition System 2,4,6,8:
