Door Control Module - Left Door Switch Signals

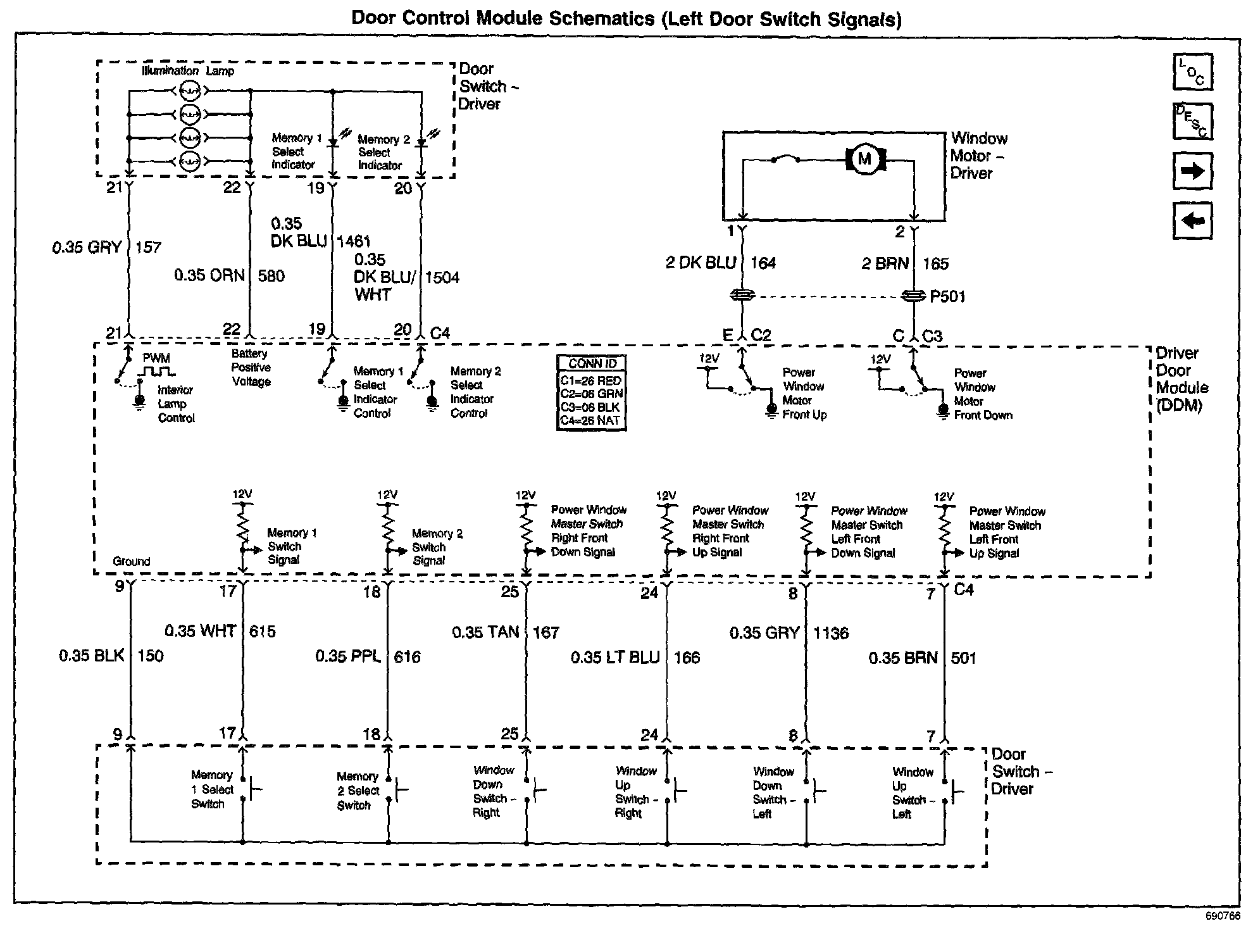

Door Control Module Schematics: Left Door Switch Signals:
