Intermittent Conditions

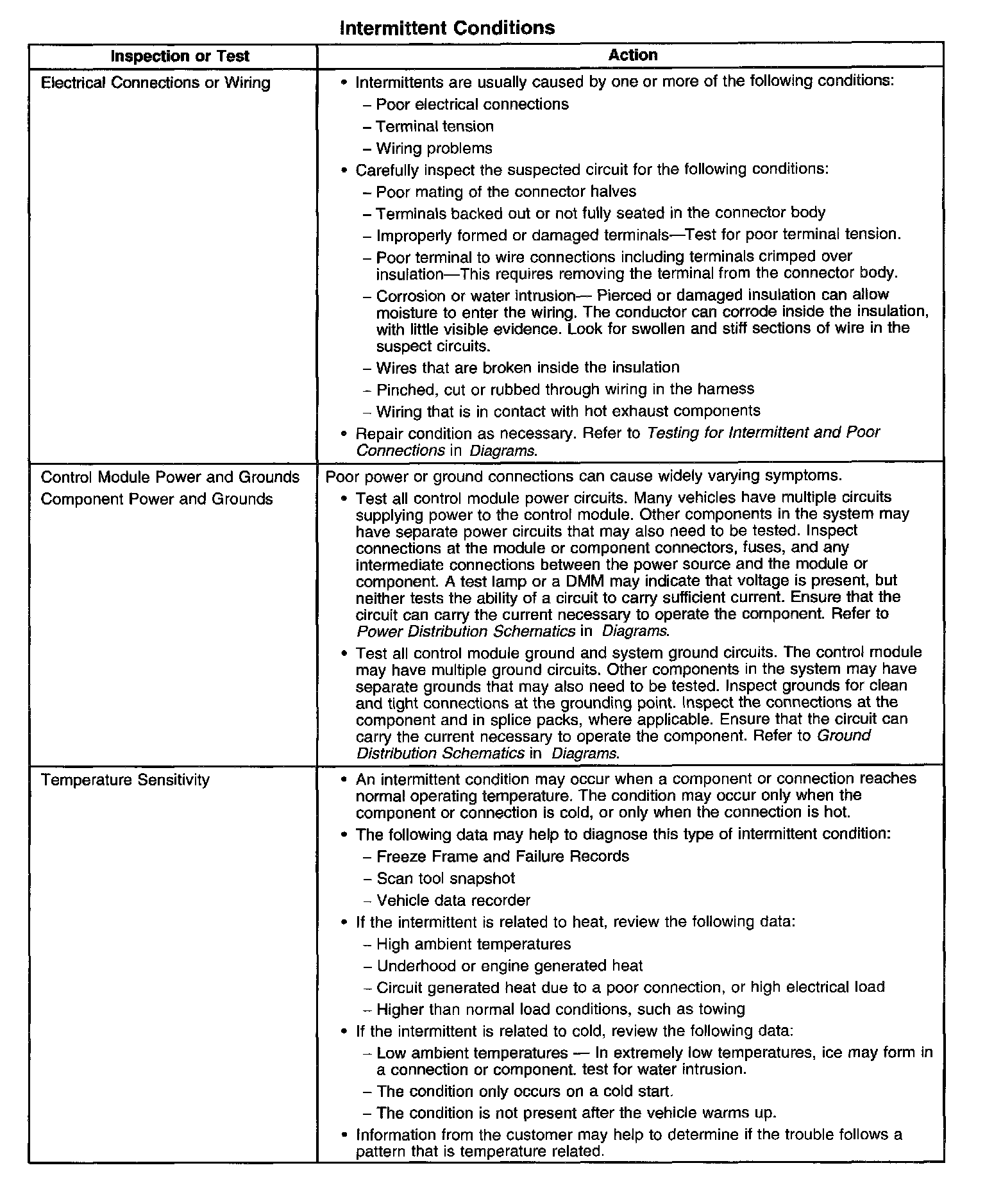

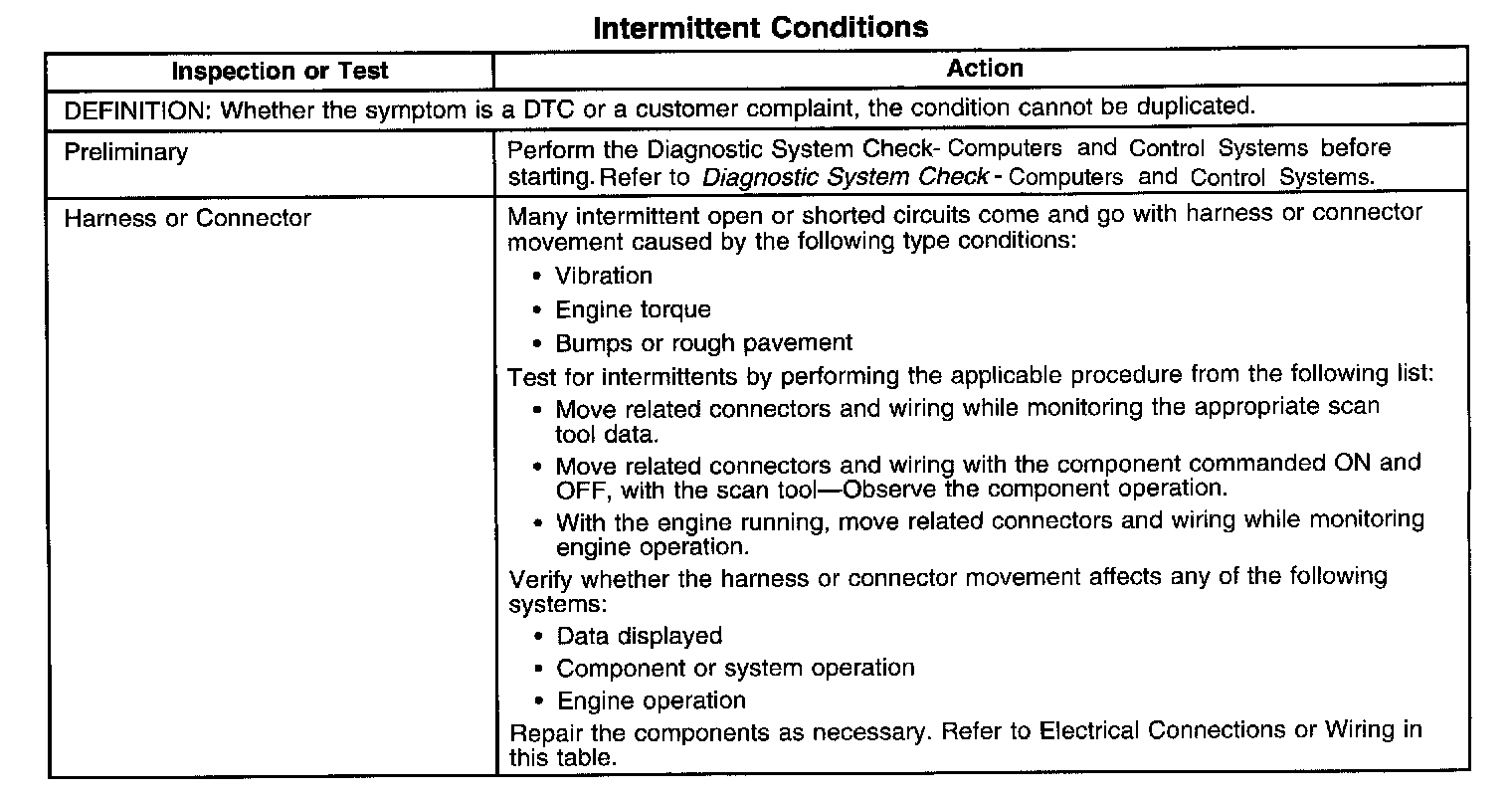

Diagnostic Chart Part 1:

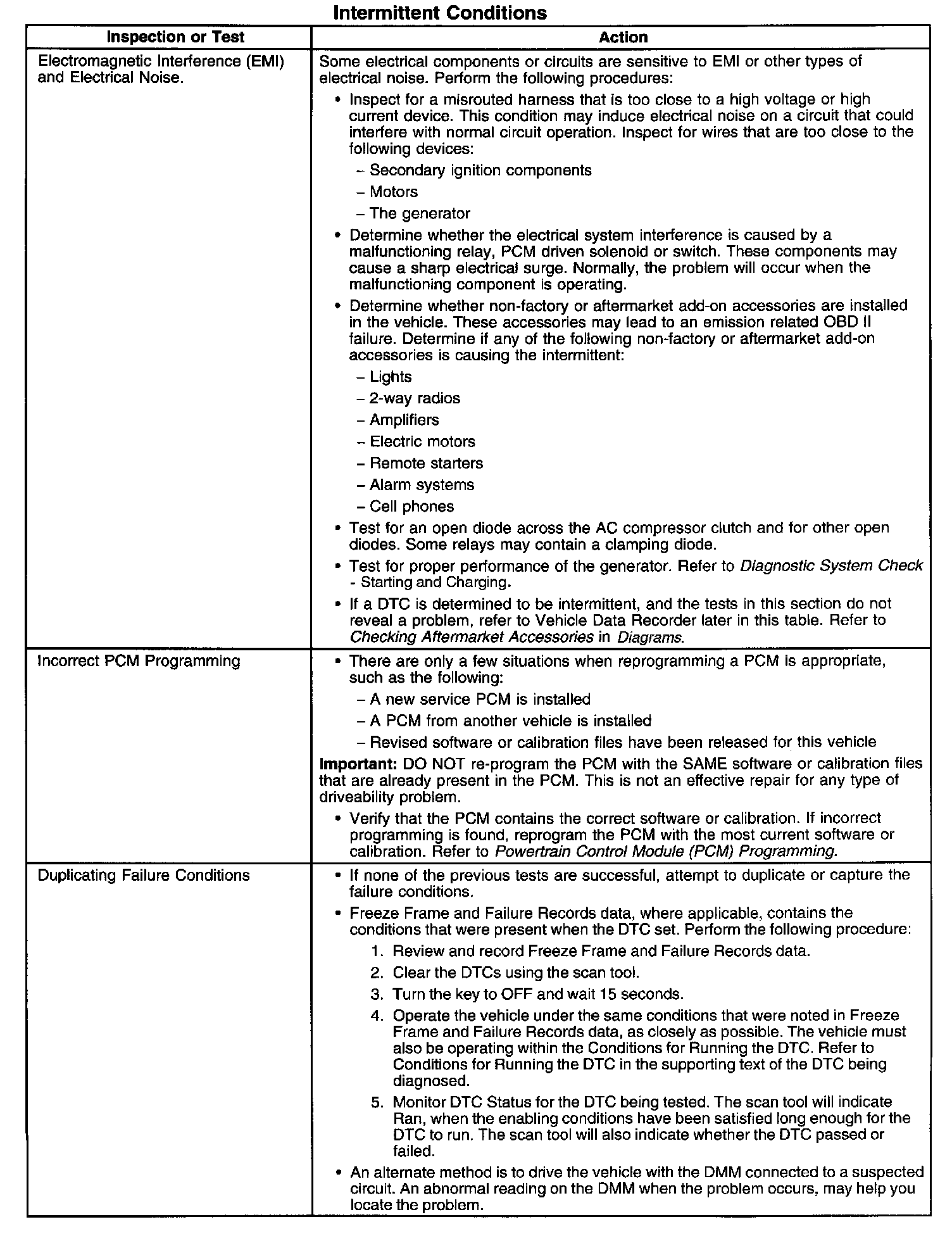

Diagnostic Chart Part 2:




Diagnostic Chart Part 3:

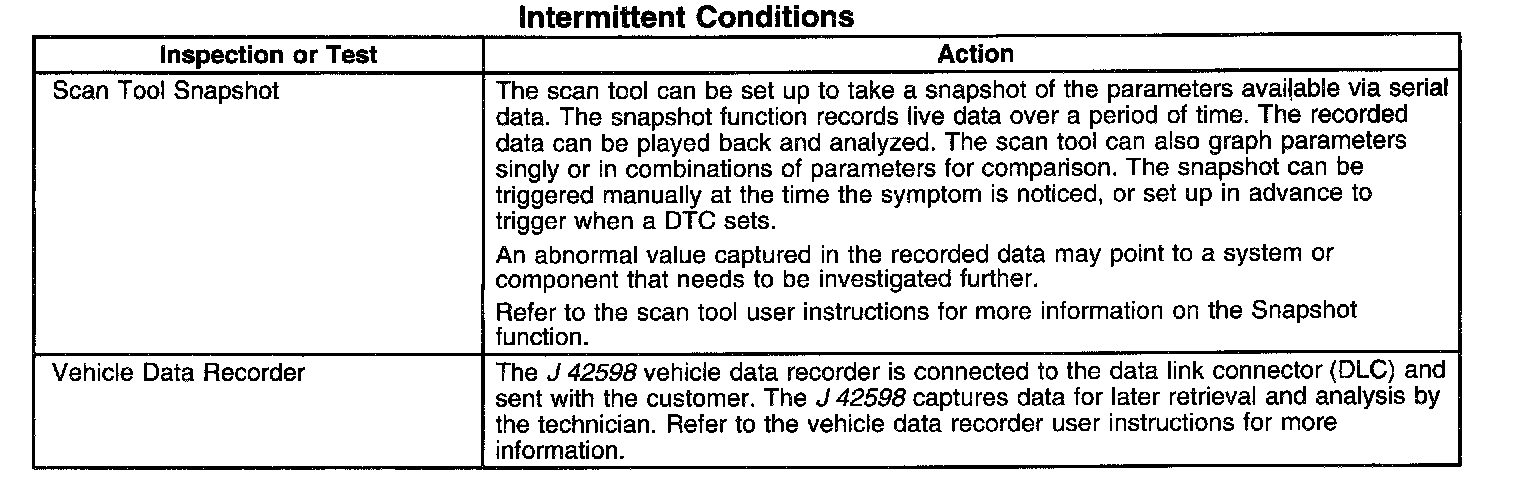

Diagnostic Chart Part 4:
