Home >> Chevrolet >> 2001 >> Camaro V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Column >> - With Tilt Column >> Connector For Multi-Function Lever, Wiper/Washing Switch

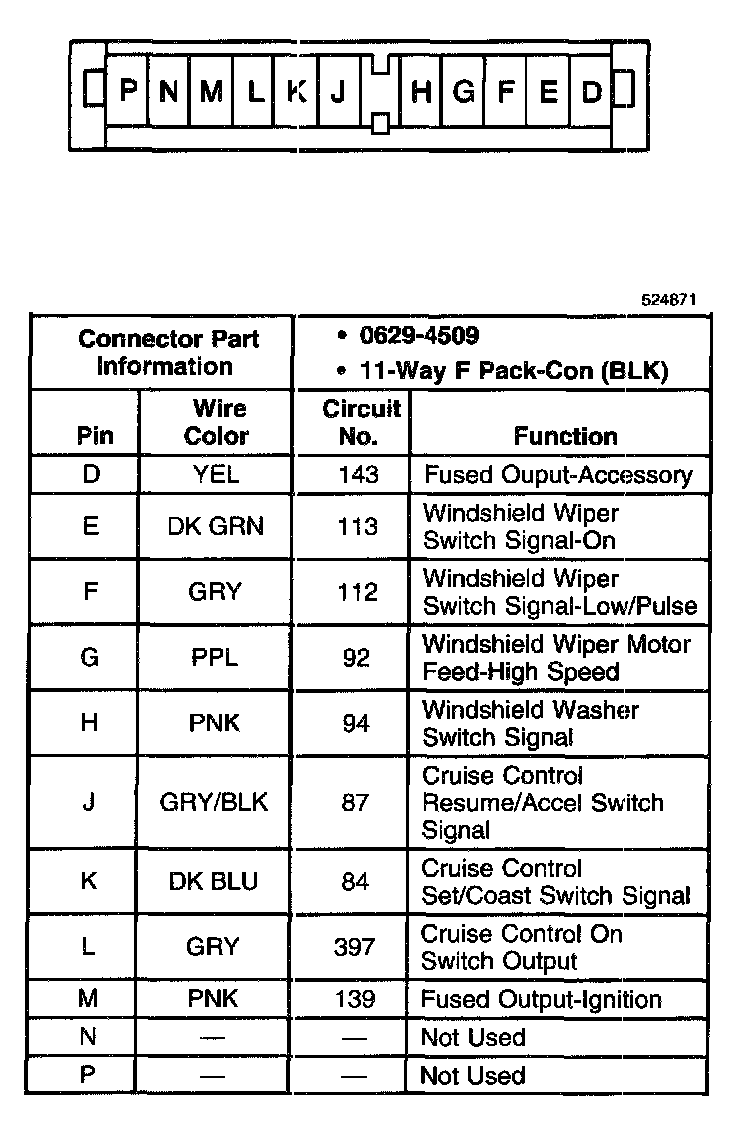

Connector For Multi-Function Lever, Wiper/Washing Switch
