Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

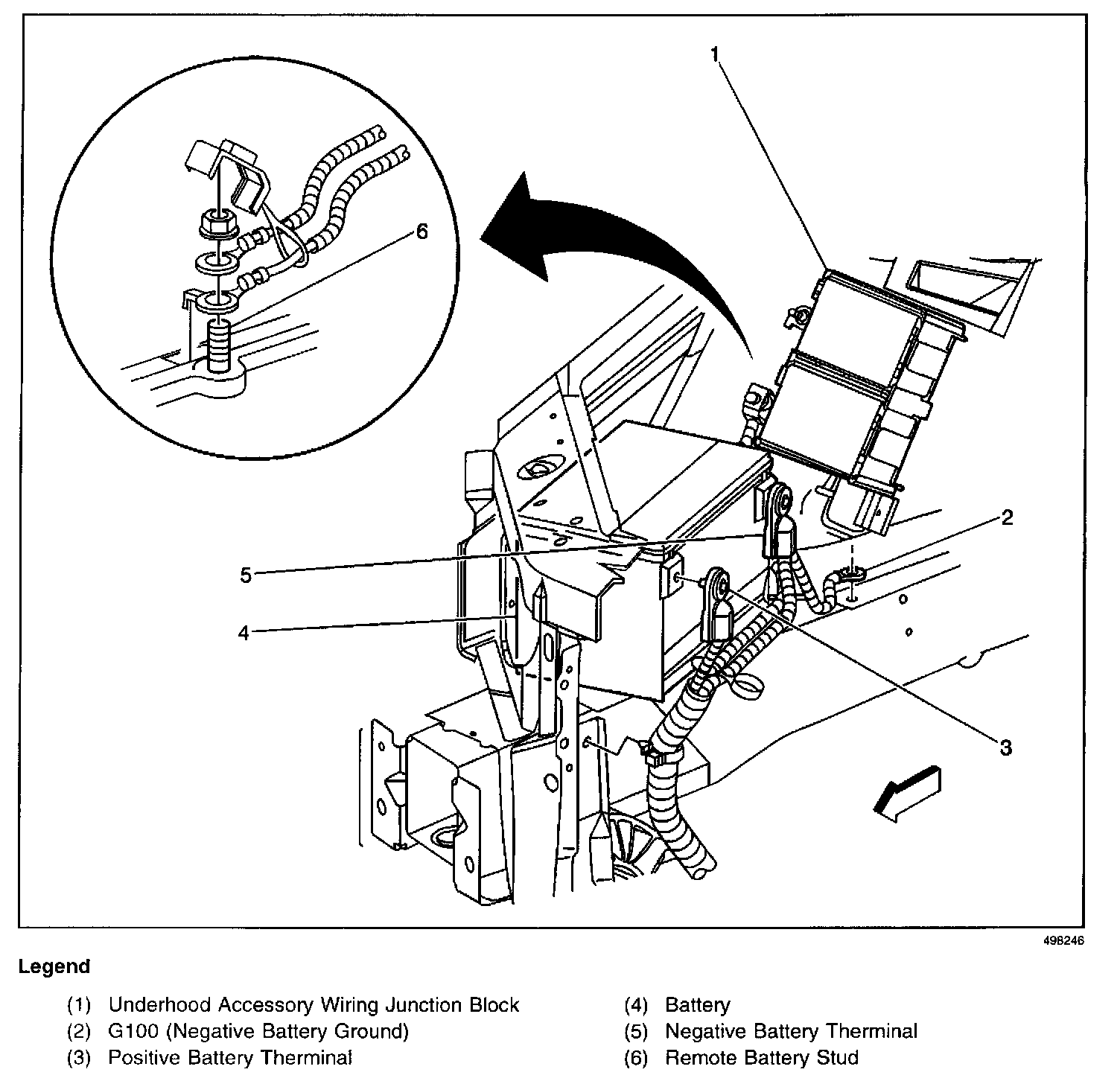

Battery Component View
Battery Component View
Harness Routing Views (Battery Component View):
