FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2000
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Switches
>>
Fog Lamp Switch

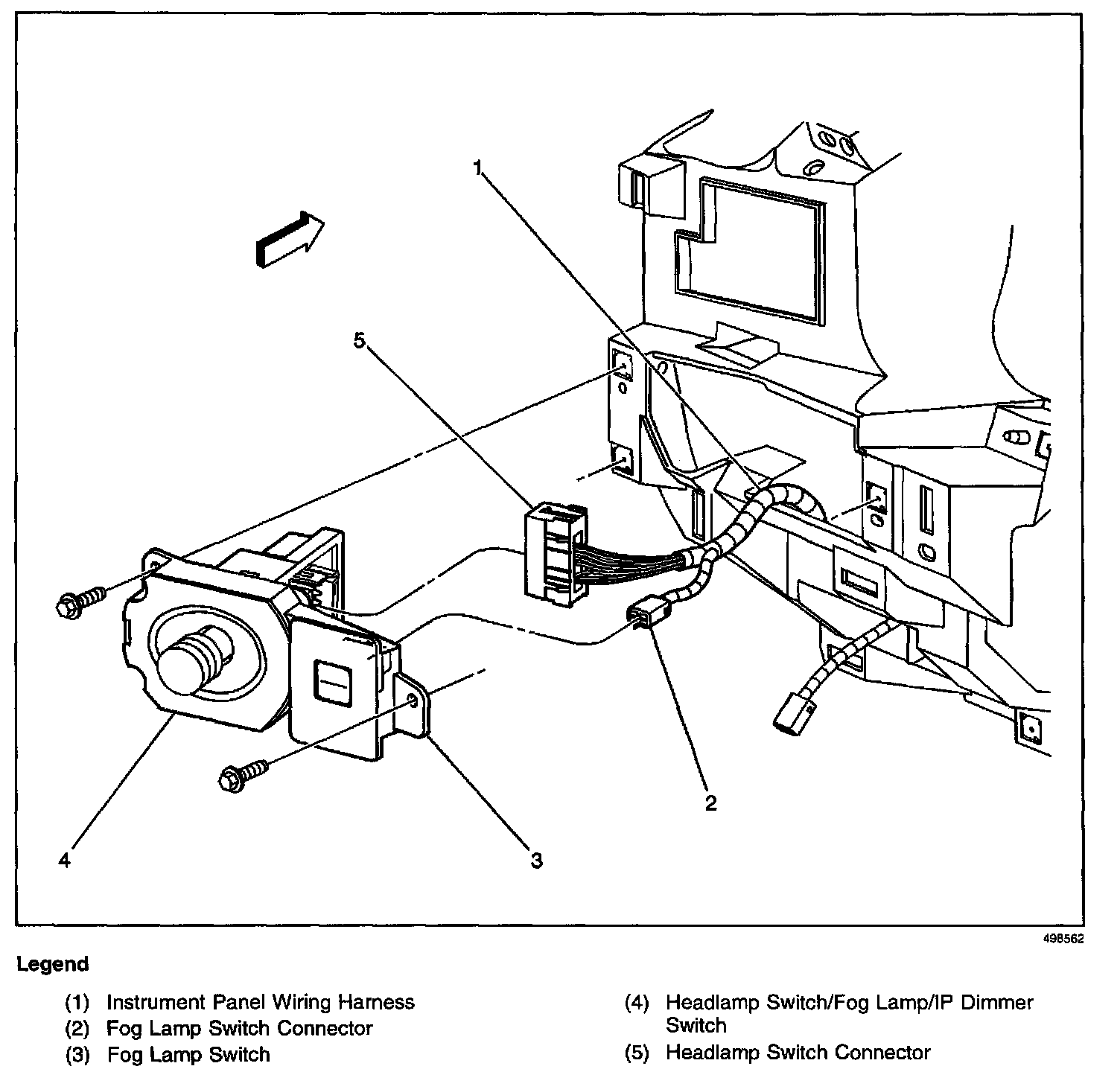

Fog Lamp Switch
Locations View:
In the LH side of instrument panel, next to the headlamp switch.
