Home >> Chevrolet >> 1999 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Locations >> Connector Locations

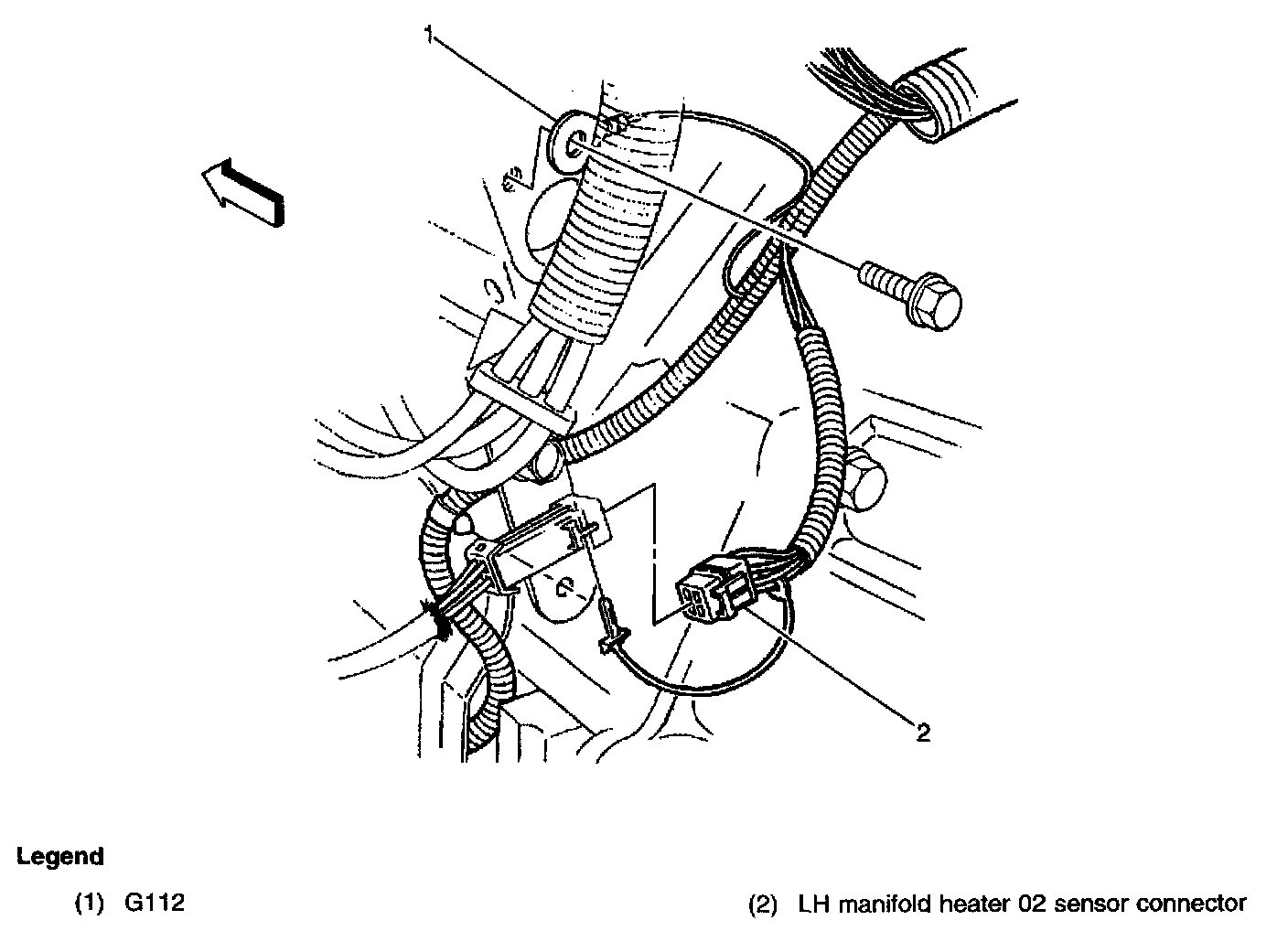

Connector Locations

Rear Right Side Of Engine:



Rear Left Side Of Engine:
