Compressor Clutch Relay
>>
Locations
>>
A/C Compressor Control Relay
A/C Compressor Control Relay

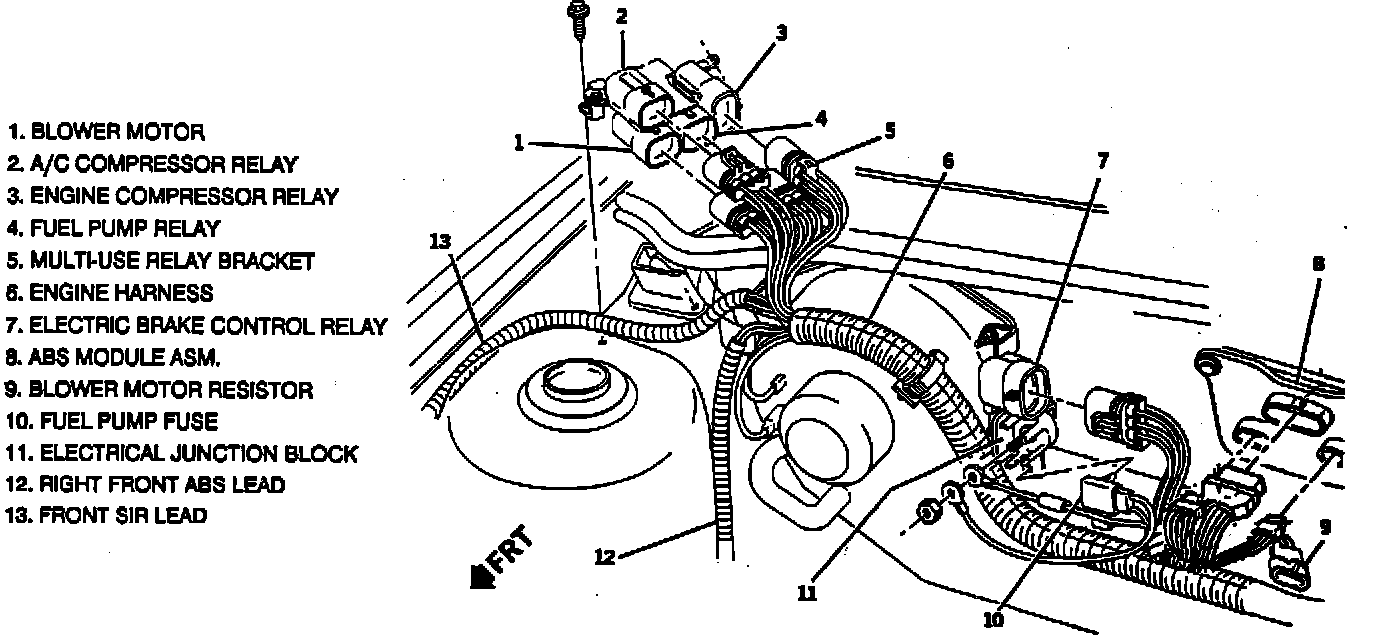

Engine Wiring:
The A/C Compressor Control Relay is located on the RH front strut tower, on bracket.
