No Movement or Slips In Drive
No Movement or Slips In Drive

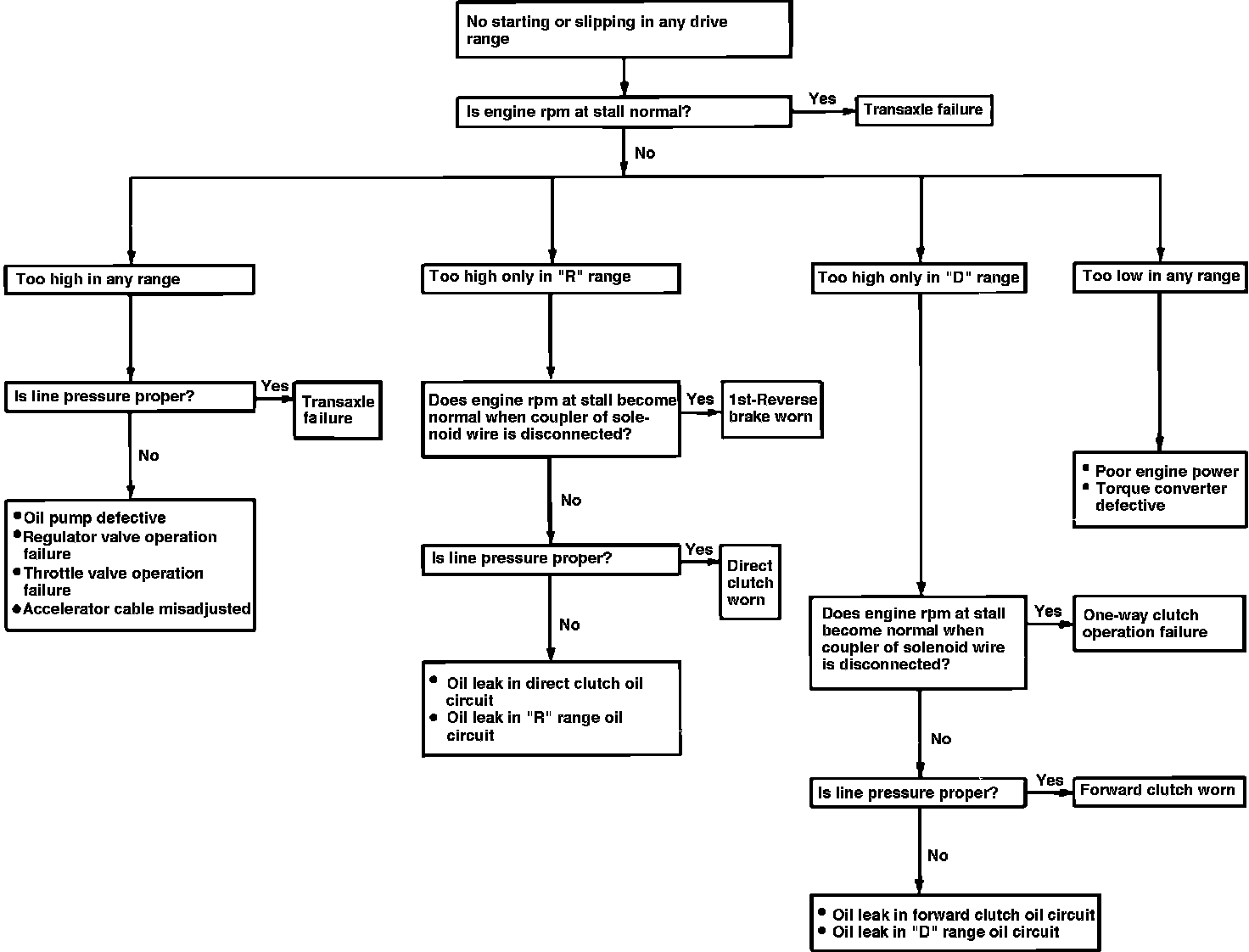

Fig. 3 Diagnostic chart - No movement or slips in drive:
