Home >> Chevrolet >> 1987 >> Sprint-Import L3-061 1000cc 1.0L Turbo VIN 2 FI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Wiring Circuit

Power Distribution Wiring Circuit

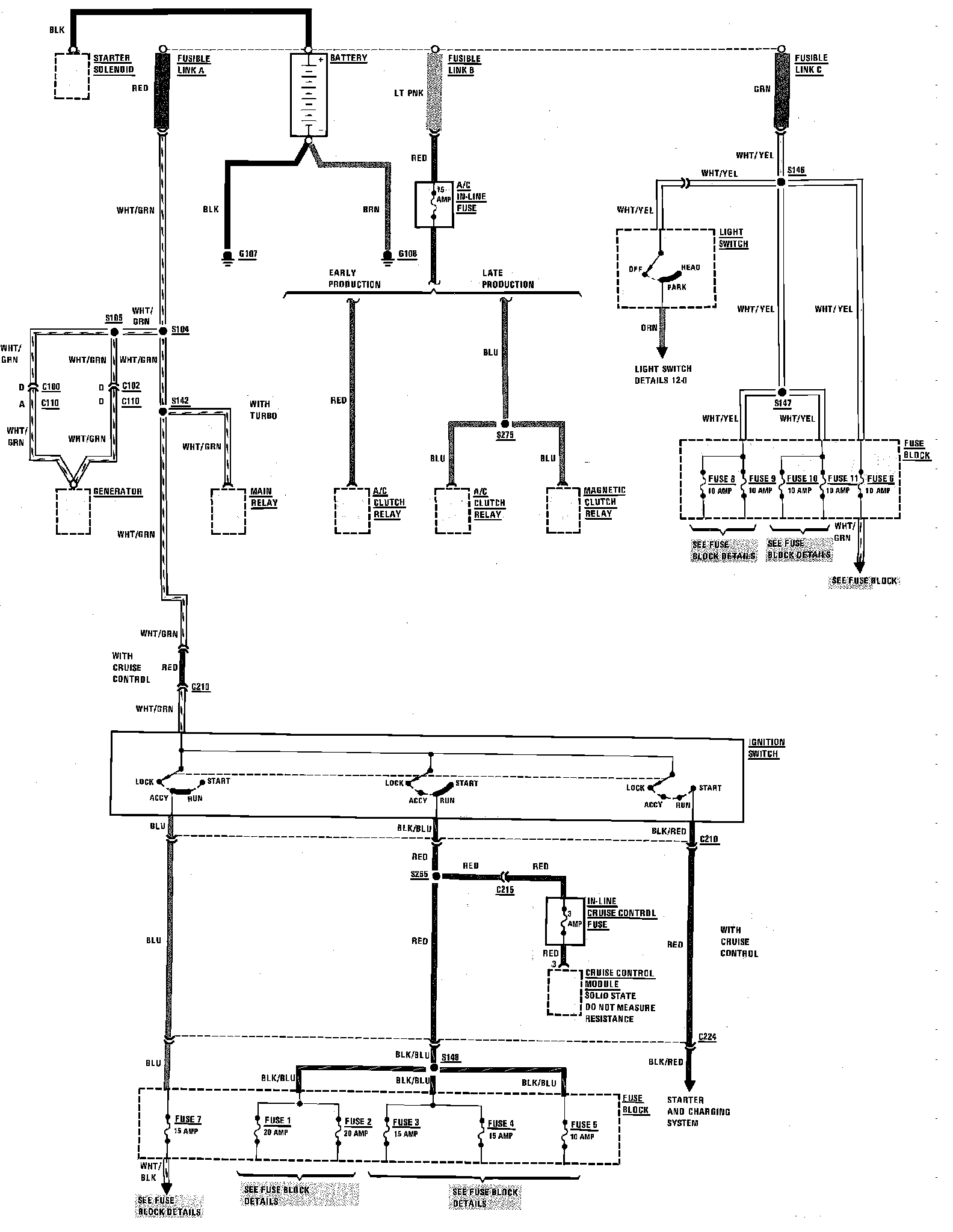

Fig. 39d Power Distribution Wiring Circuit.:
