Torque Specifications

5 SPEED MANUAL TRANSMISSION TORQUE SPECIFICATIONS
ISUZU 76mm

Transaxle Case Bolts
(using a diagonal sequence) 22 to 33 lb ft

Transaxle Rear Cover Bolts 11 to 16 lb ft

Differential Ring Gear Bolts
(using a diagonal sequence) 73 to 79 lb ft

Input Shaft Retaining Nuts 87 to 101 lb ft

Output Shaft Retaining Nuts 87 to 101 lb ft

Reverse Idler Shaft Bolt - Transaxle Case 22 to 33 lb ft

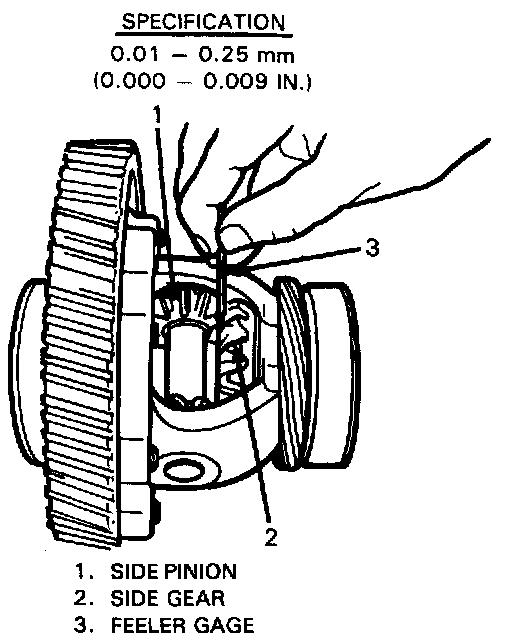

Backlash Specifications:

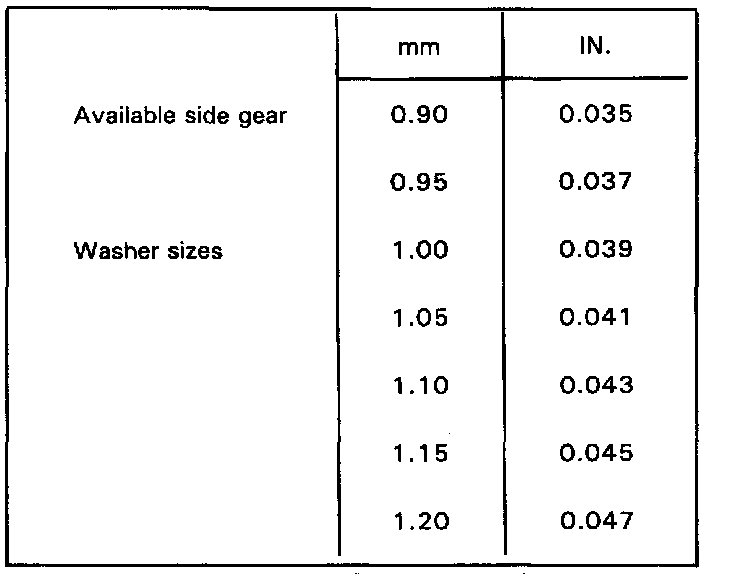

Side Gear Washer Size Chart:

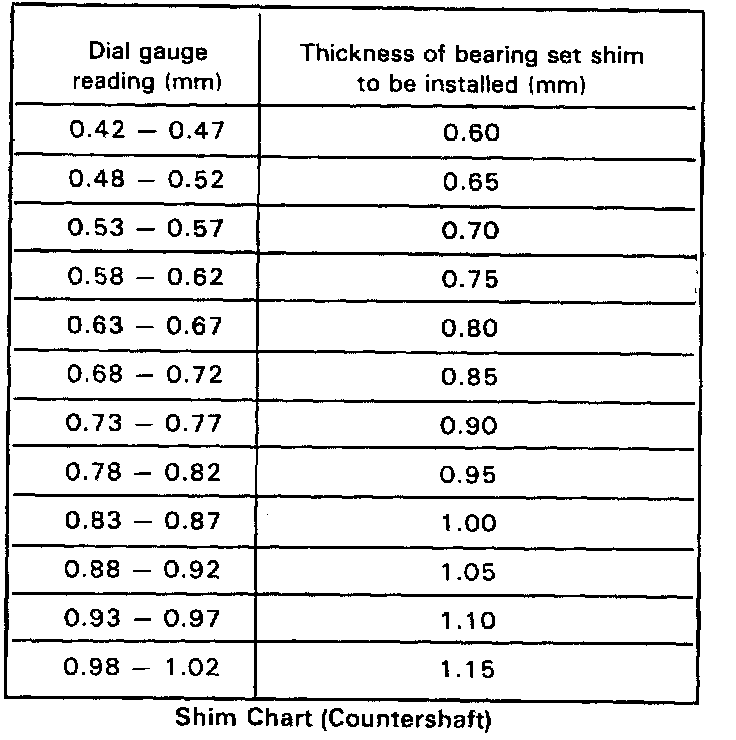

Shim Chart (countershaft):
