Compressor Clutch Relay: Locations

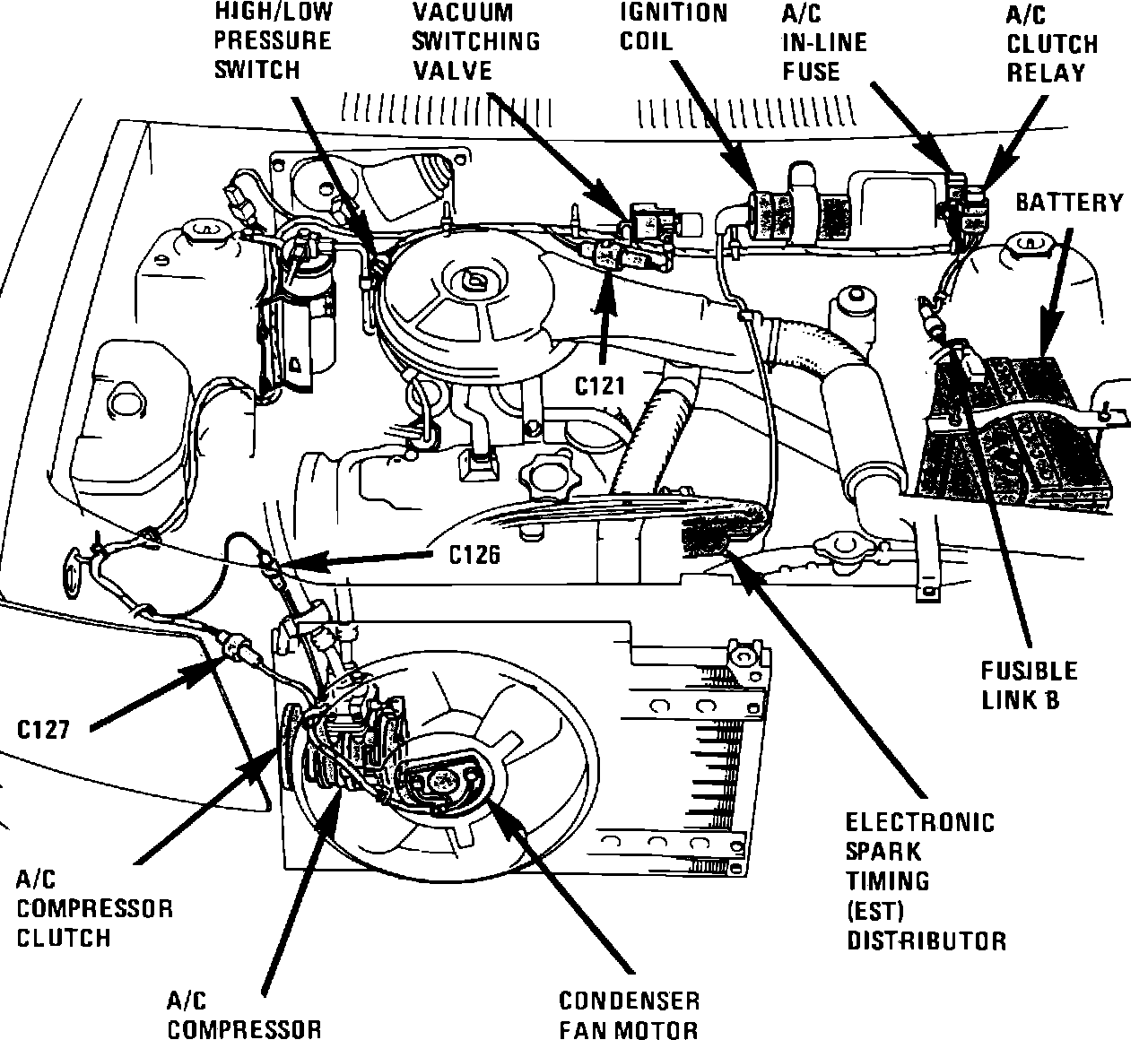

Magnetic Clutch Relay

Engine Compartment:






LH Side Of Engine Compartment Mounted To Cowl
