Thermo Time Switch: Testing and Inspection

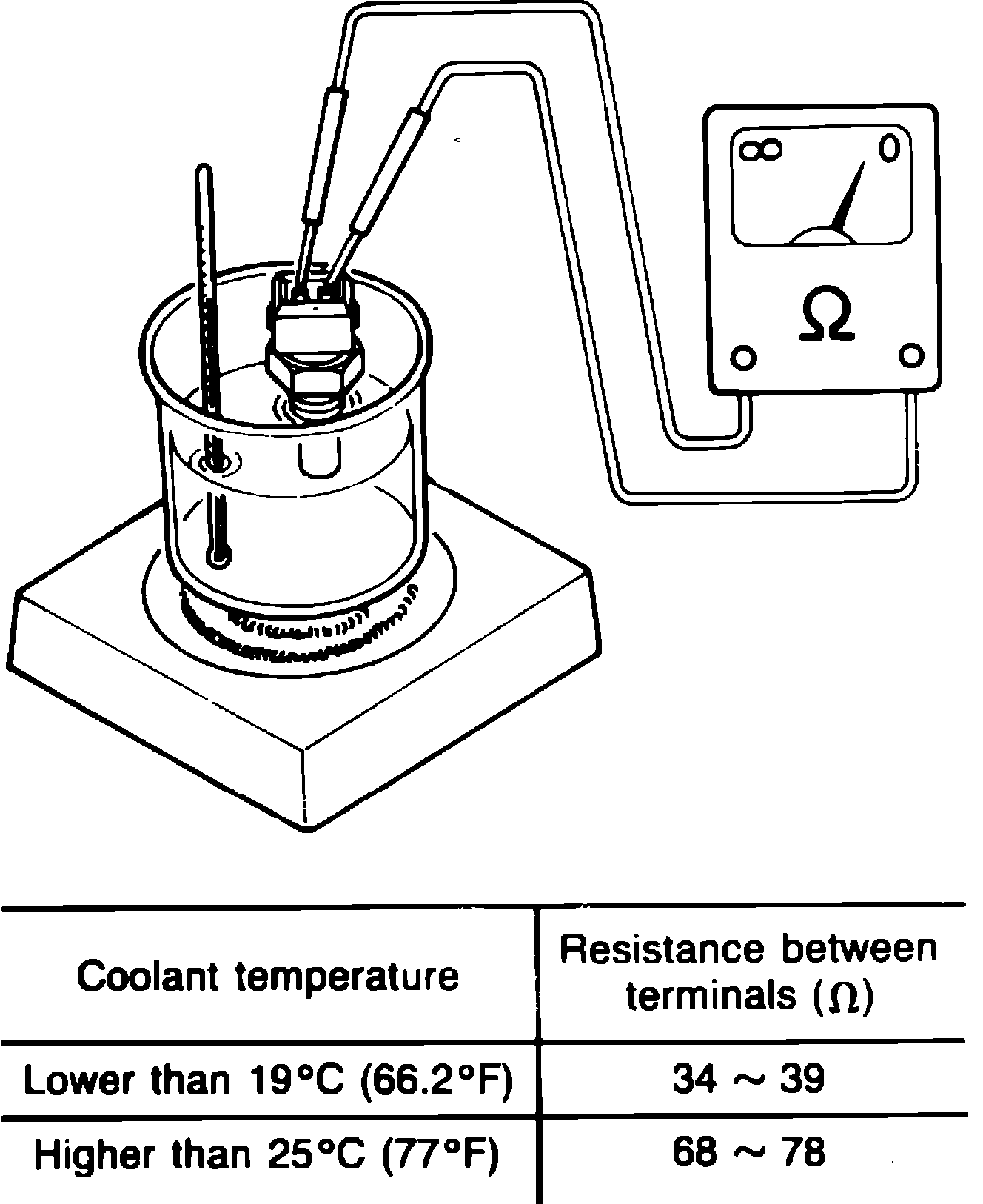

Fig. 14 Checking starter injector time switch:

Fig. 15 Checking starter injector time switch terminal:

1. Gradually warm switch, then check for specified resistance at temperatures shown, Fig. 14.
2. Check resistance between starter injector time switch body and STA terminal as shown, Fig. 15.
