Injector Balance Test

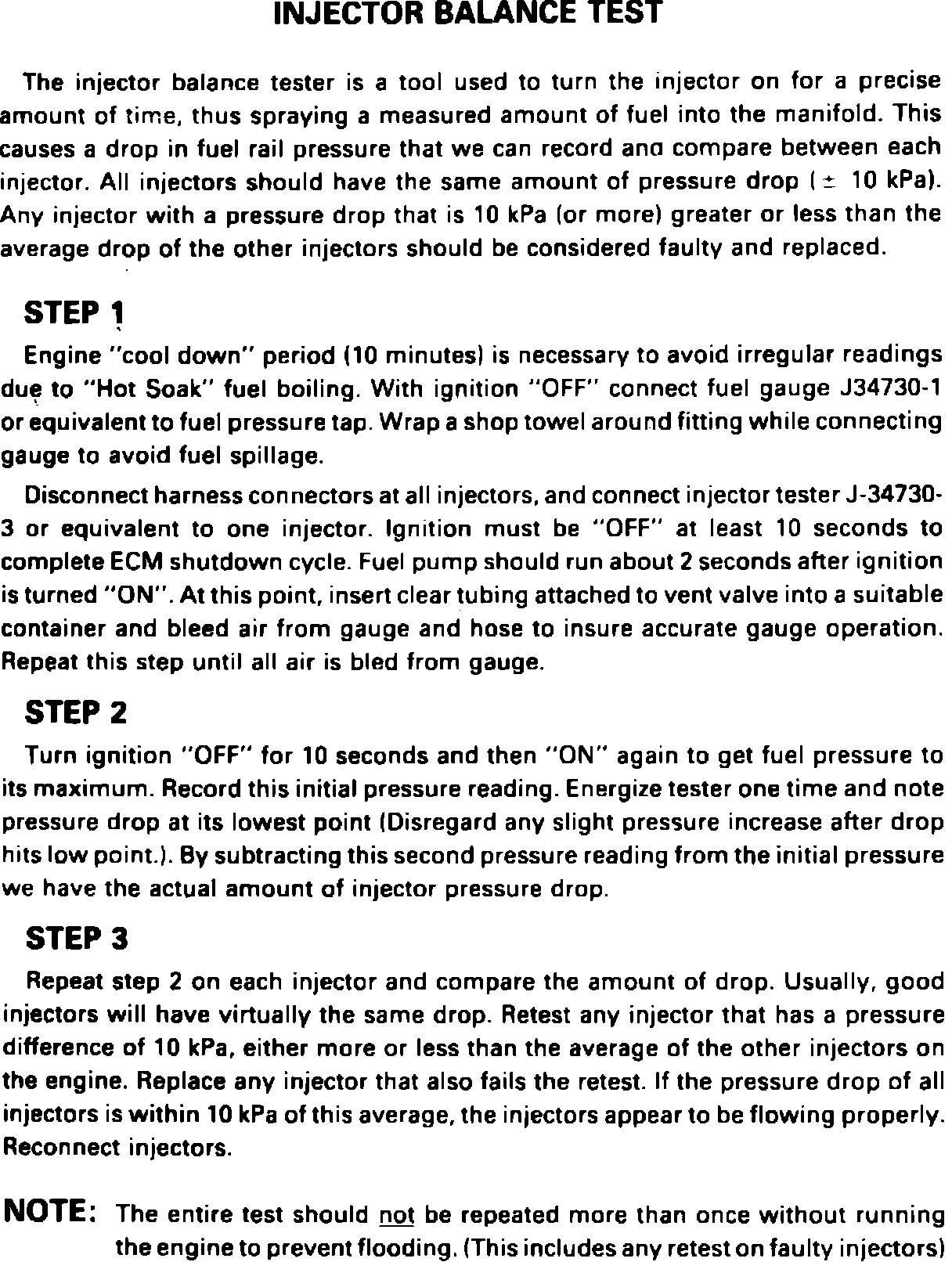

Fig. 19a Injector balance test:

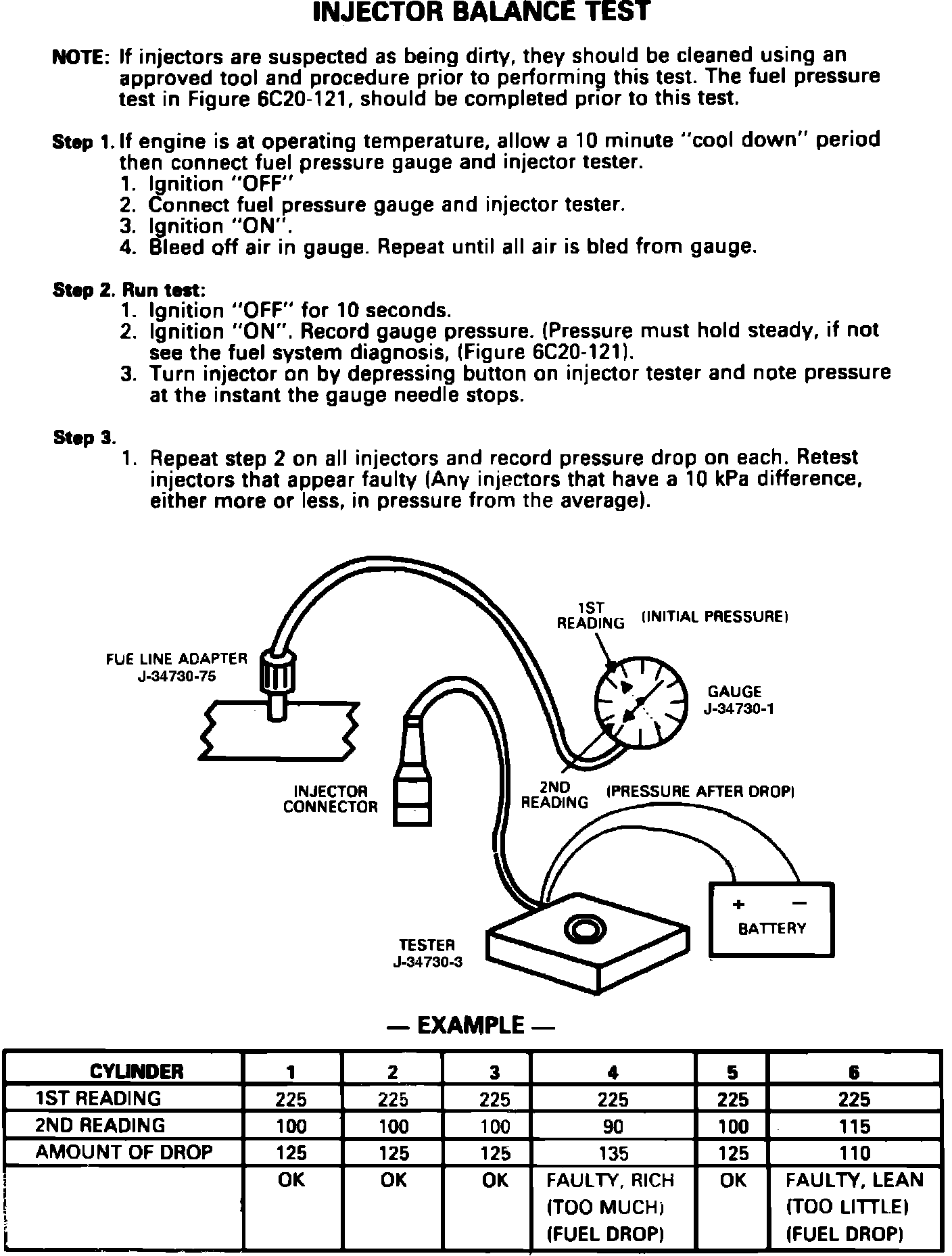

Fig. 19b Injector balance test:





Refer to Fig. 19, when performing this test.
