Home >> Chevrolet >> 1987 >> Sprint-Import L3-061 1000cc 1.0L Turbo VIN 2 FI >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Diagrams >> Electrical Diagrams >> Part 1 of 2

Part 1 of 2

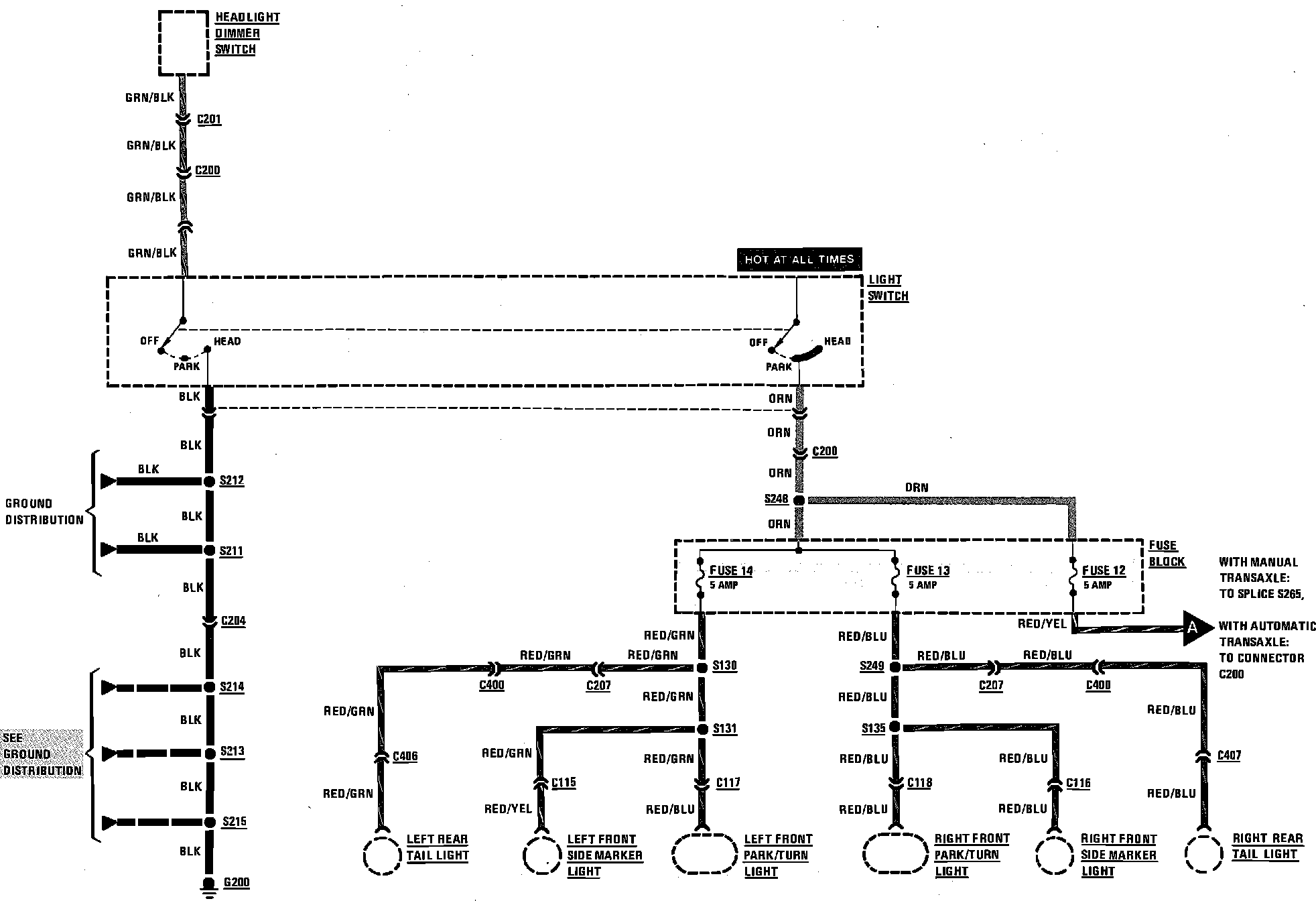

Fig. 34a Lamp Switch Wiring Circuit. (Part 1 of 2):
