Sprint-Import L3-061 1000cc 1.0L Turbo VIN 2 FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
System Diagnostic Charts - Cycling Clutch Orifice Tube (CCOT)
>>
Chart B - C.C.O.T. System
Chart B - C.C.O.T. System

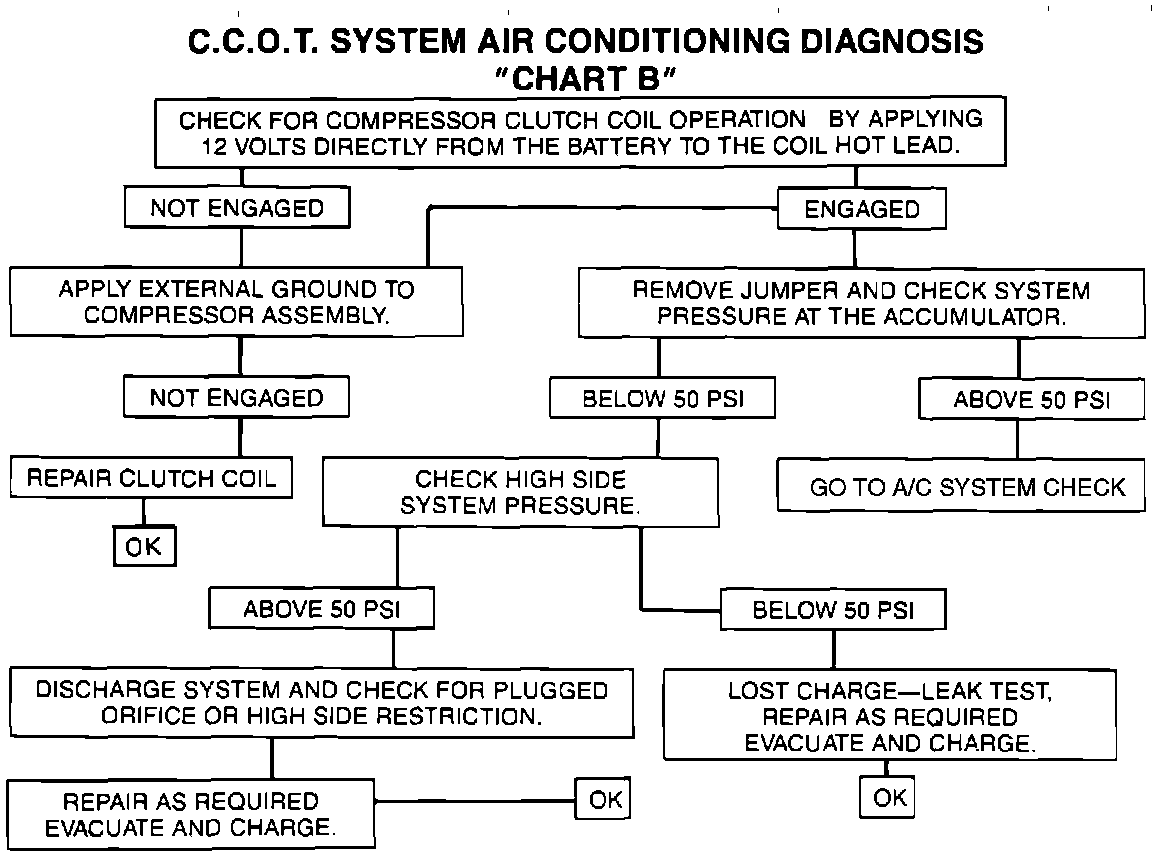

Fig. 21b A/C cooling system diagnosis (Part 2 of 5). Models w/CCOT system:
