Chart A - C.C.O.T. System
Chart A - C.C.O.T. System

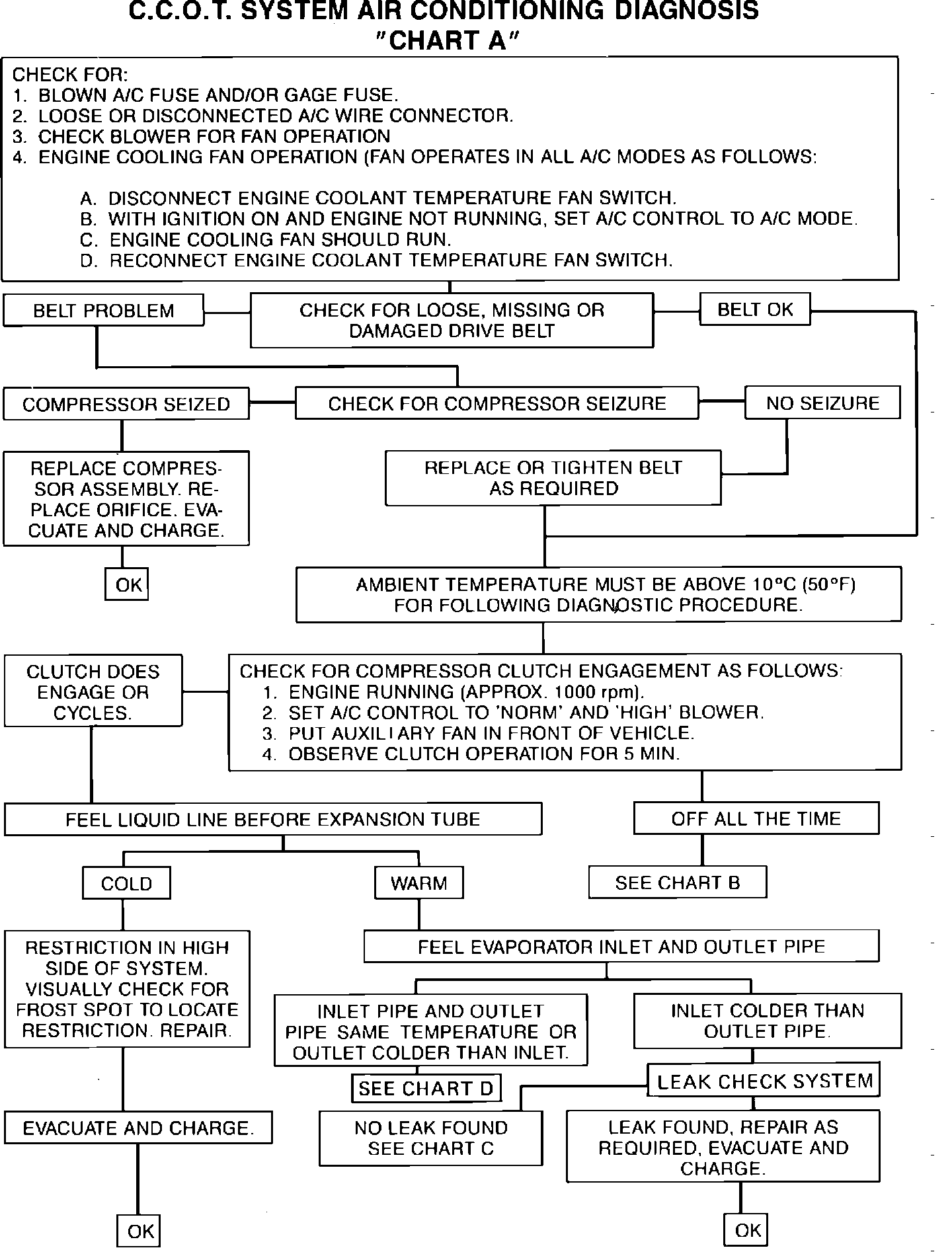

Fig. 21a A/C cooling system diagnosis (Part 1 of 5). Models w/CCOT system:
