Distributor: Specifications

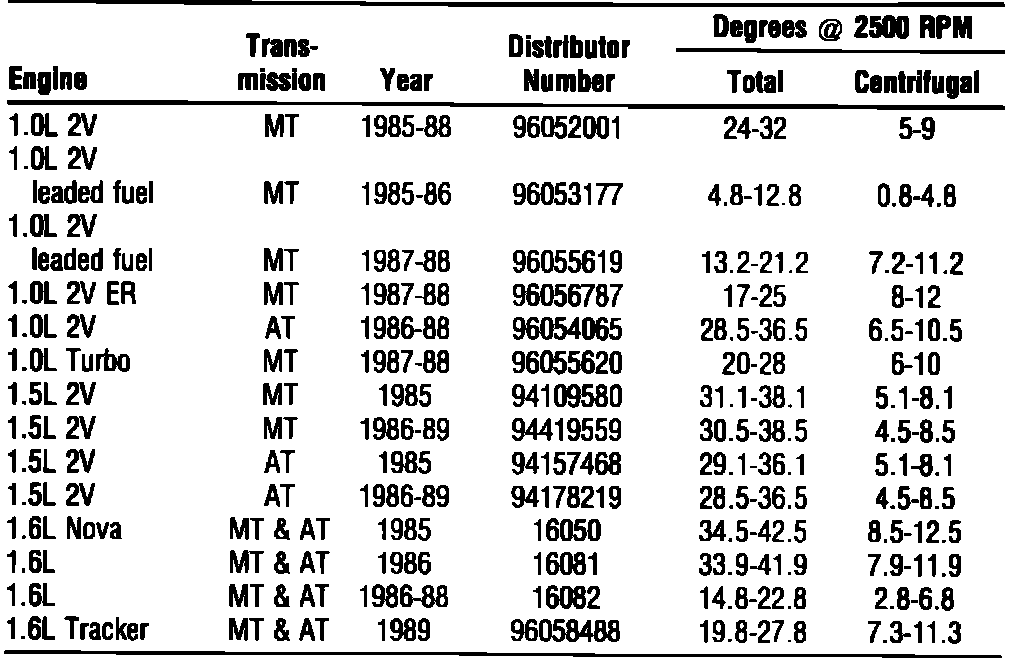

Distributor Timing Advance:





Engine degrees at engine rpm, no load, in addition to basic timing setting.
Mechanical advance distributors only.
