Home >> Chevrolet >> 1987 >> Sprint-Import L3-061 1000cc 1.0L Turbo VIN 2 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G100, G114, G400 & G401

G100, G114, G400 & G401

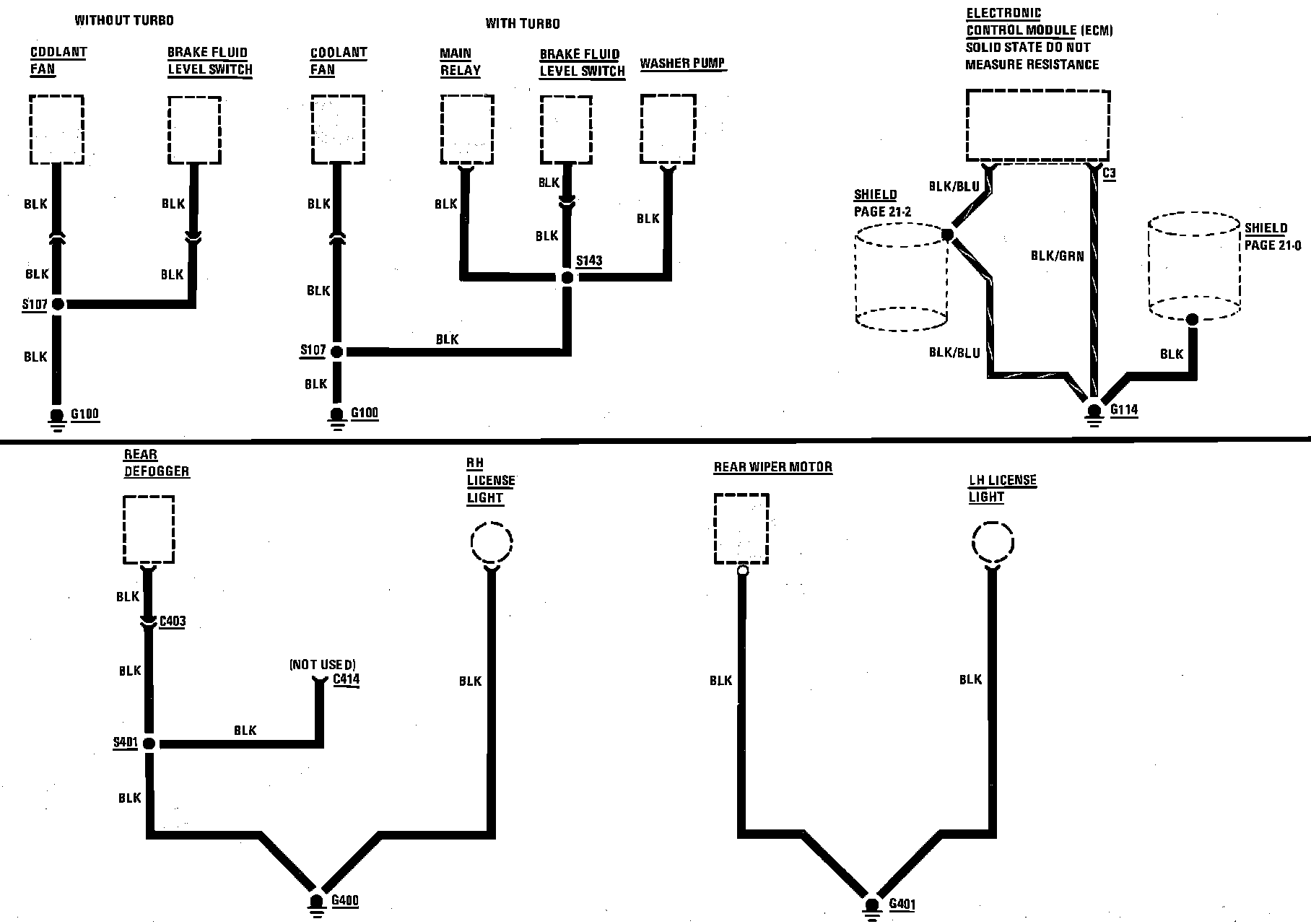

Fig. 23 Ground Distribution. G100, G114, G400 & G401:
