Electrical Load Input & Engine Turbo Indicator Control
Electrical Load Input & Engine Turbo Indicator Control

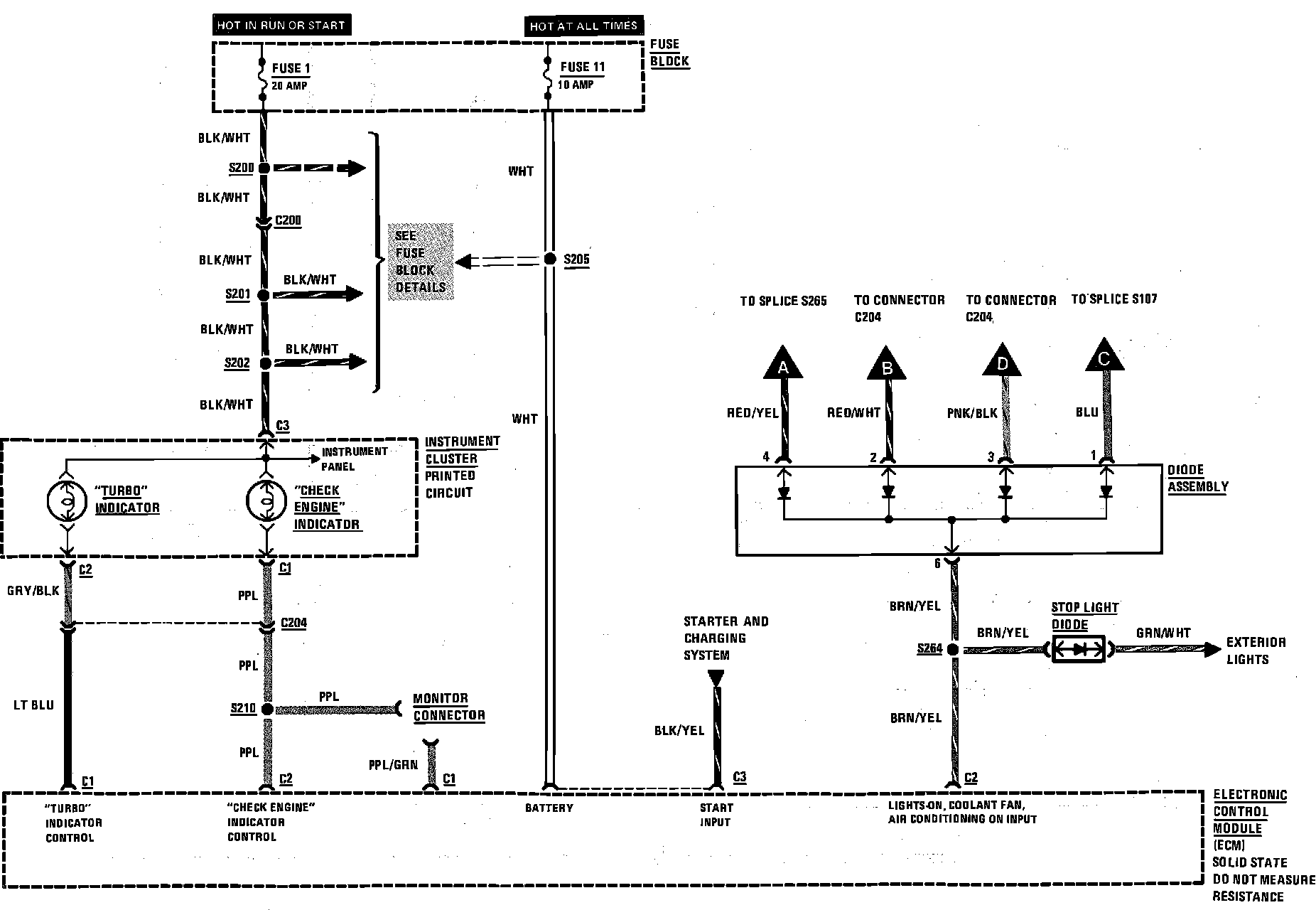

Fig. 36 Multi-Port Fuel Injection Wiring Circuit. Turbo Engine (Electrical Load Input & Engine Turbo Indicator Control):
