Electrical Load Input & Engine Data Sensors

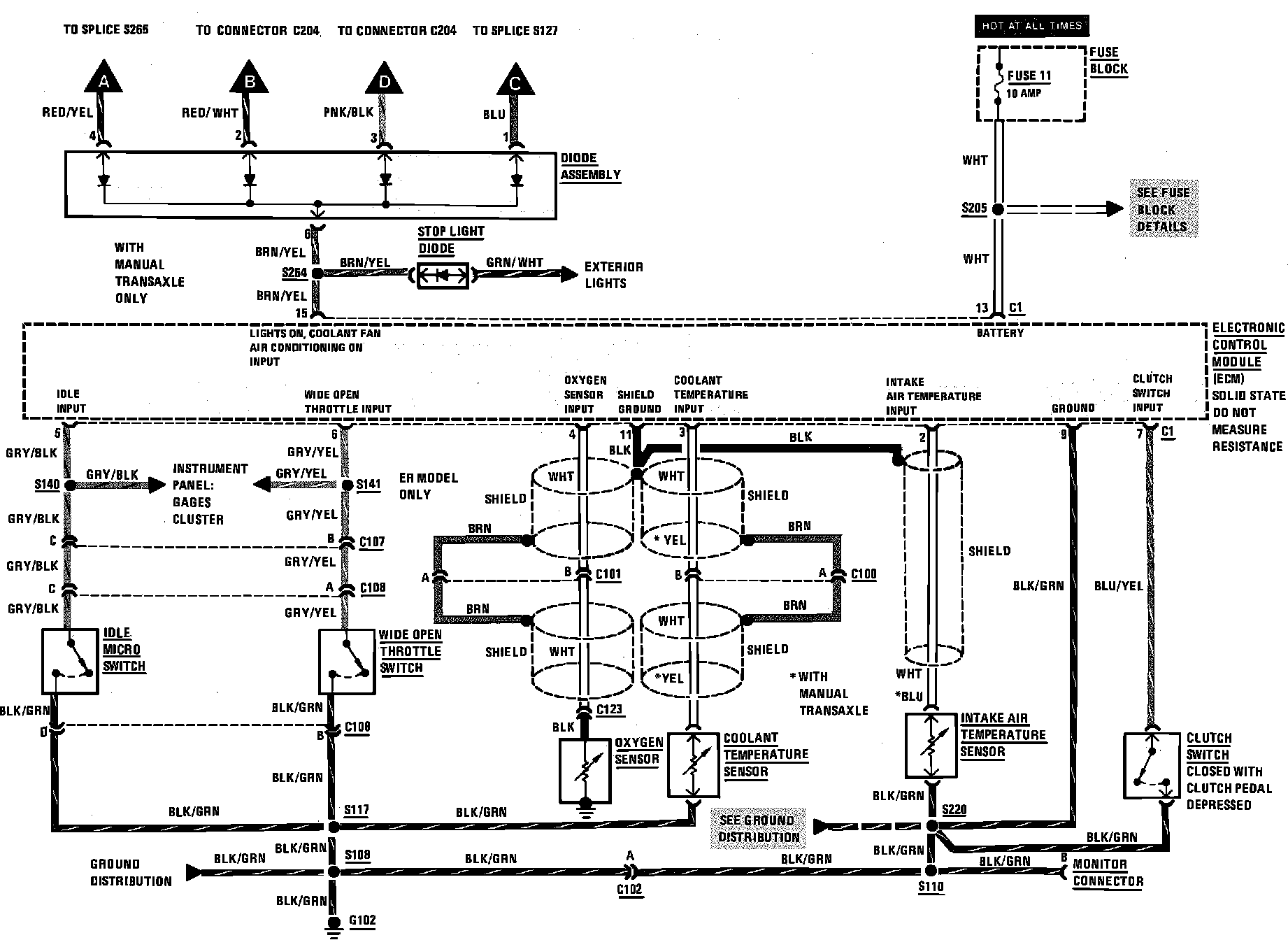

Fig. 16 Electronic Engine Controls Wiring Circuit. Electrical Load Input & Engine Data Sensors:
