Home >> Chevrolet >> 1987 >> Sprint-Import L3-061 1000cc 1.0L Turbo VIN 2 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Diagnosis & Vehicle Data Sensors

Diagnosis & Vehicle Data Sensors

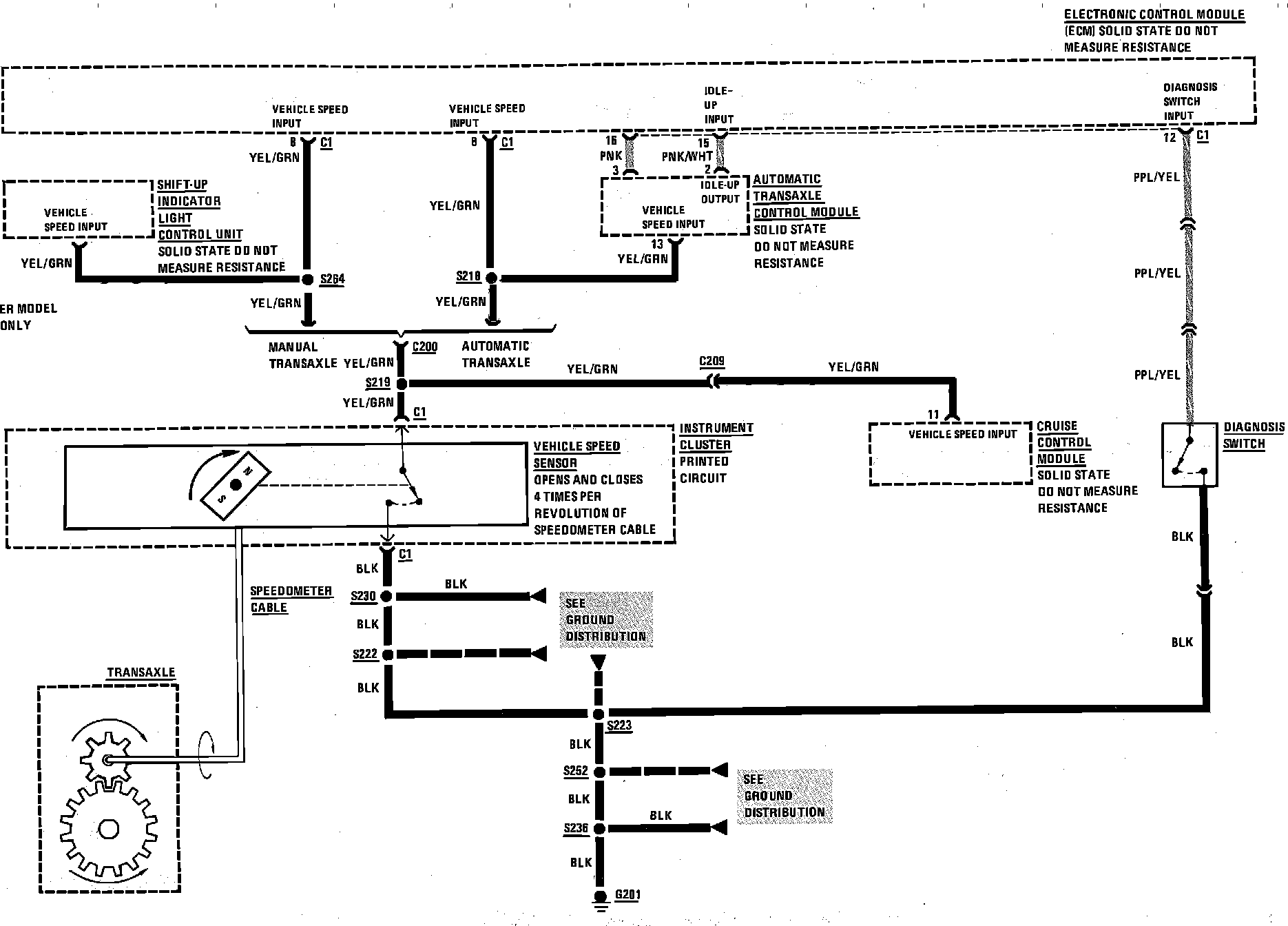

Fig. 15 Electronic Engine Controls Wiring Circuit. Diagnosis & Vehicle Data Sensors:
