Sprint-Import L3-061 1000cc 1.0L Turbo VIN 2 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
AIR, Diagnosis, Emission Control & Engine Data Sensors
AIR, Diagnosis, Emission Control & Engine Data Sensors

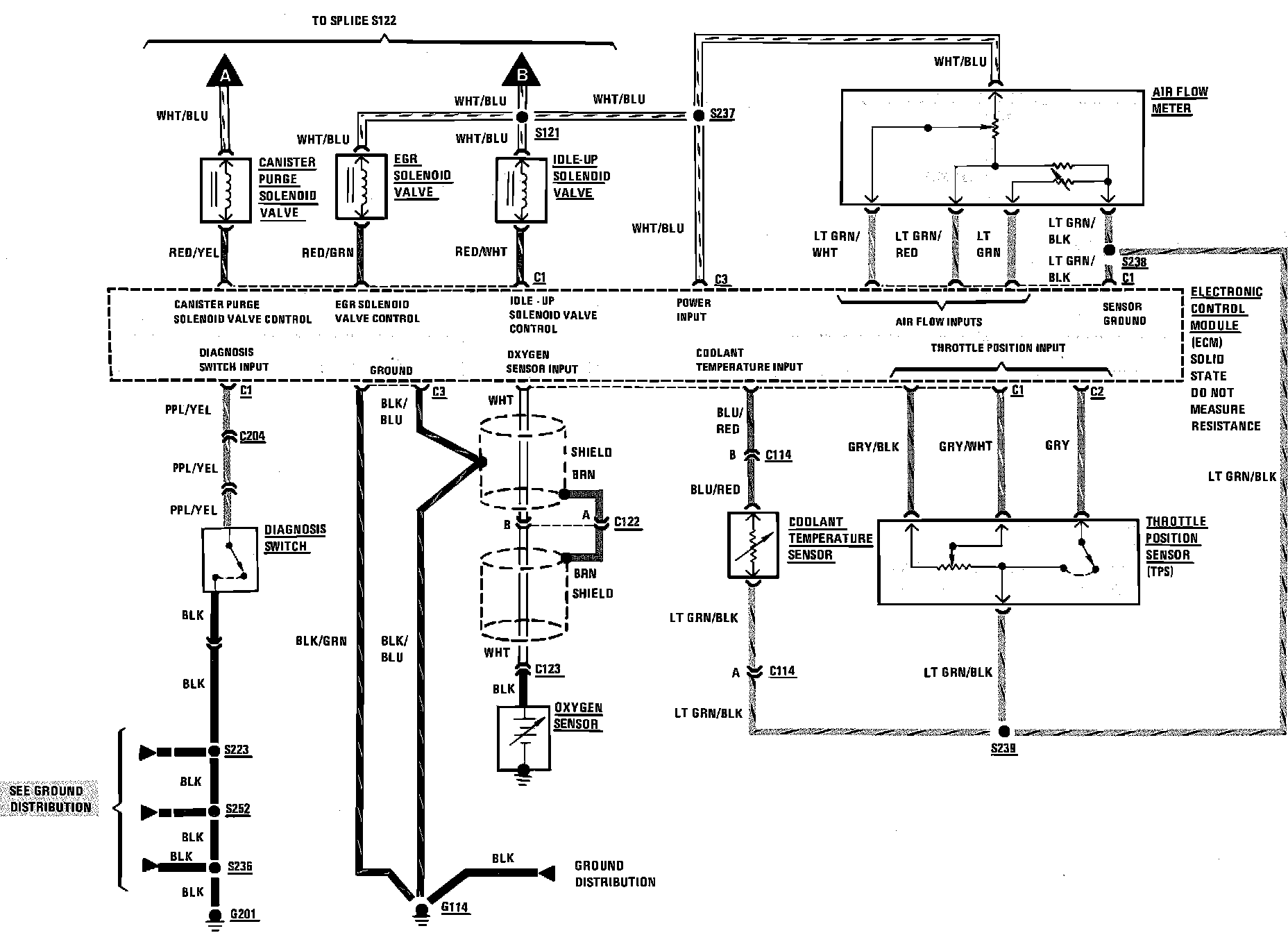

Fig. 35 Multi-Port Fuel Injection Wiring Circuit. Turbo Engine (Air, Diagnosis, Emission Control & Engine Data Sensors:
