Home >> Chevrolet >> 1987 >> Sprint-Import L3-061 1000cc 1.0L Turbo VIN 2 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Panel >> With Gauges Cluster

With Gauges Cluster

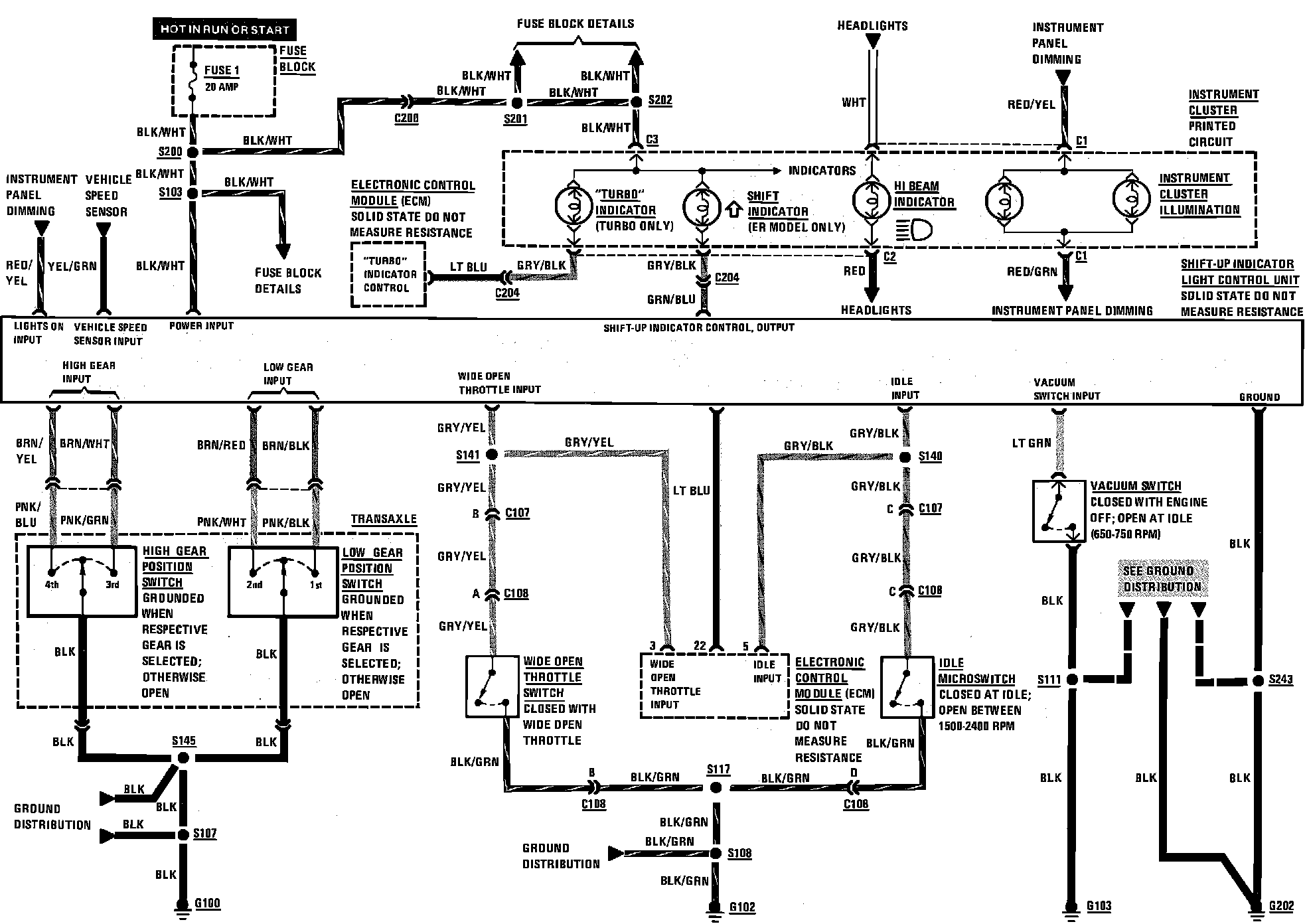

Fig. 31a Instrument Panel Wiring Circuit. (Part 1 of 3). Gages Cluster:

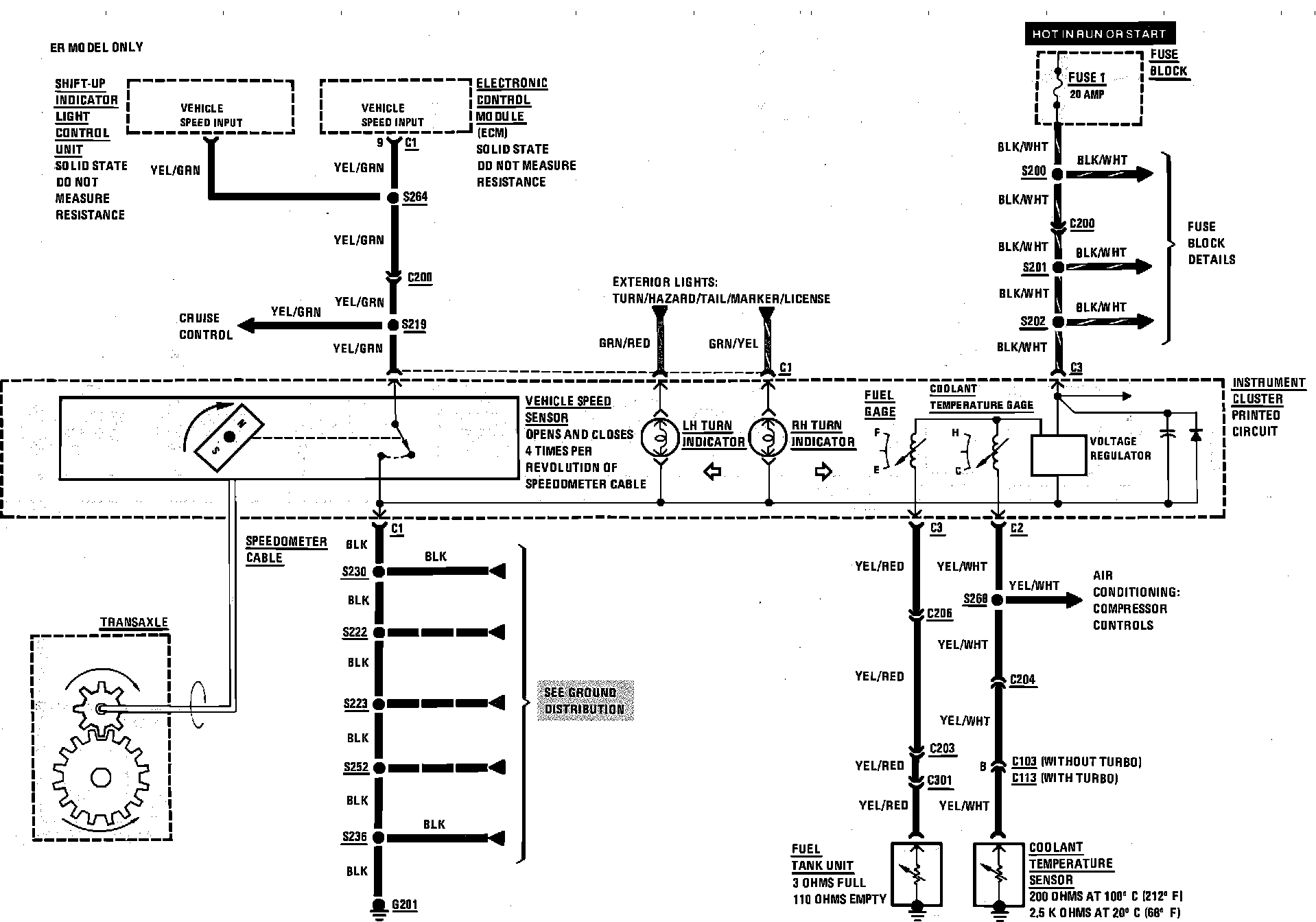

Fig. 31b Instrument Panel Wiring Circuit. (Part 2 of 3). Gages Cluster:



Fig. 31c Instrument Panel Wiring Circuit. (Part 3 of 3). Gages Cluster:
