Sprint-Import L3-061 1000cc 1.0L Turbo VIN 2 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Alarm & Warning System
Alarm & Warning System

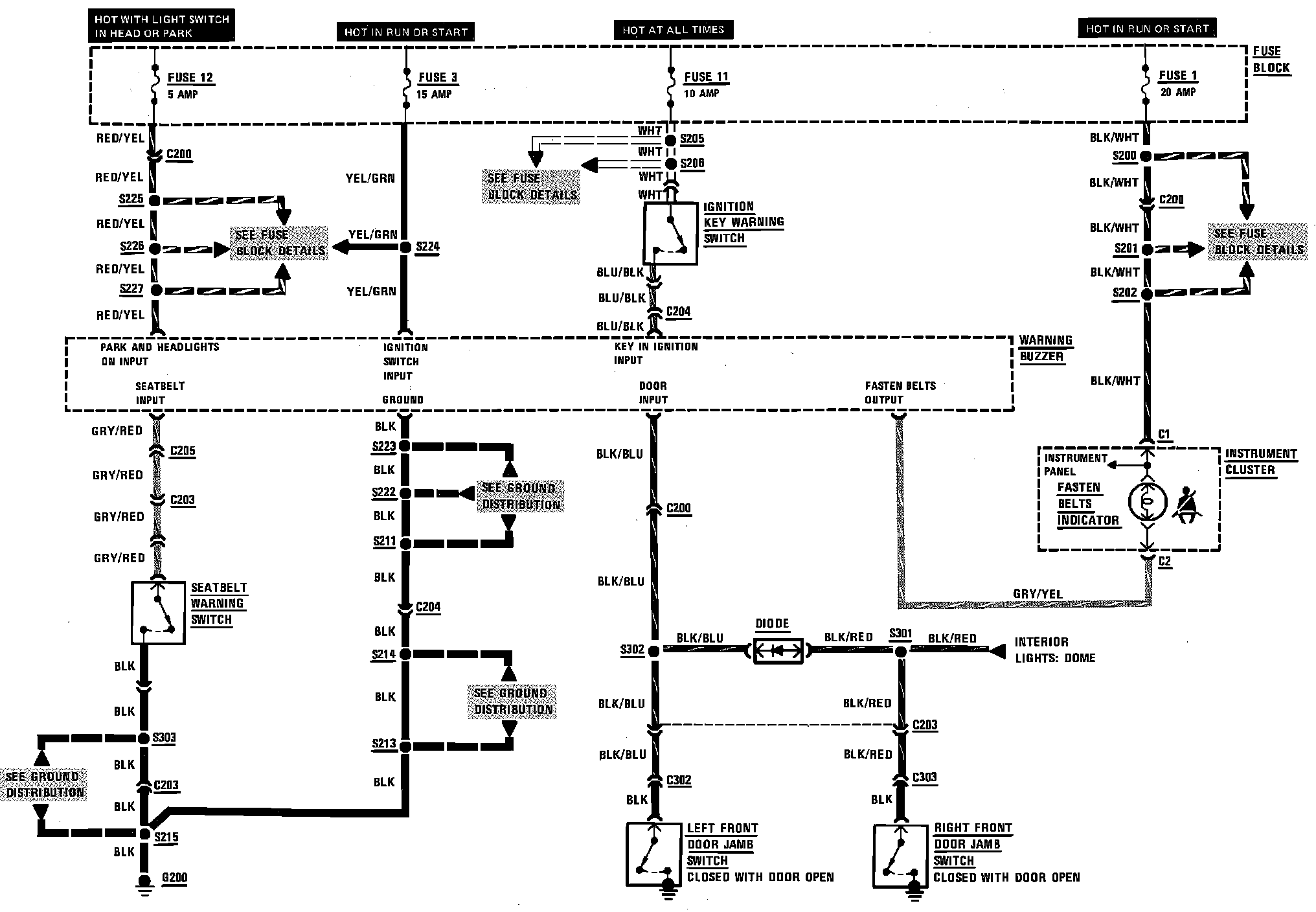

Fig. 5 Alarm & Warning Wiring Circuit:
