Home >> Chevrolet >> 1987 >> Sprint-Import L3-061 1000cc 1.0L Turbo VIN 2 FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Compressor Controls >> Early Production Models >> Part 1 of 2

Part 1 of 2

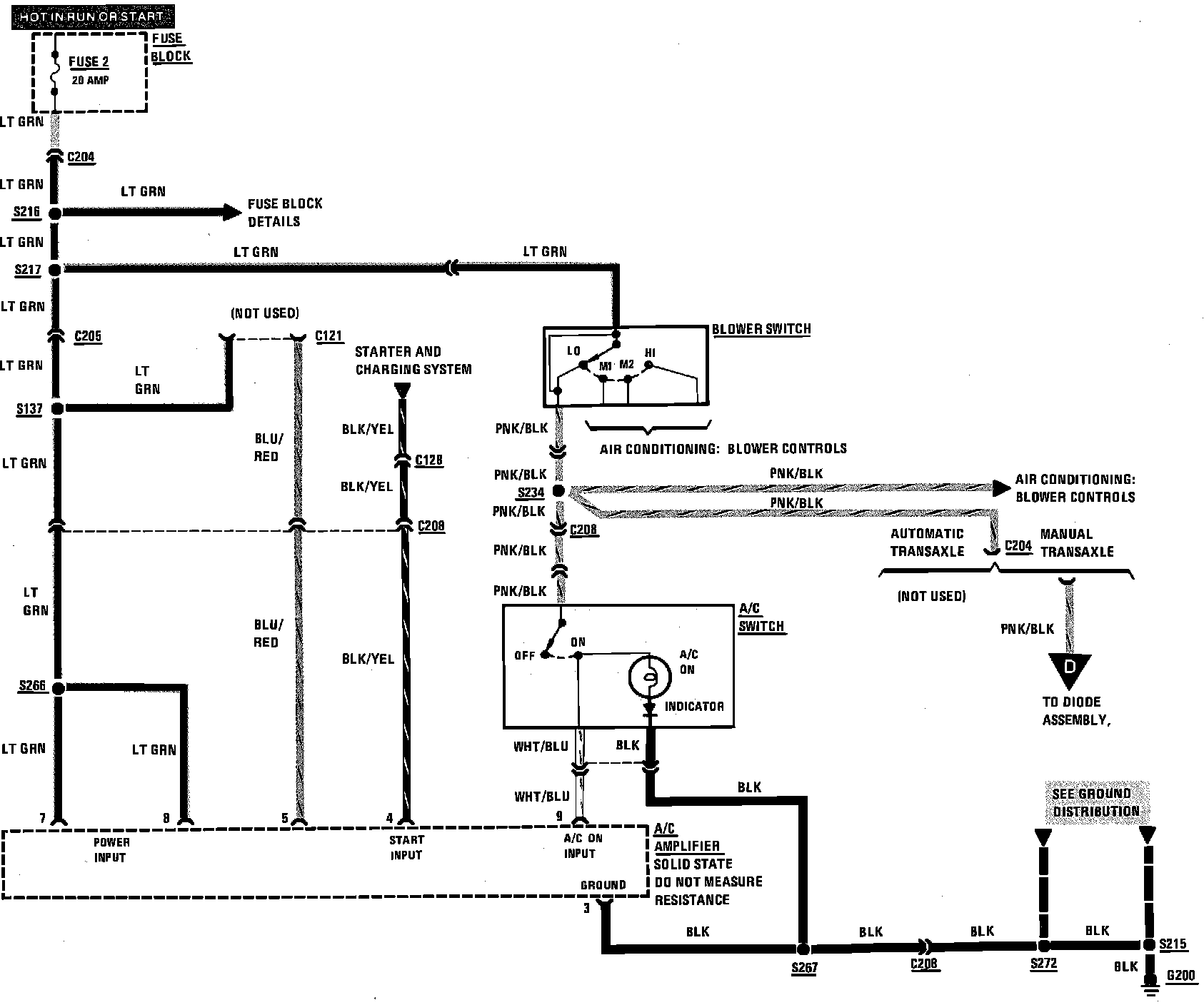

Fig. 3a Air Conditioning & Heater Compressor Controls Wiring Circuit (Part 1 of 2). Early Production Models:
