Sprint-Import L3-061 1000cc 1.0L Turbo VIN 2 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Ignition Coil
Ignition Coil

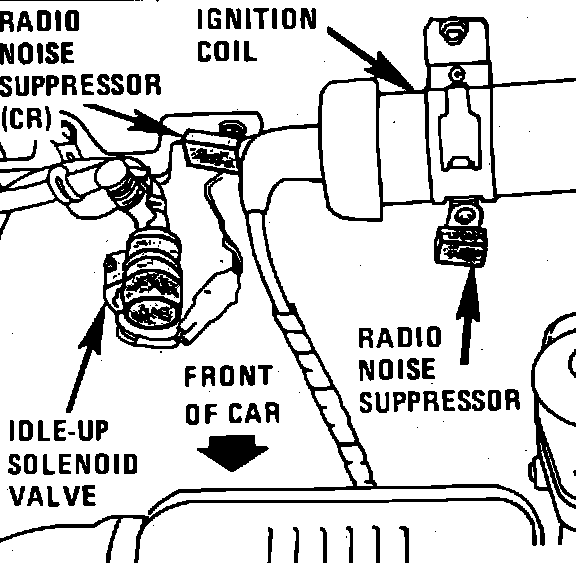

Left Side Of Cowl:

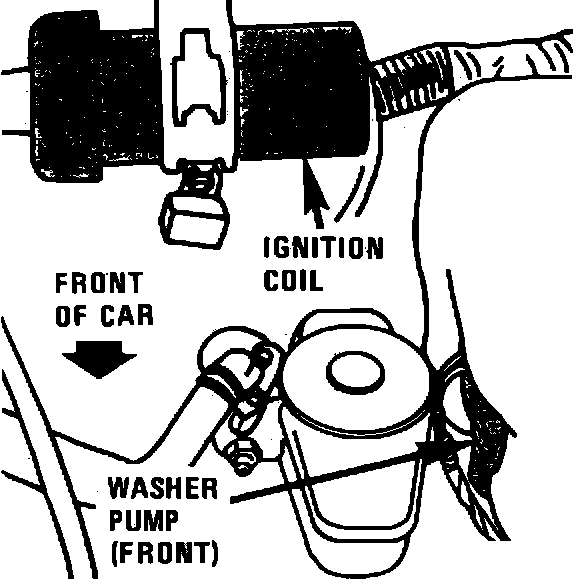

Left Rear Corner Of Engine Compartment:
LH Side Of Engine Compartment, Mounted To Cowl
Applicable to: Turbo
