Cold Start Injector

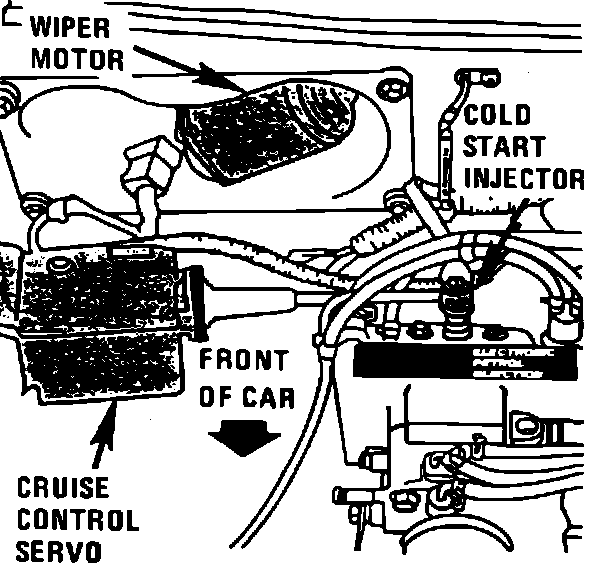

Top Right Side Of Engine:




Mounted To Rear Of Engine Near Wiper Motor

Applicable to: Turbo
