Sprint-Import L3-061 1000cc 1.0L Turbo VIN 2 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>

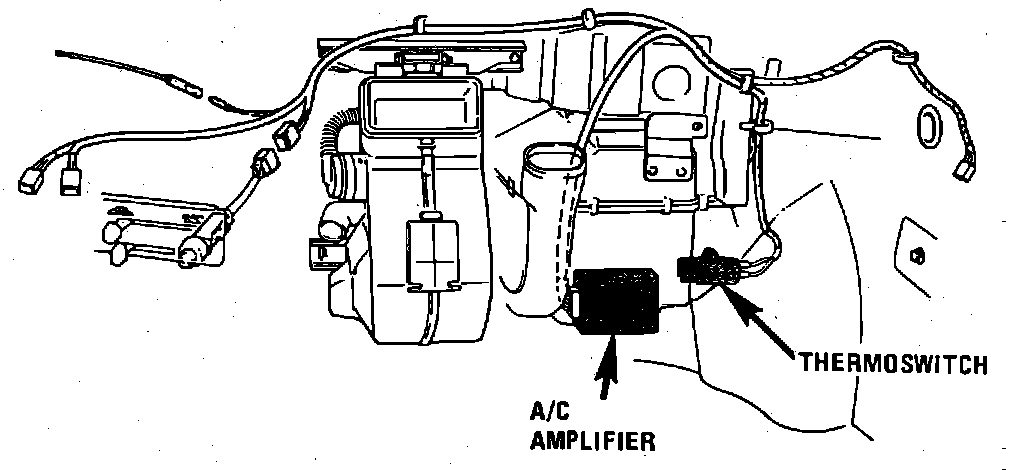

A/C Amplifier
A/C Amplifier
A/C Components Under I/P:
Behind Right Side Of I/P
