Home >> Chevrolet >> 1987 >> Sprint-Import L3-061 1000cc 1.0L Turbo VIN 2 FI >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Manual Transmission >> Part 1 of 2

Part 1 of 2

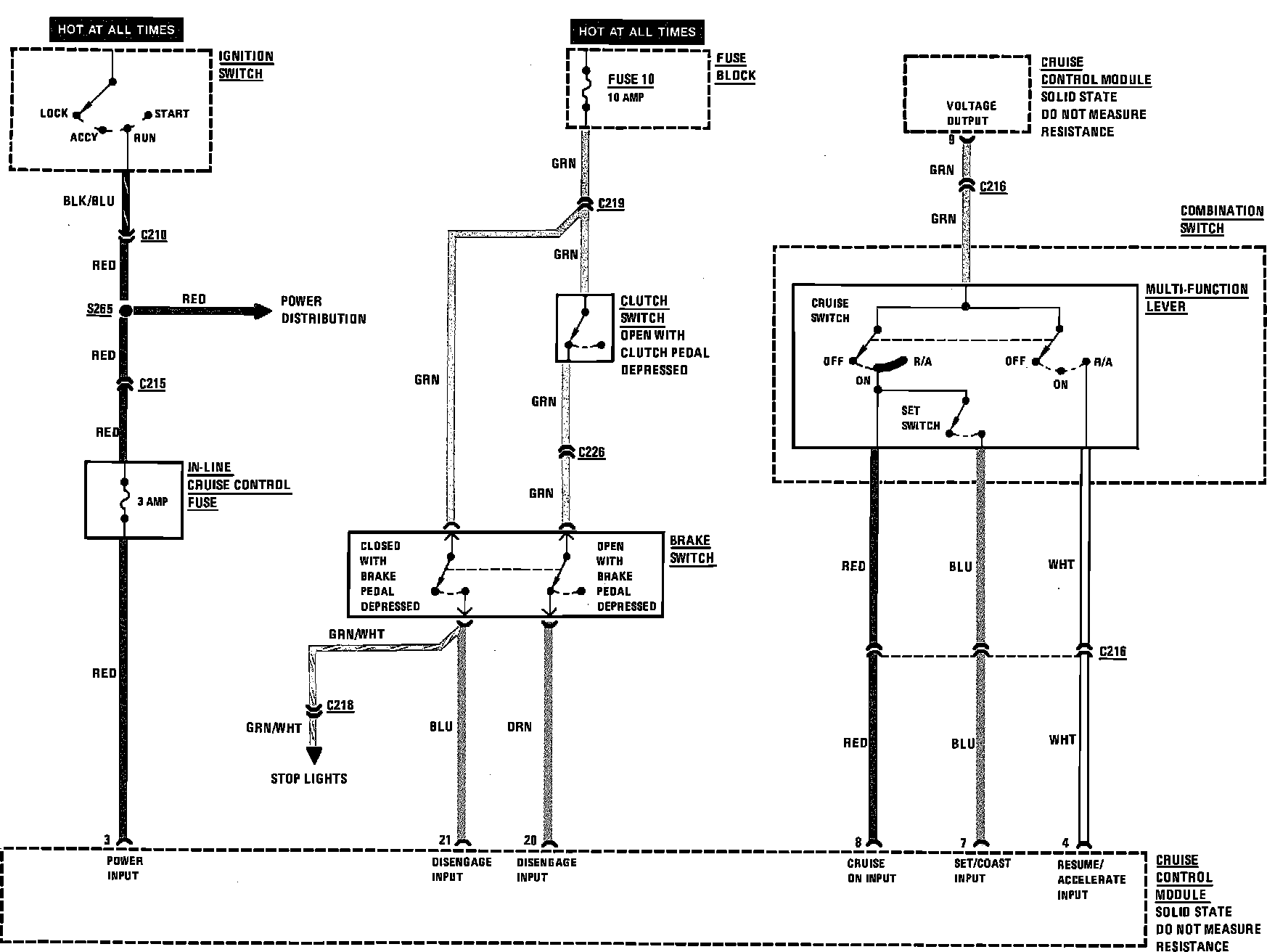

Fig. 12c Cruise Control Wiring Circuit. Manual Transmission. (Part 1 of 2):
