Engine Control Module





ECM Connector

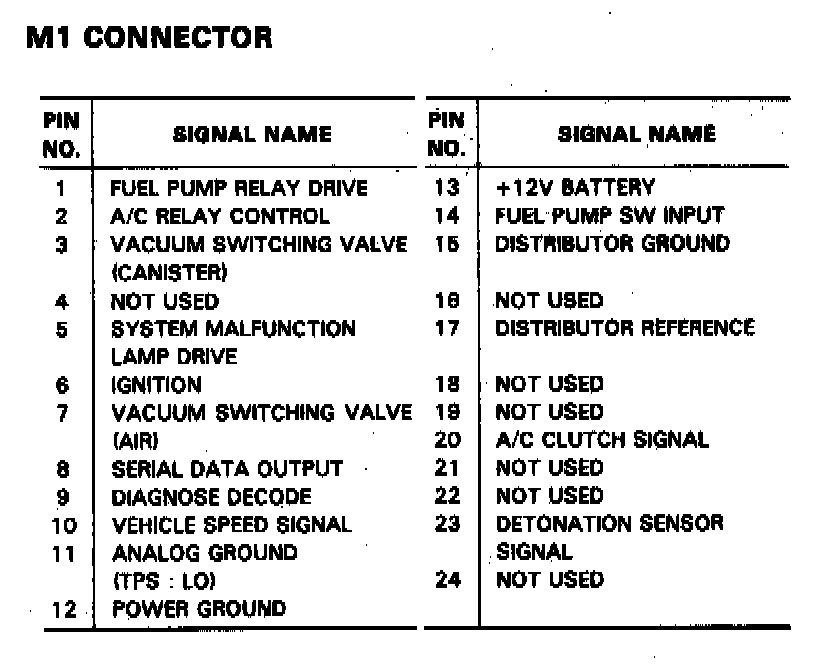

M1 Connector Identification






M2 Connector Identification
