Pick-Up Coil: Testing and Inspection

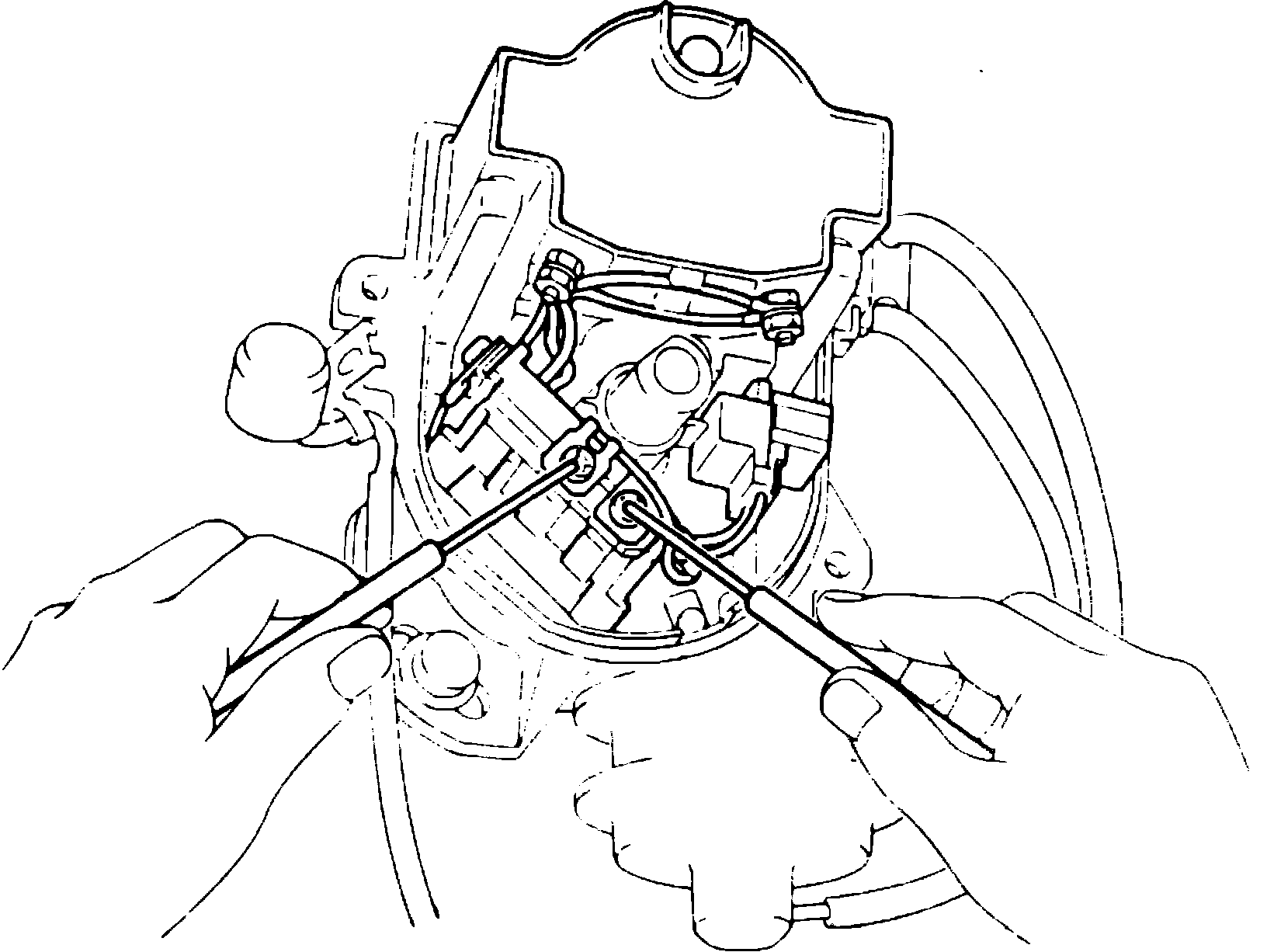

Fig. 3 Measuring pickup coil resistance:

1. Place ignition switch in ``Off'' position.
2. Remove distributor cap, then disconnect pickup coil wire from module.
3. Measure resistance across pickup coil as shown, Fig. 3.
