Ignition Controls

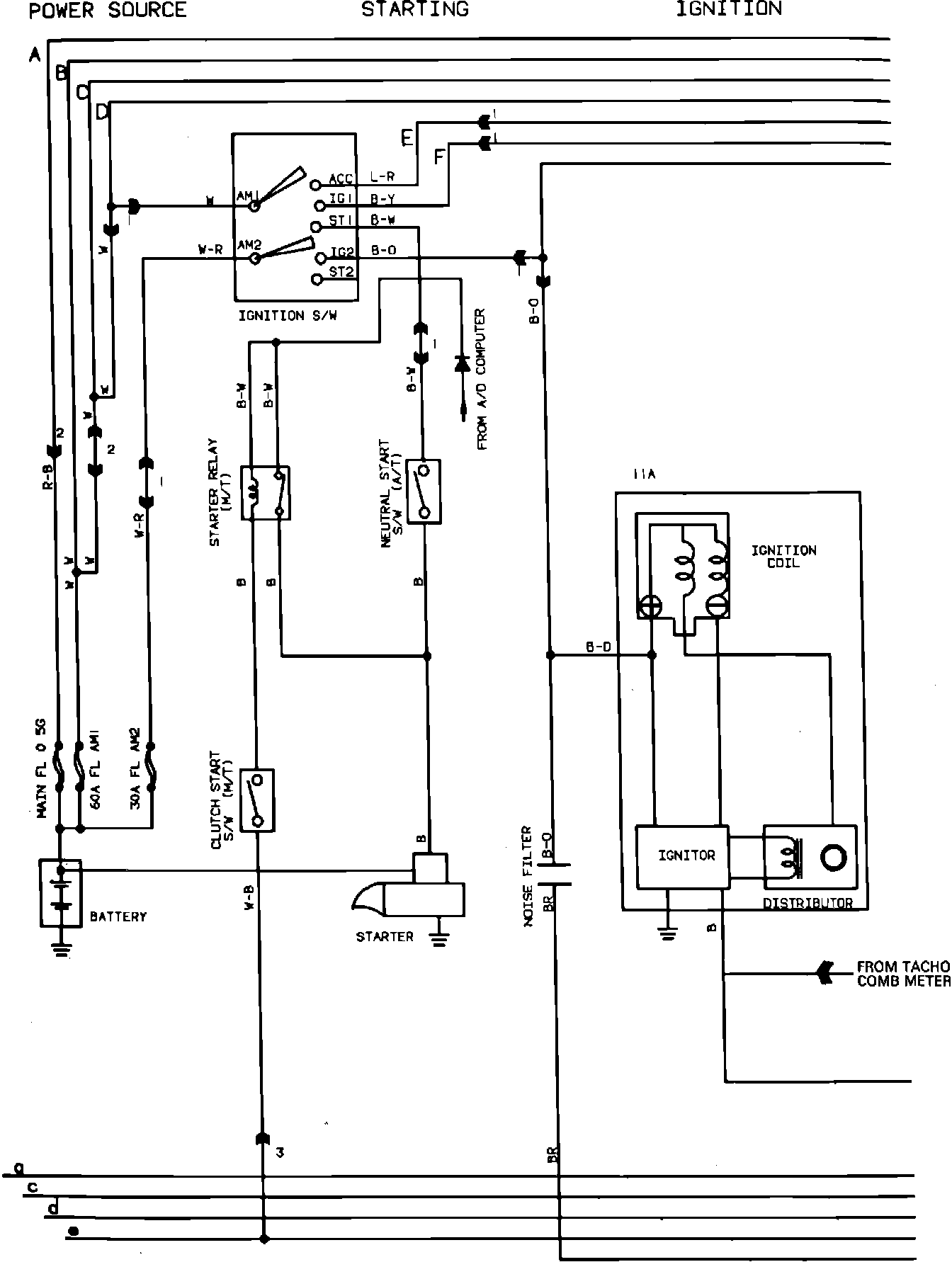

Part 1 Of 14 Starting And Ignition:

The wiring diagrams for this vehicle only exist as one complete chassis wiring diagram. The wiring diagram above is only part of the complete wiring diagram as it relates to the Ignition System.

To view circuits not included in this diagram, refer to the complete list of diagrams located at Vehicle Diagrams. Complete Body Wiring
