Starting and Charging: Specifications

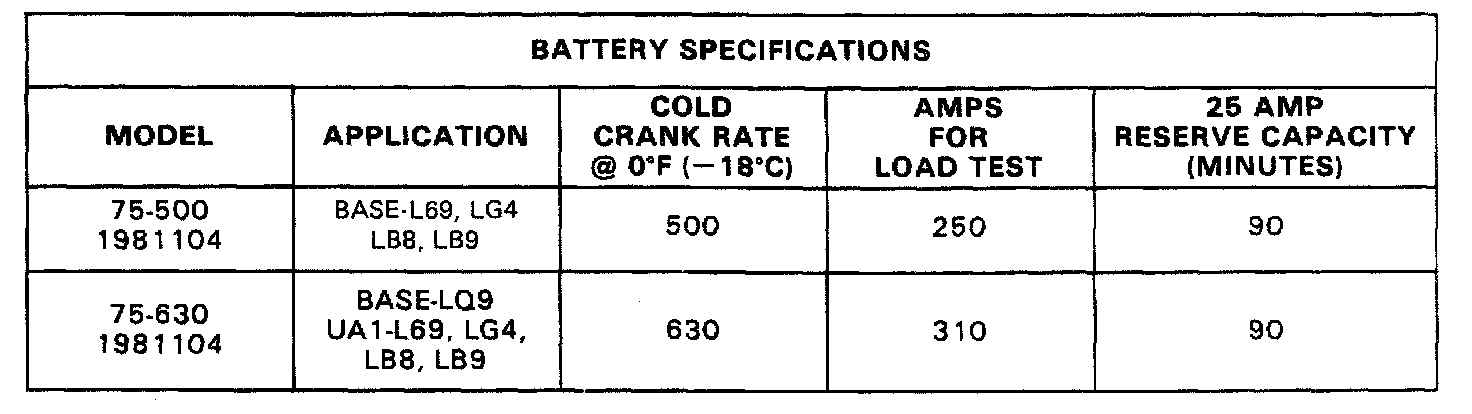

BATTERY SPECIFICATIONS

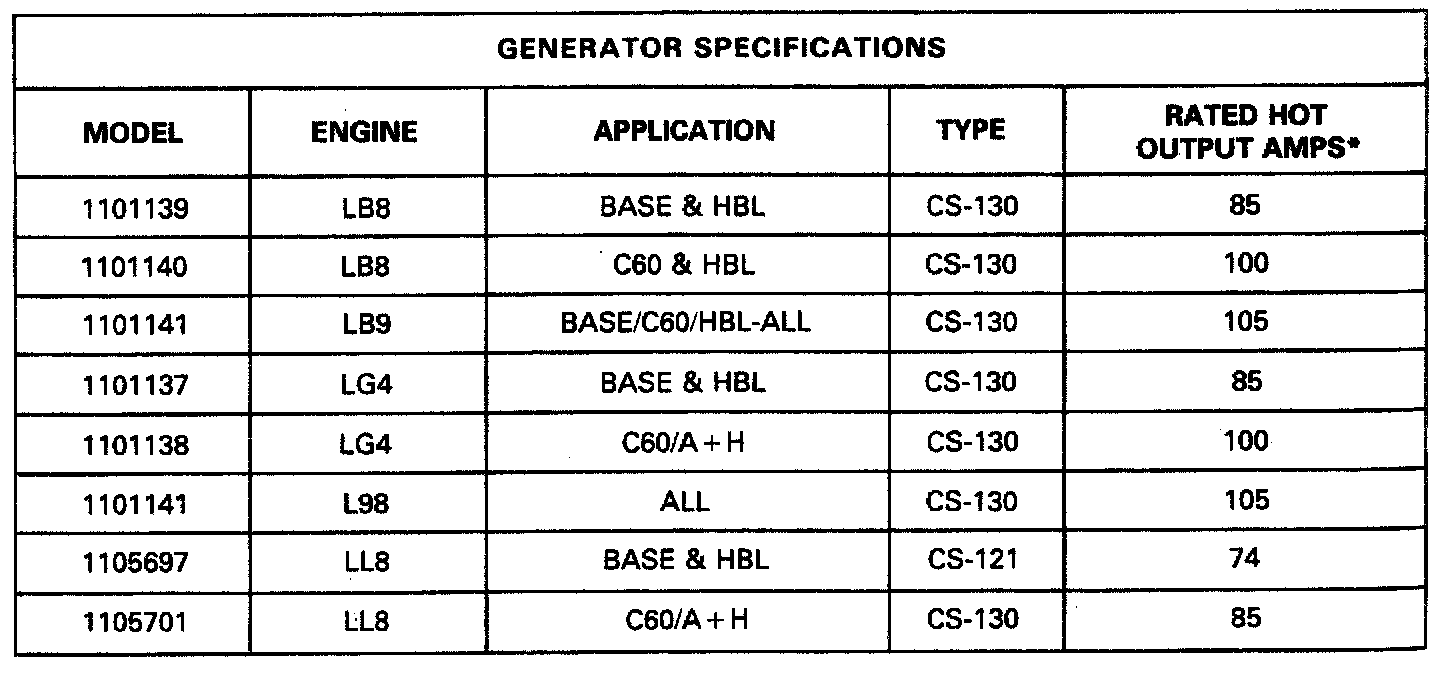

ALTERNATOR SPECIFICATIONS

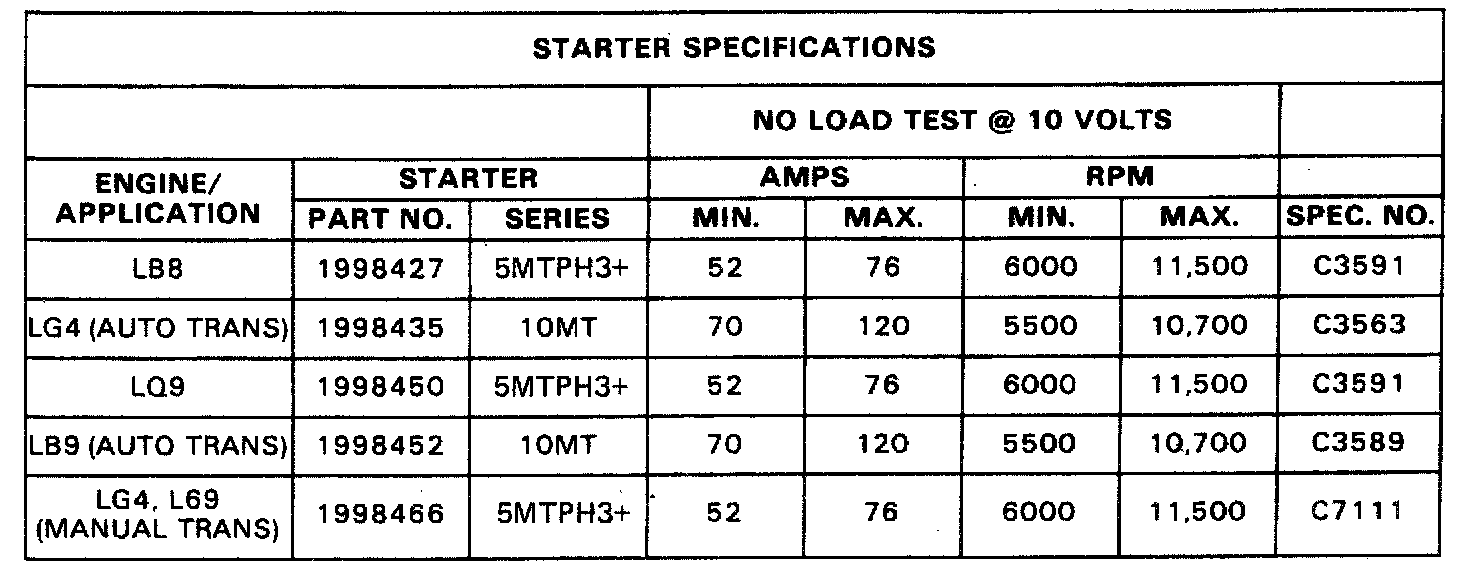

STARTER SPECIFICATIONS
