Camaro V8-305 5.0L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic/Powertrain Control Module (ECM/PCM)
>>
Electronic/Engine Control Module (ECM)
Electronic/Engine Control Module (ECM)

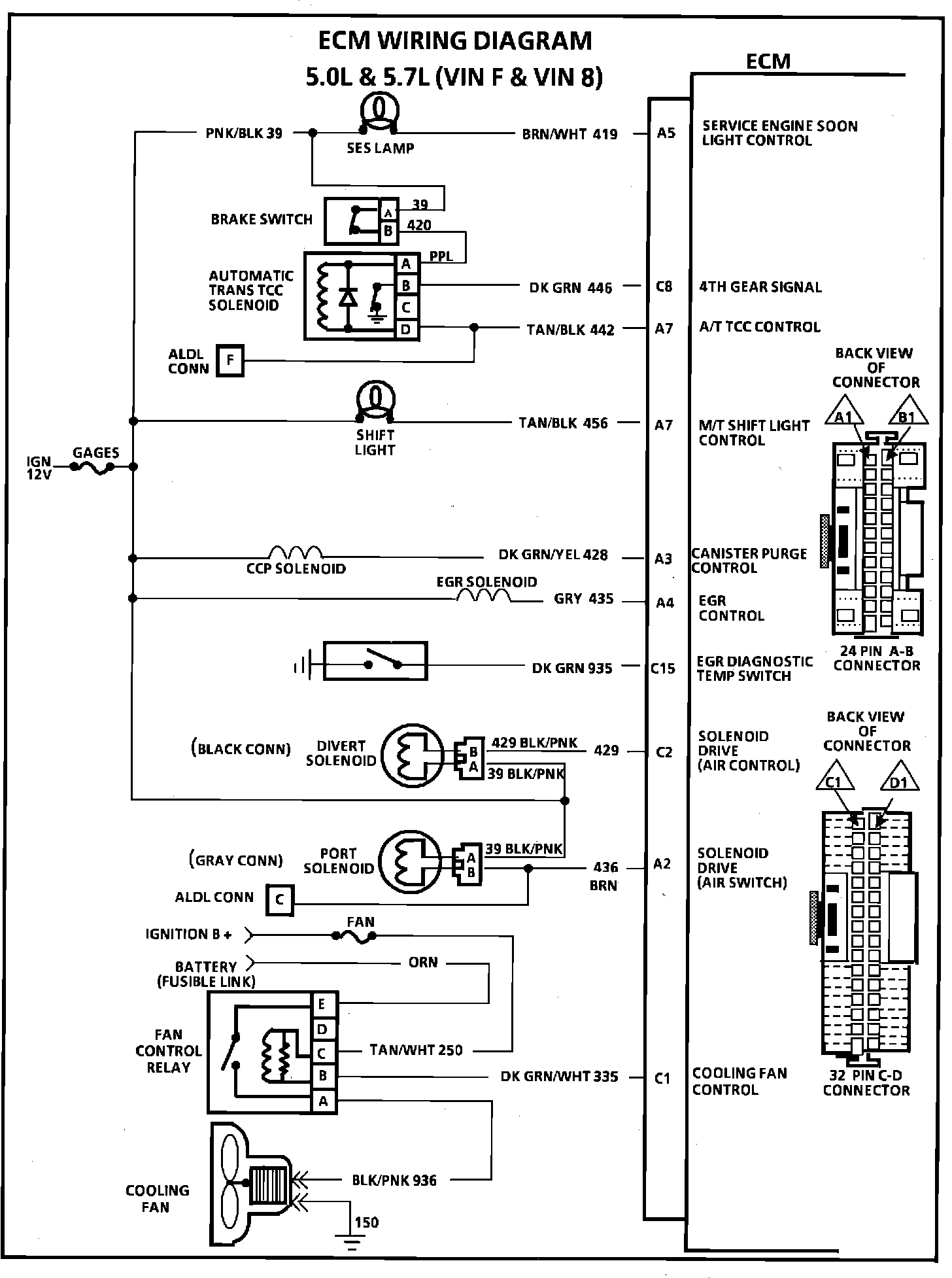

ECM Wiring Diagram (Part 1 of 4):

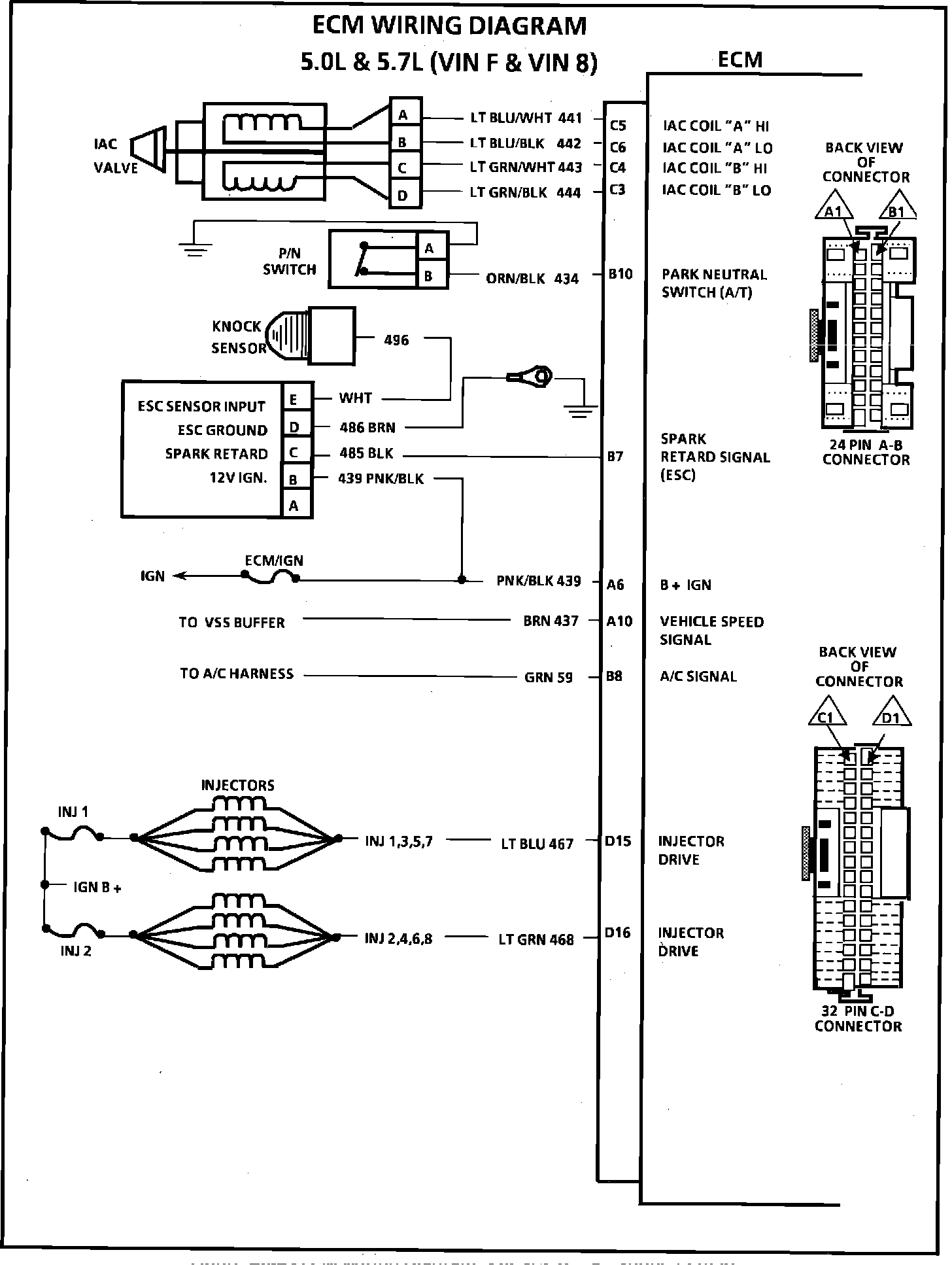

ECM Wiring Diagram (Part 2 of 4):

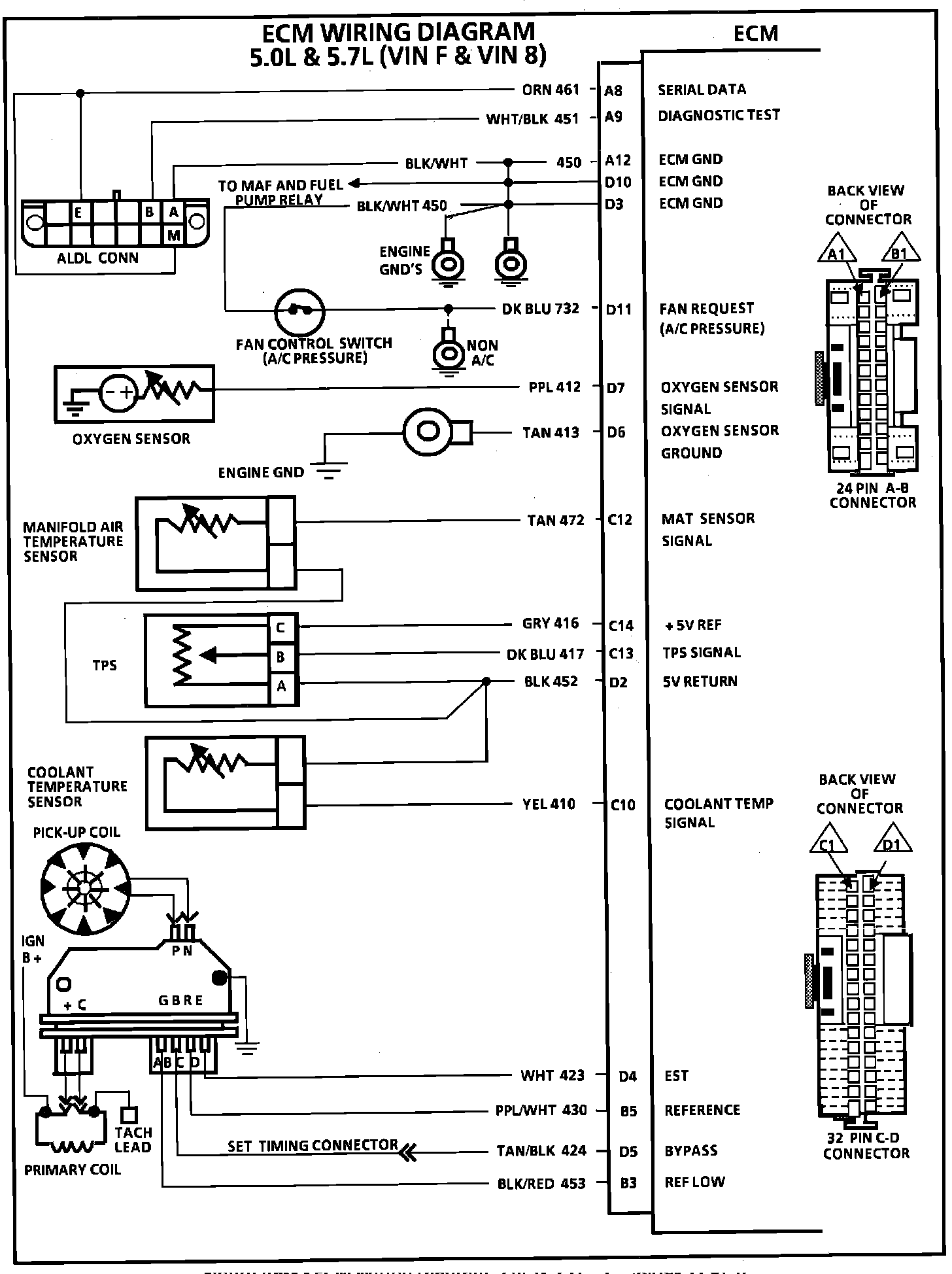

ECM Wiring Diagram (Part 3 of 4):

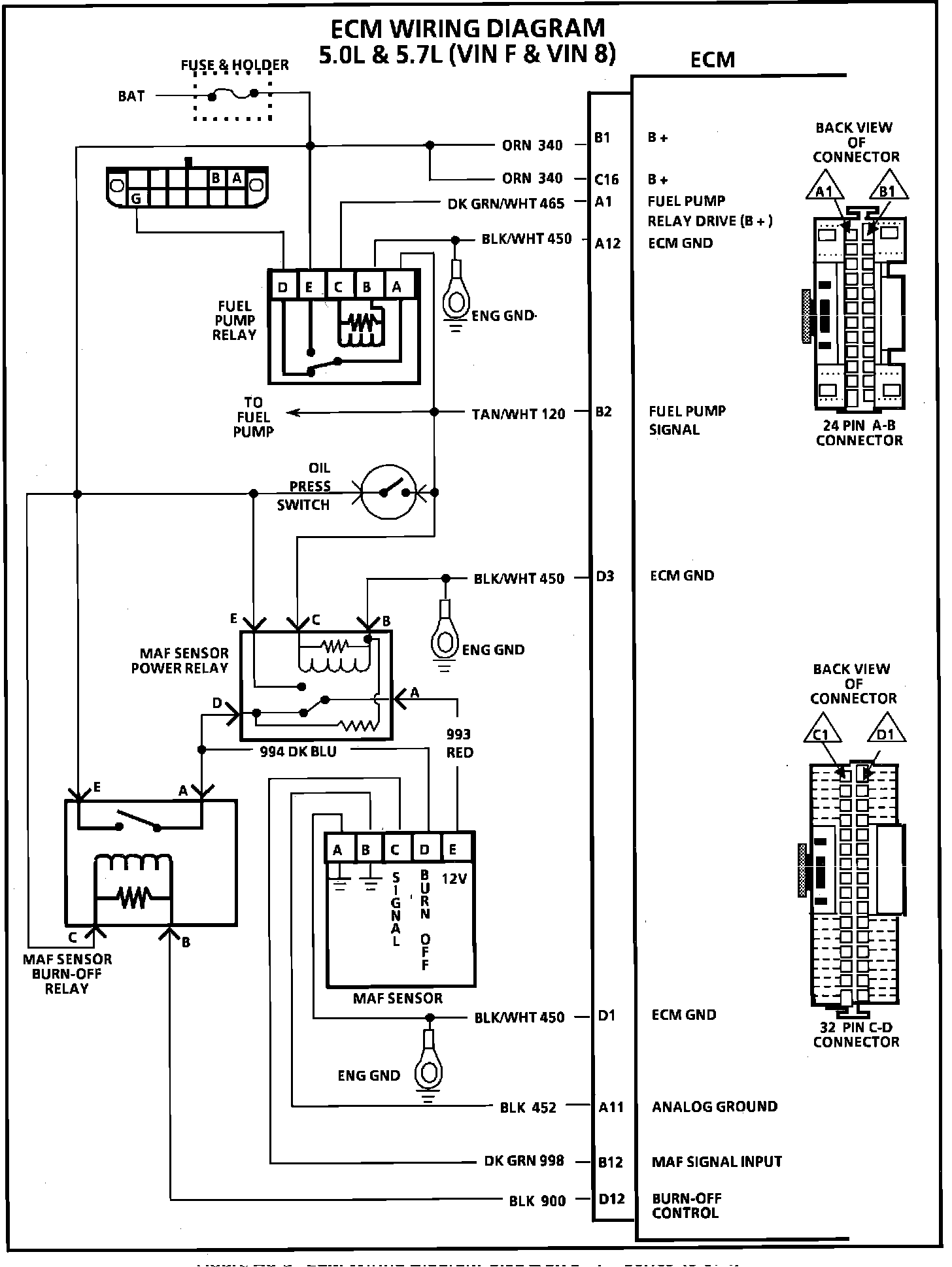

ECM Wiring Diagram (Part 4 of 4):
