Home >> Chevrolet >> 1985 >> Caprice V8-350 5.7L DSL >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls

Engine Controls

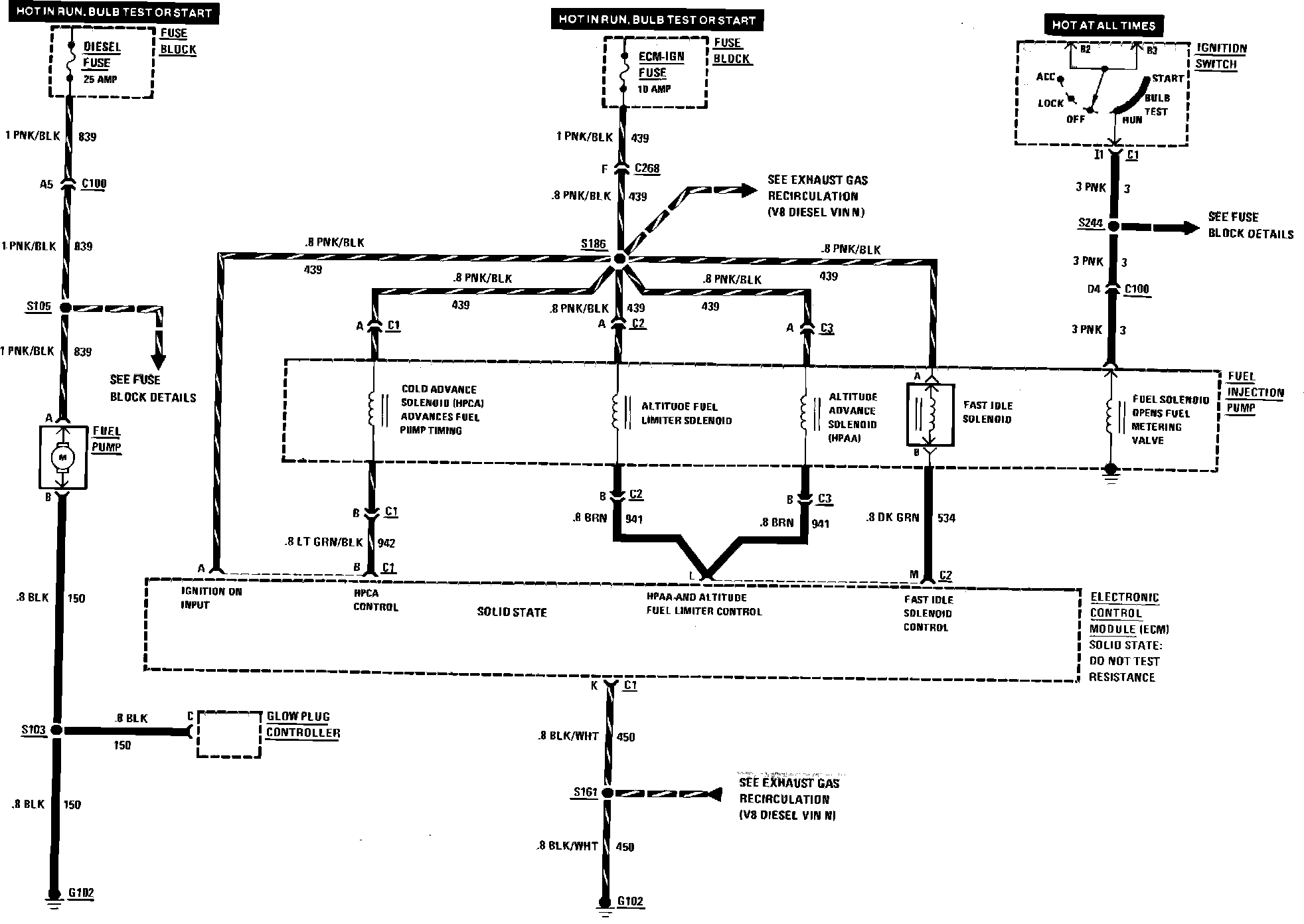

Computer Command Diesel Engine Control Wiring Circuit:

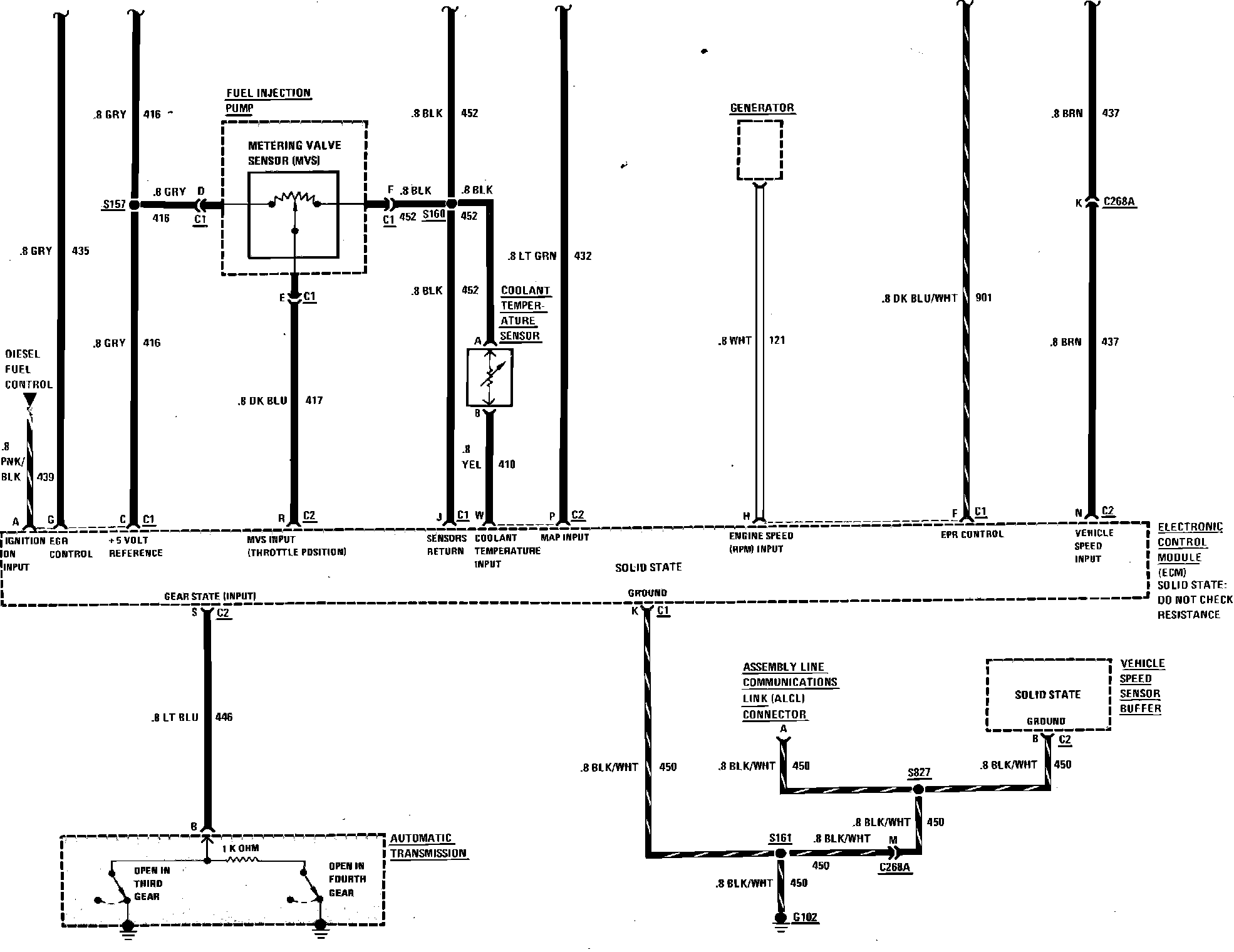

Computer Command Diesel Engine Control Wiring Circuit:

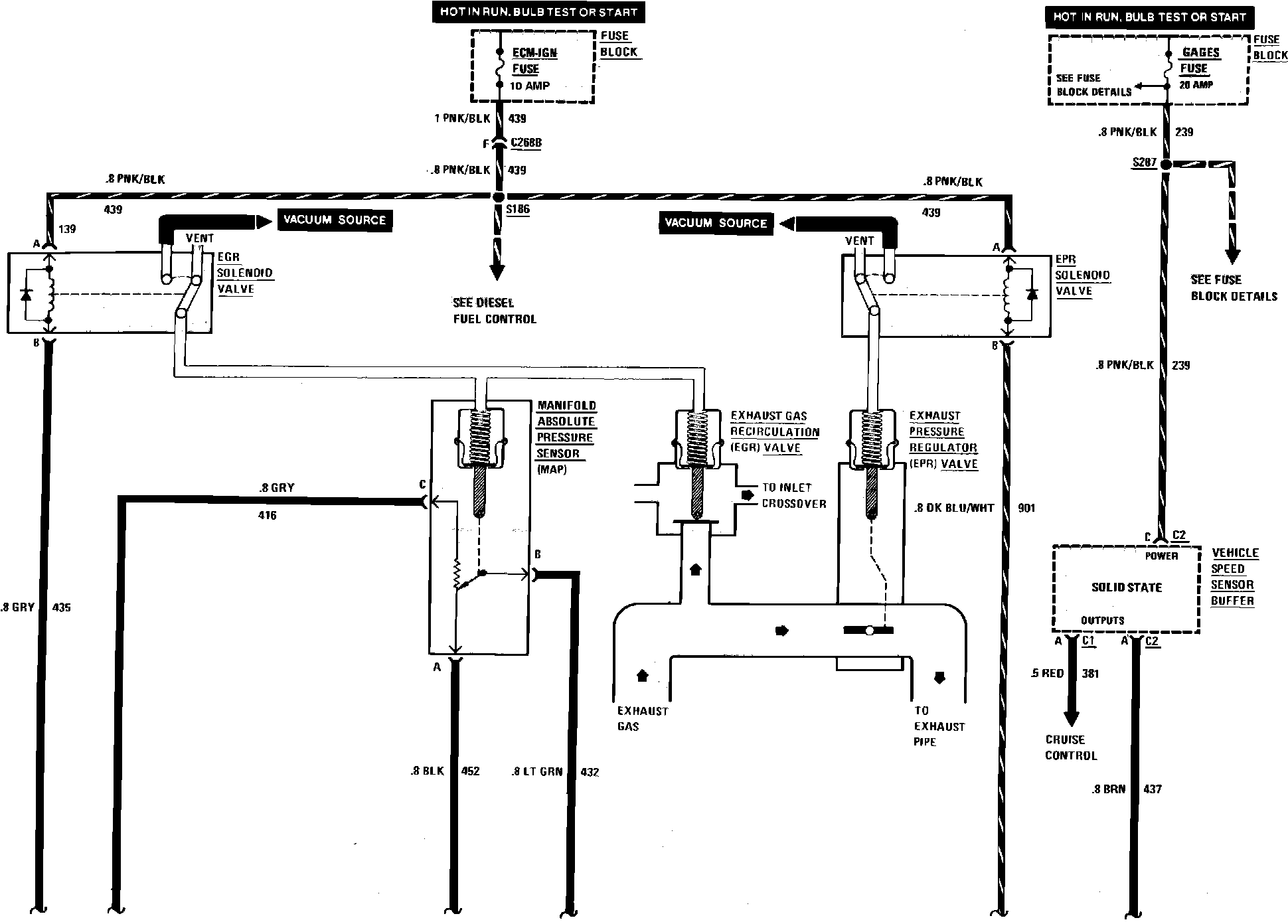

Computer Command Diesel Engine Control Wiring Circuit:

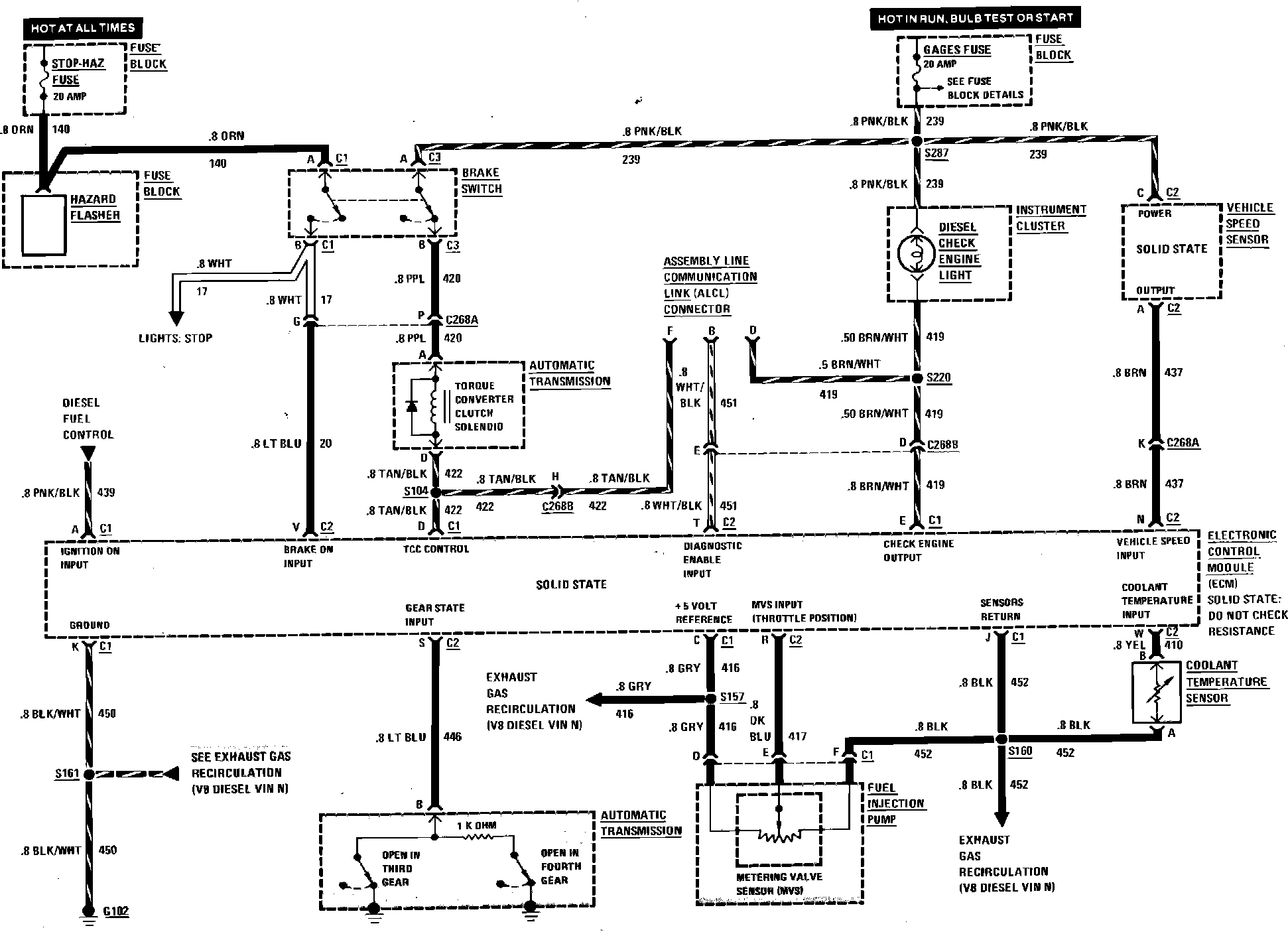

Computer Command Diesel Engine Control Wiring Circuit:
