Power Steering Pressure Switch: Testing and Inspection

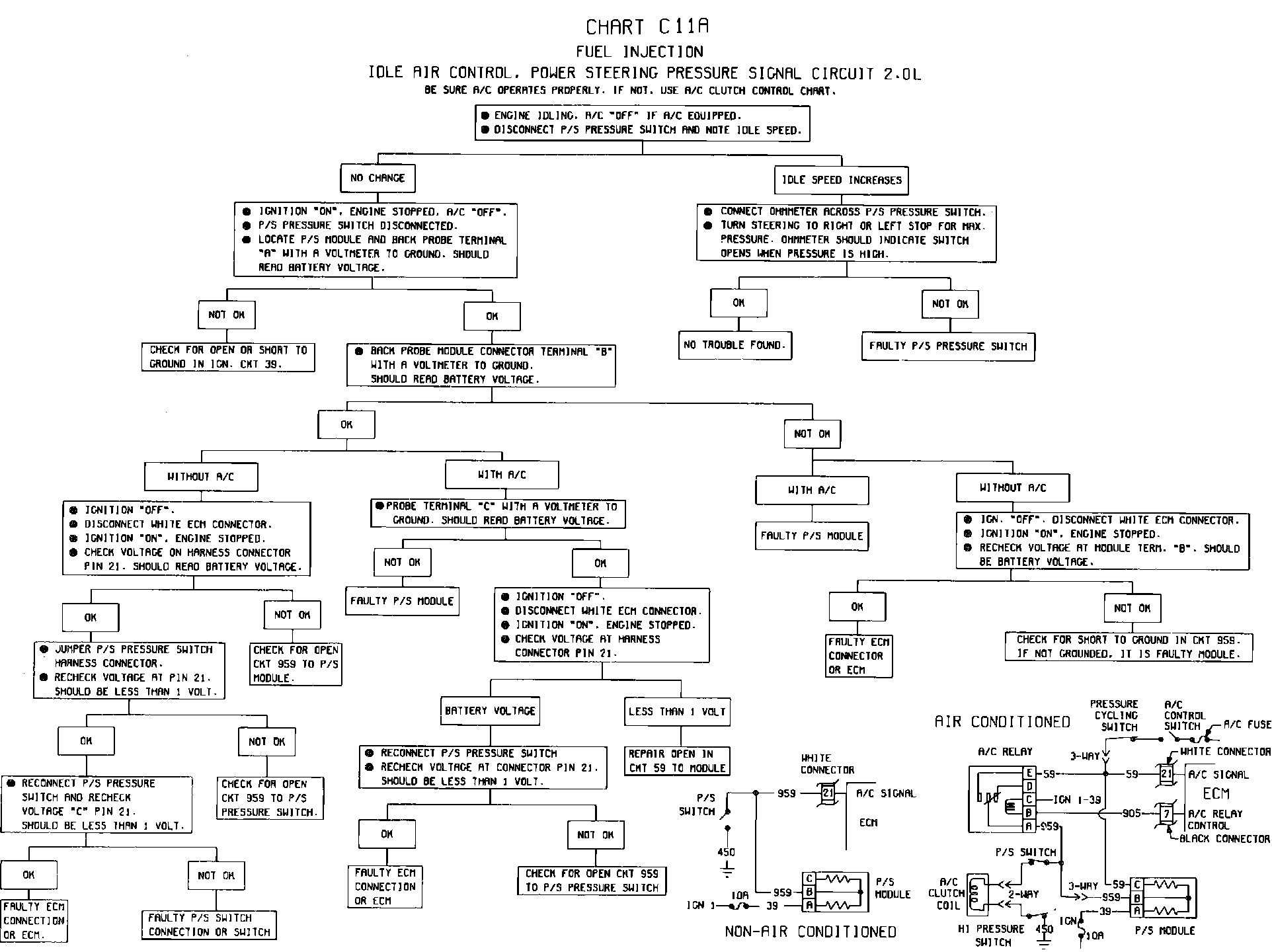

Fig. 42 Chart C-11A Power Steering Pressure Signal 1983:
