Home >> Chevrolet >> 1983 >> Caprice V6-231 3.8L VIN A 2-bbl >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Carburetor

Carburetor

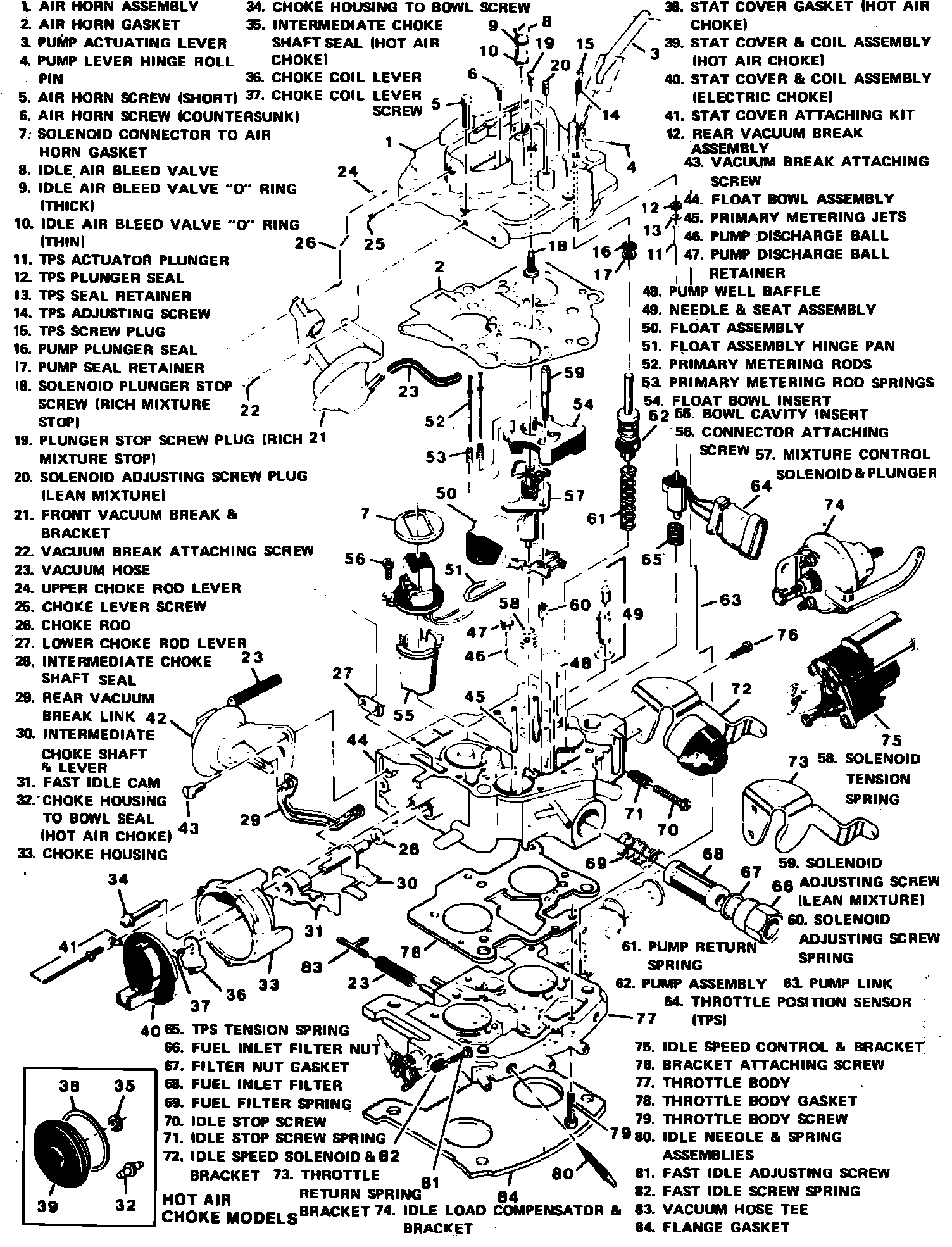

Fig. 3 Typical exploded view of Rochester model E2M series carburetor:
