Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Drive Axles, Bearings and Joints >> Axle Shaft Assembly >> Constant Velocity Joint >> Service and Repair >> Front Wheel Drive Shaft Outer Joint and Boot Replacement

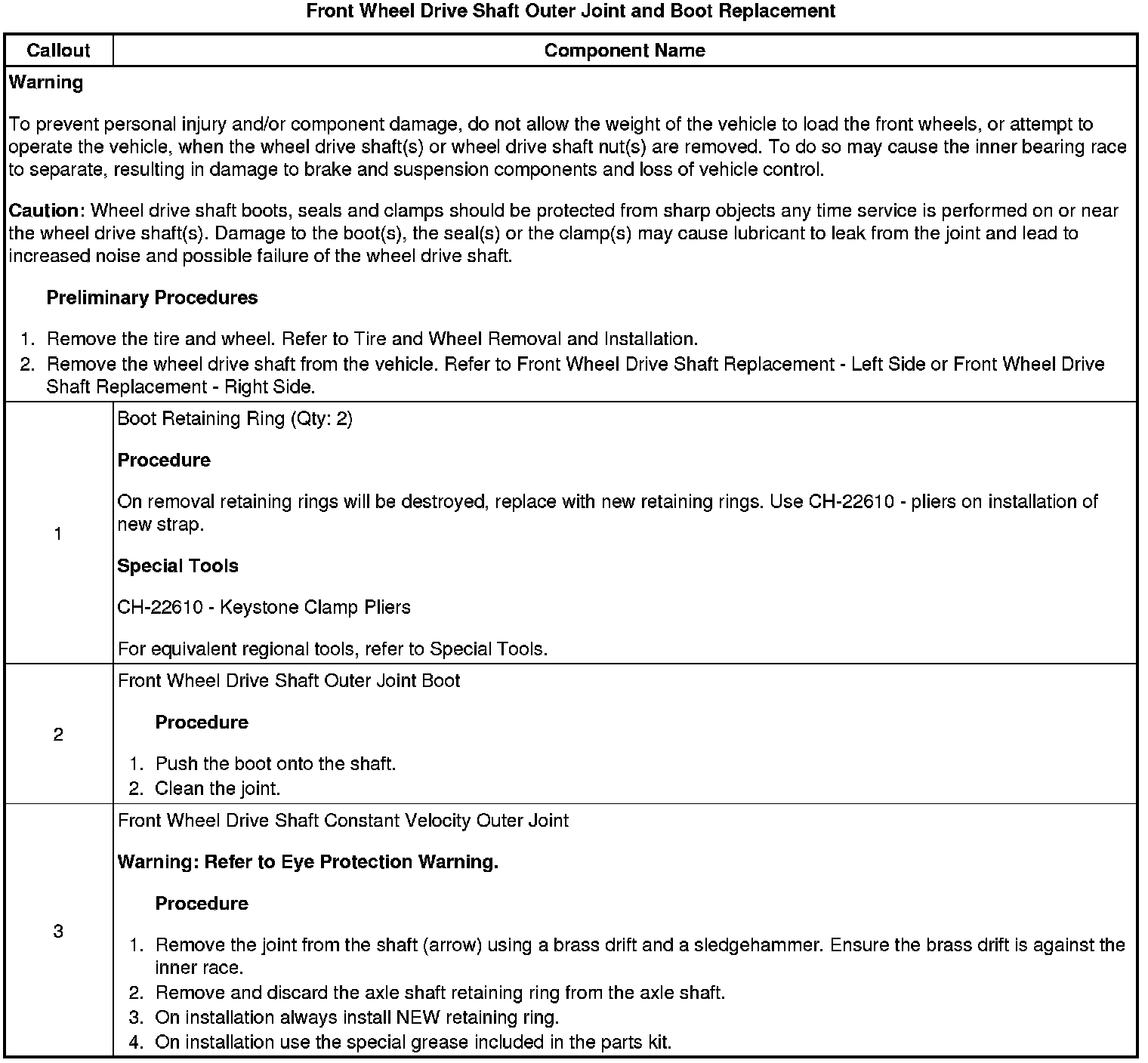

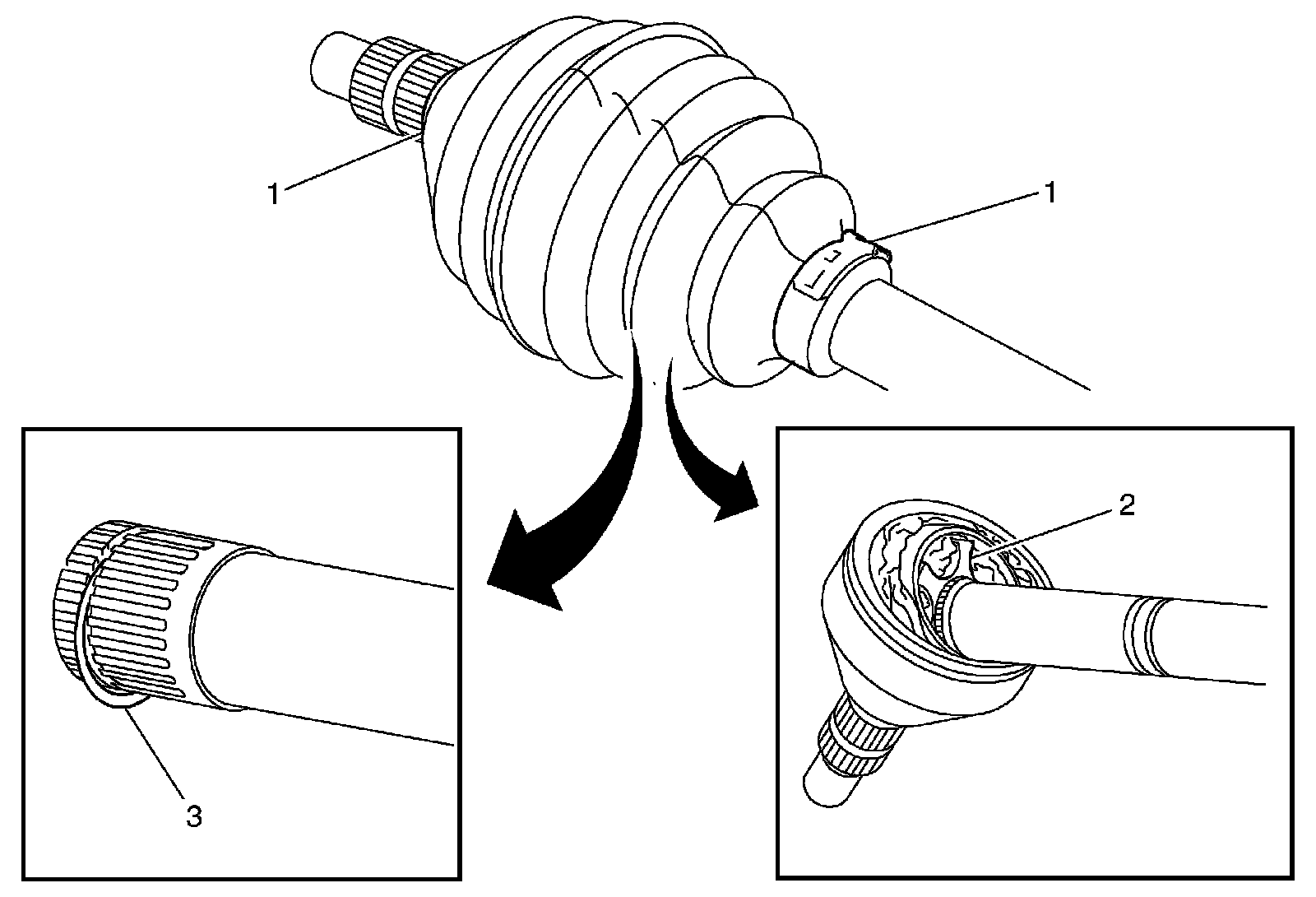

Front Wheel Drive Shaft Outer Joint and Boot Replacement




Front Wheel Drive Shaft Outer Joint and Boot Replacement
