Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Control Arm >> Service and Repair >> Front Suspension >> Lower Control Arm Replacement (GNA)

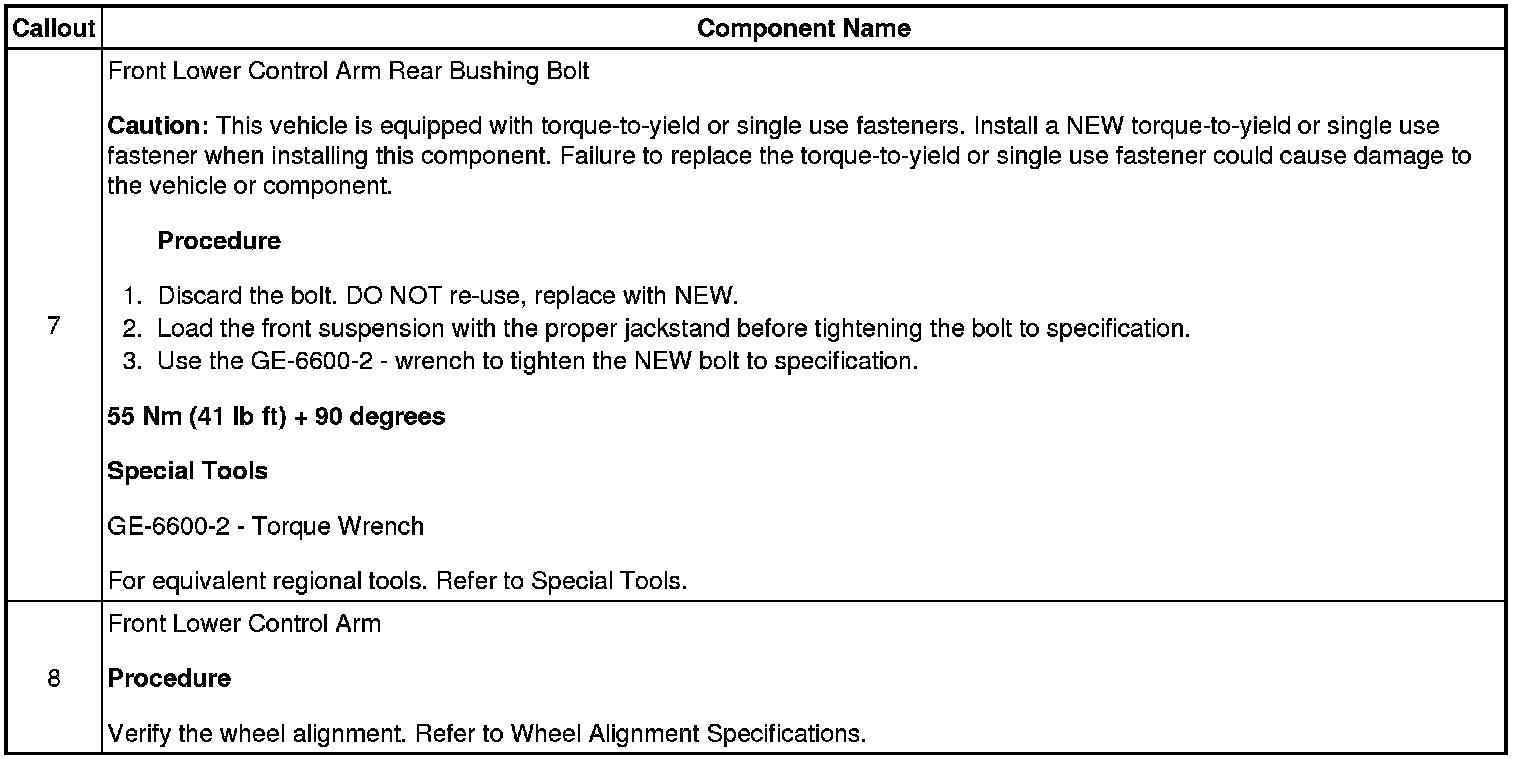

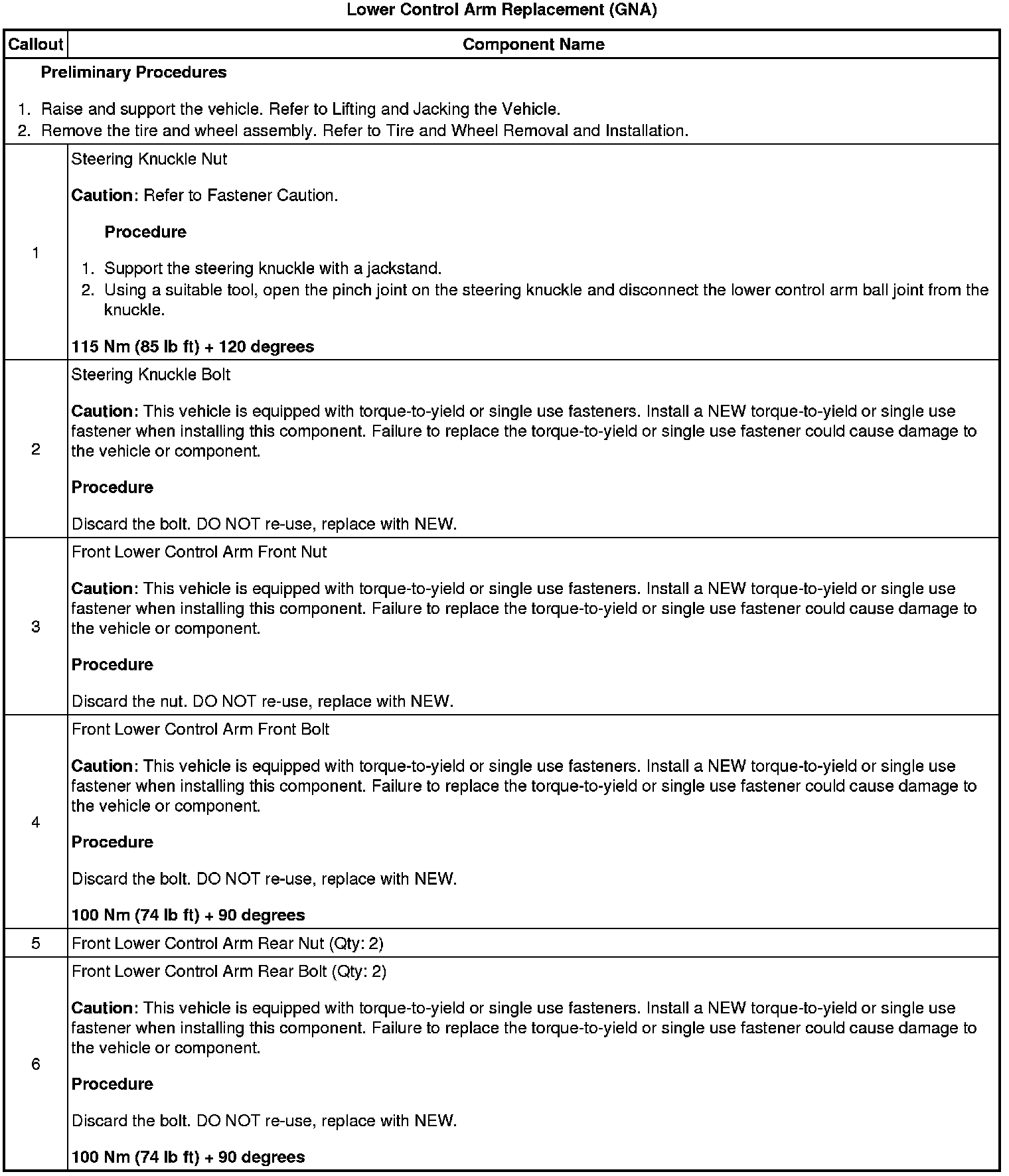

Lower Control Arm Replacement (GNA)




Lower Control Arm Replacement (GNA)
