Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Control Arm >> Control Arm Bushing >> Service and Repair >> Front Lower Control Arm Rear Bushing Replacement (GNB)

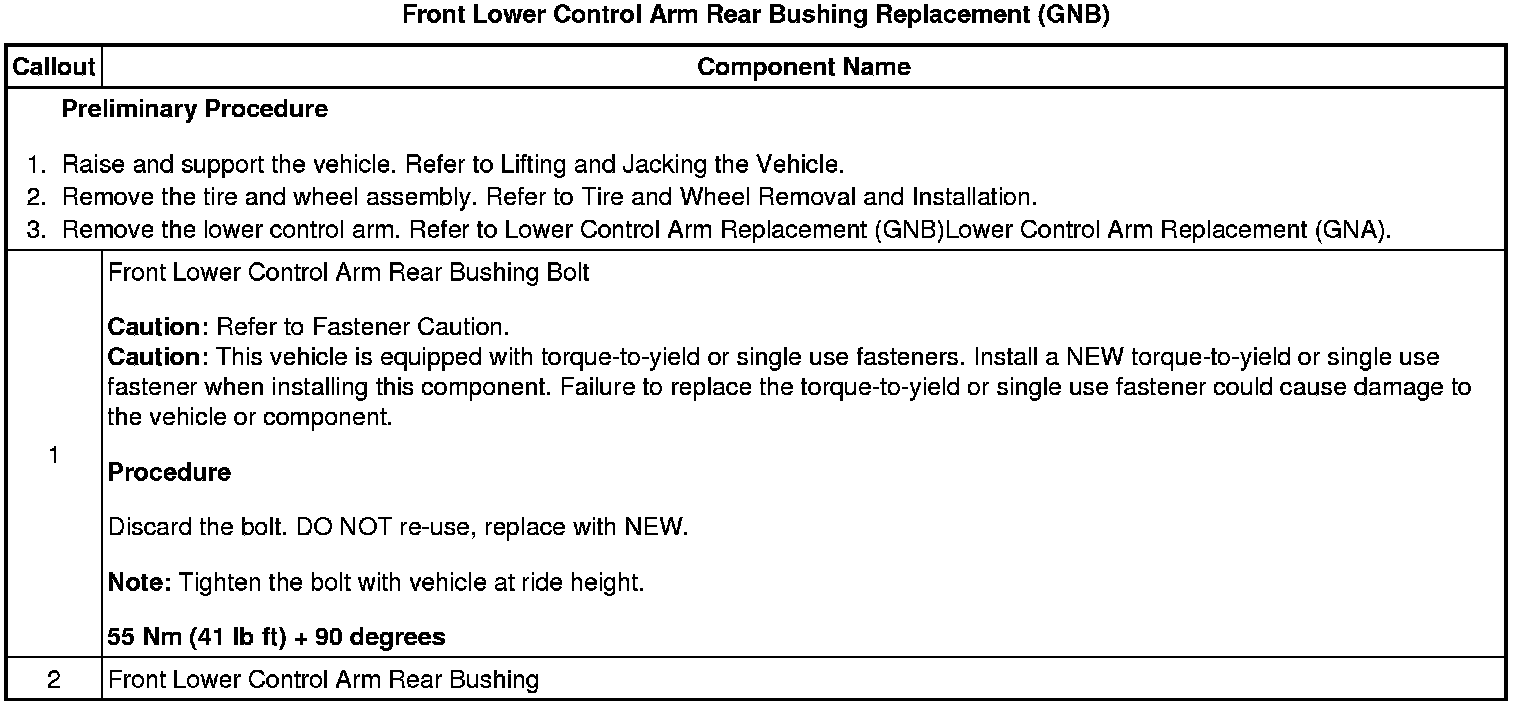

Front Lower Control Arm Rear Bushing Replacement (GNB)




Front Lower Control Arm Rear Bushing Replacement (GNB)
