Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X400 - X499 >> X433

X433




Inline Harness Connector End Views

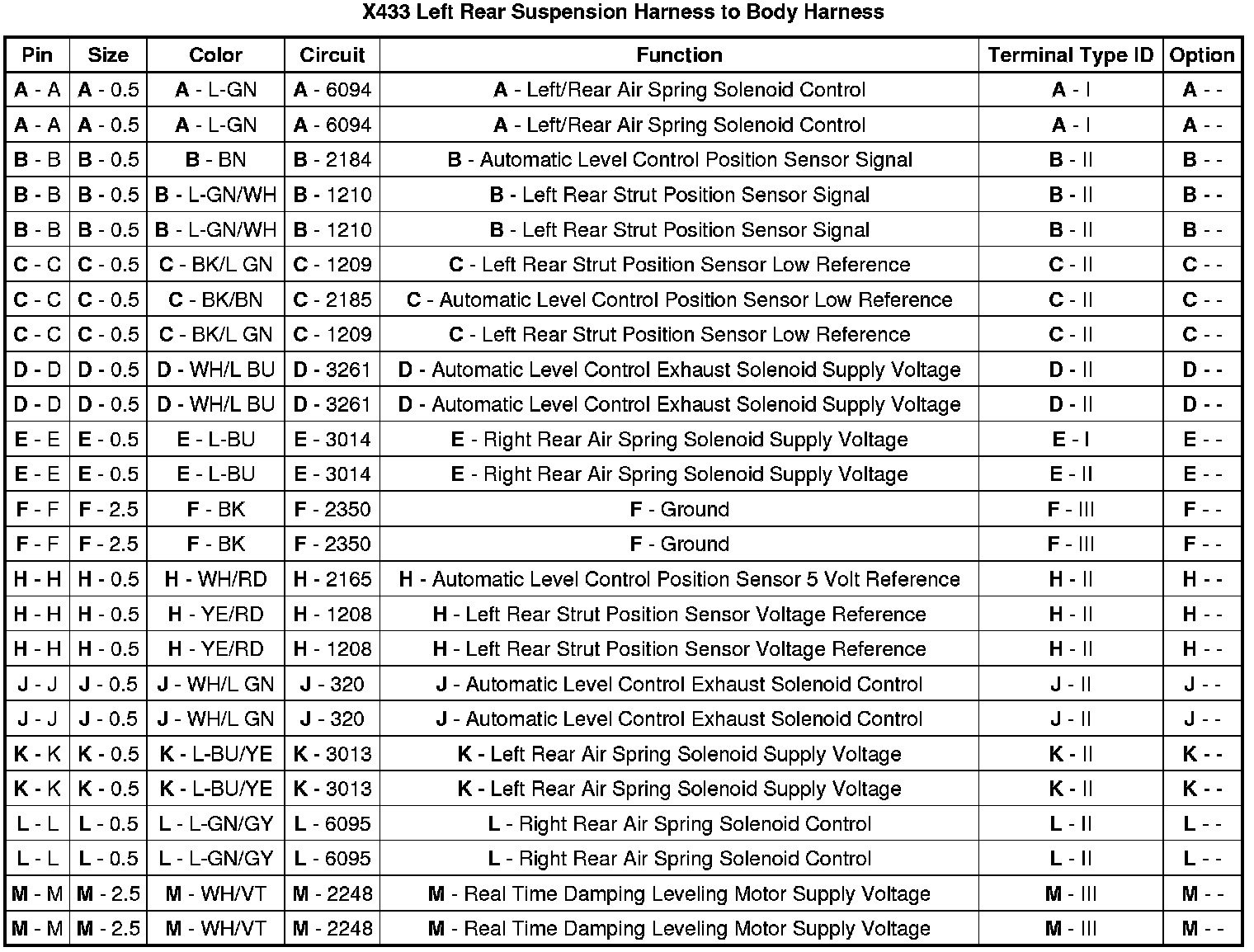

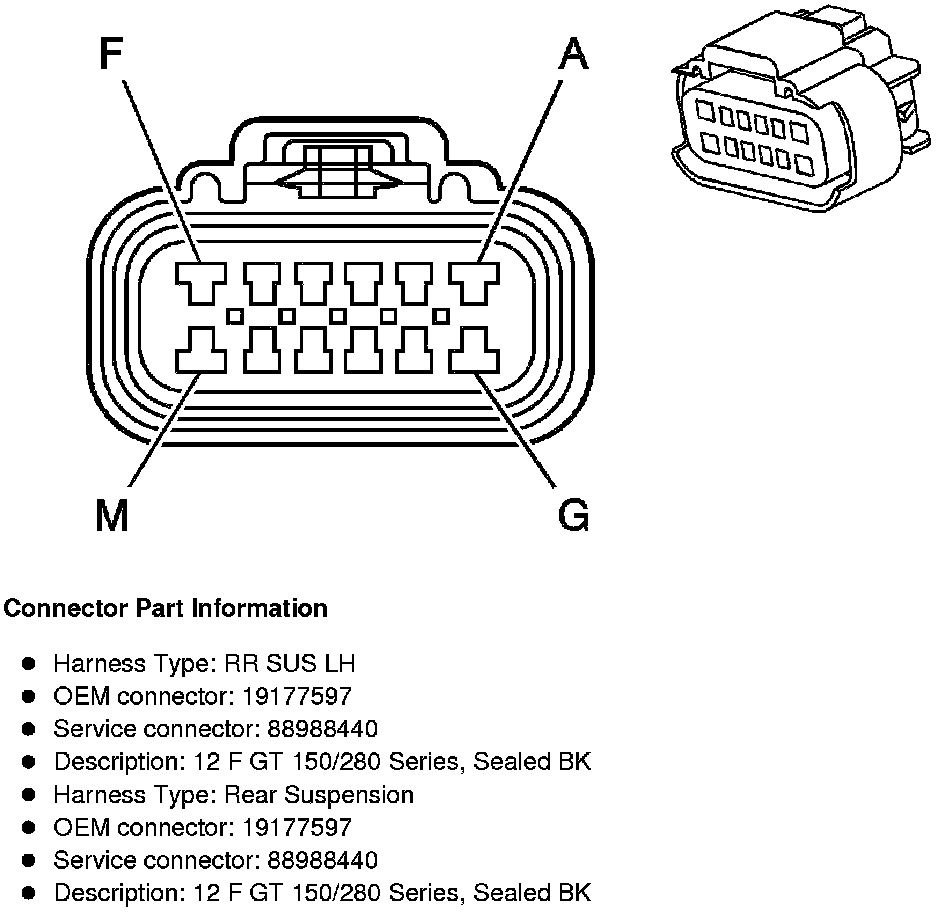

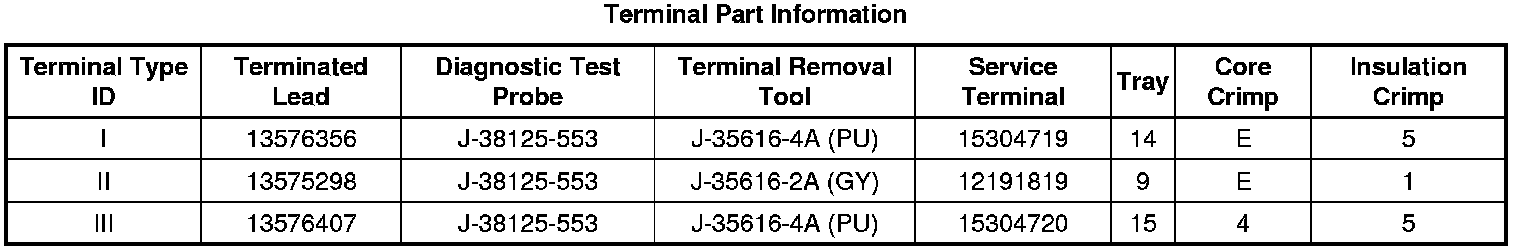

X433 Left Rear Suspension Harness to Body Harness
