X313

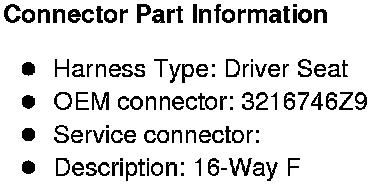

Inline Harness Connector End Views

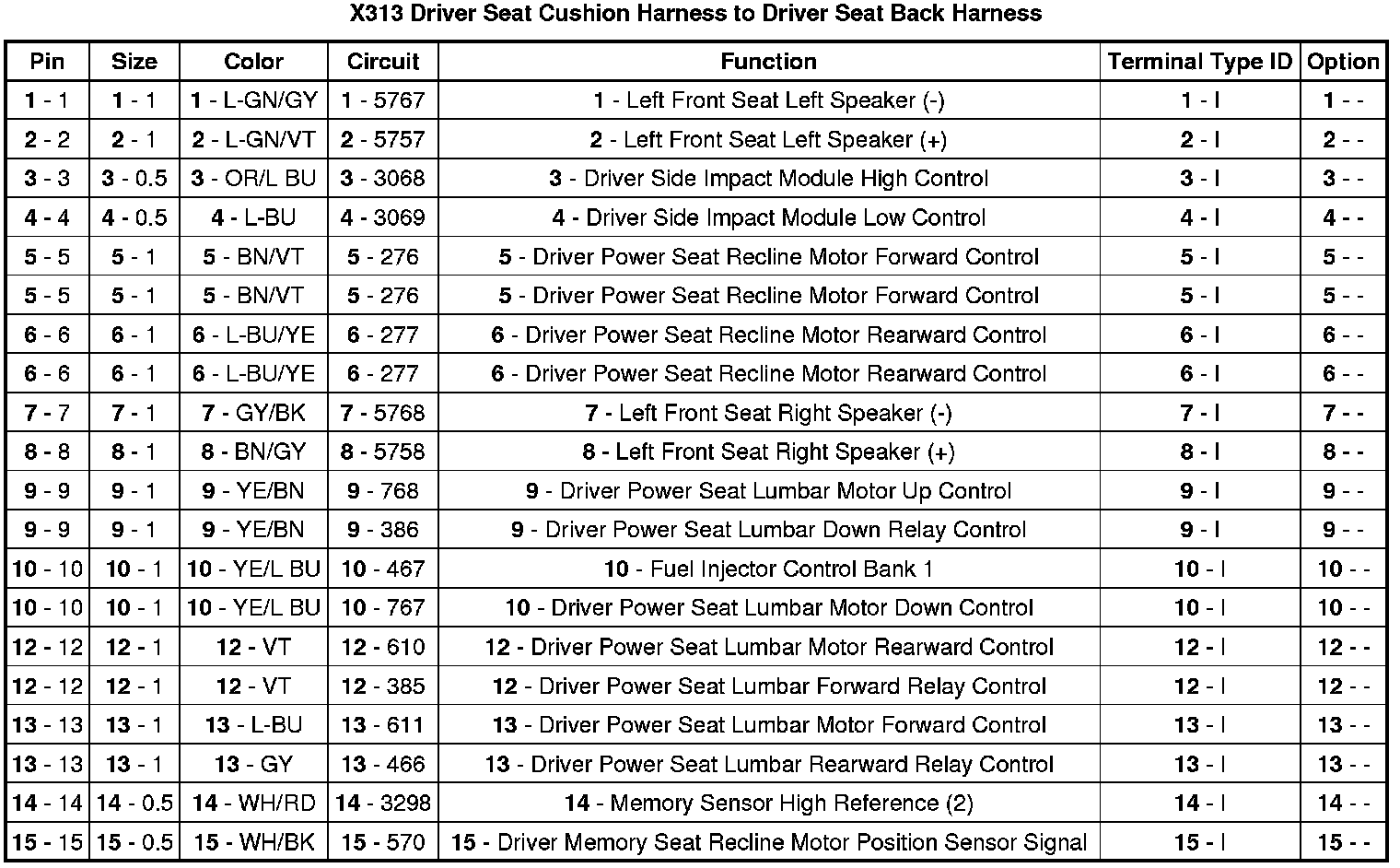

X313 Driver Seat Cushion Harness to Driver Seat Back Harness
