Home >> Cadillac >> 2013 >> XTS AWD V6-3.6L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Multiple Junction Connector >> Diagrams >> Connector End Views By Number >> X100 - X199 >> X152

X152




Inline Harness Connector End Views

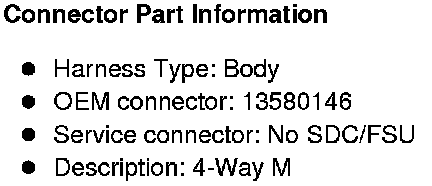

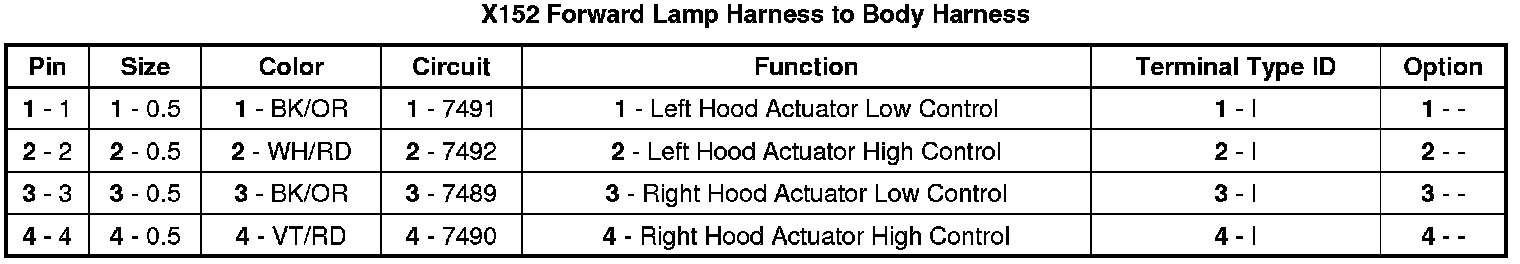

X152 Forward Lamp Harness to Body Harness
